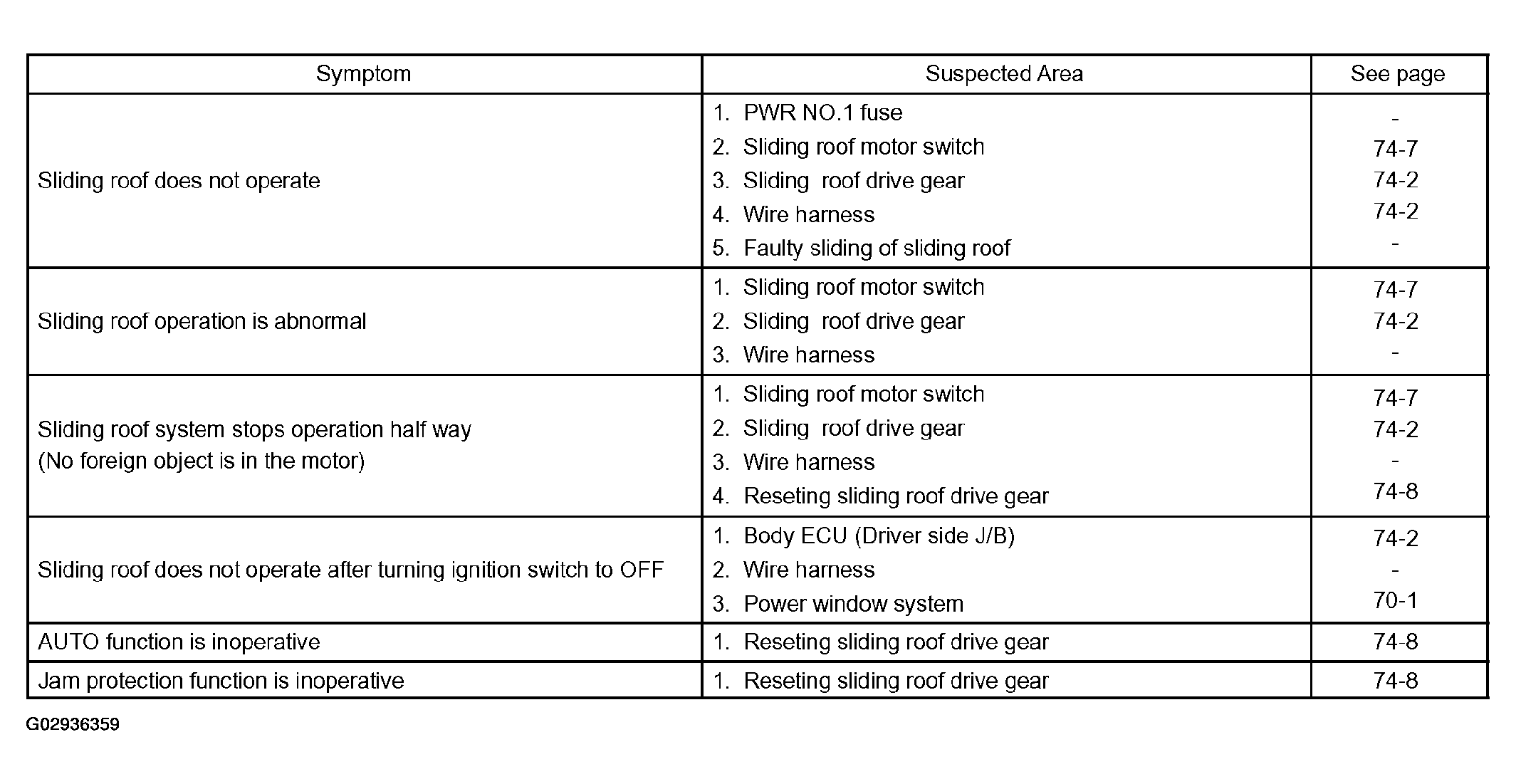

SLIDING ROOF SYSTEM - PROBLEM SYMPTOMS TABLE

Symptom Suspected Area Refer To
Sliding roof does not operate
  1. PWR NO.1 fuse
  2. Sliding roof motor switch
  3. Sliding roof drive gear
  4. Wire harness
  5. Faulty sliding of sliding roof
Sliding roof operation is abnormal
  1. Sliding roof motor switch
  2. Sliding roof drive gear
  3. Wire harness
Sliding roof system stops operation halfway (No foreign object is in the motor)
  1. Sliding roof motor switch
  2. Sliding roof drive gear
  3. Wire harness
  4. Reseting sliding roof drive gear
Sliding roof does not operate after turning ignition switch to OFF
  1. Body ECU (Driver side J/B)
  2. Wire harness
  3. Power window system
AUTO function is inoperative
  1. Reseting sliding roof drive gear
Jam protection function is inoperative
  1. Reseting sliding roof drive gear
