Power Mirror Control System: Location

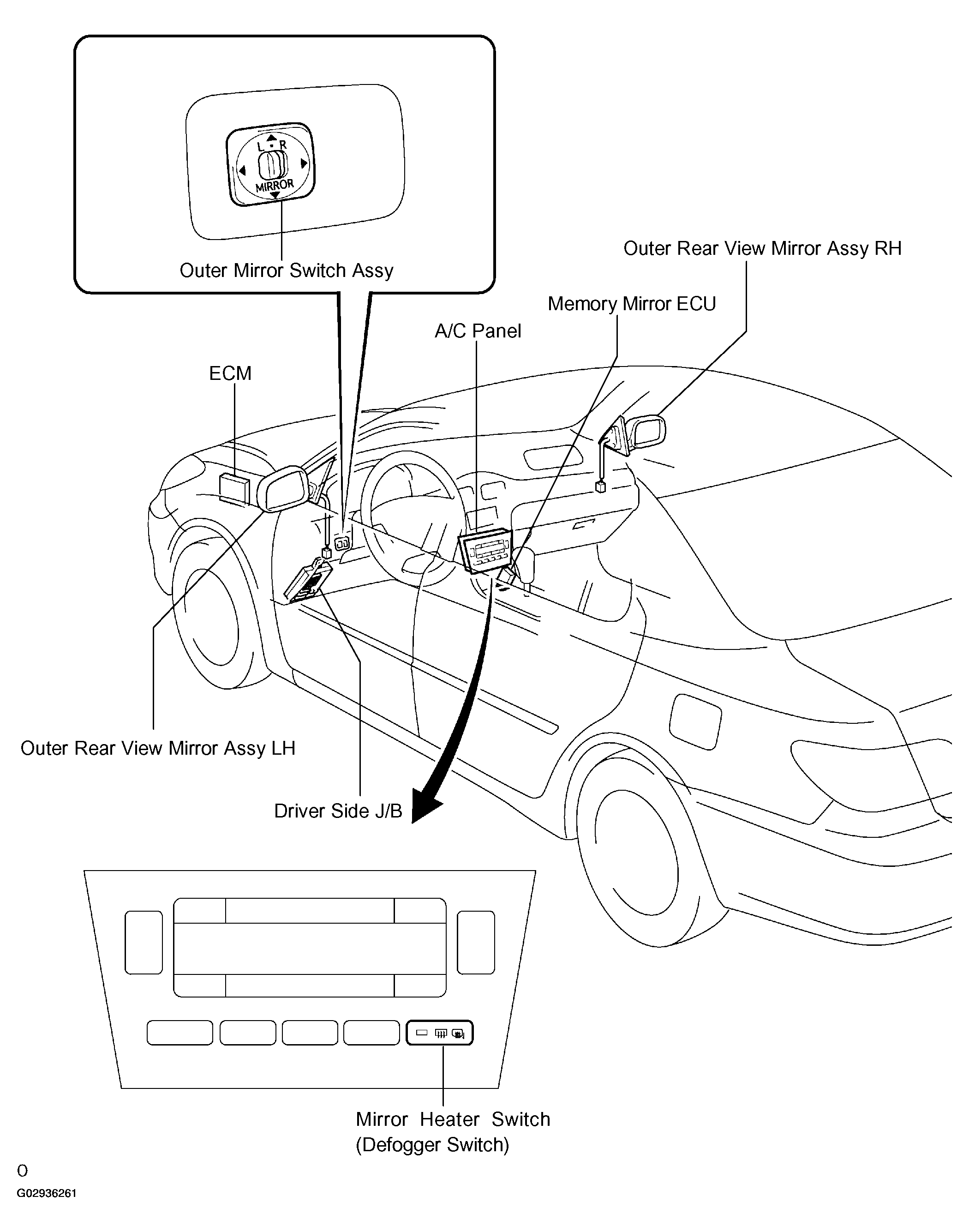

Fig 1: Identifying Power Mirror Control System Components

G02936261

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
