Terminals Of Ecu

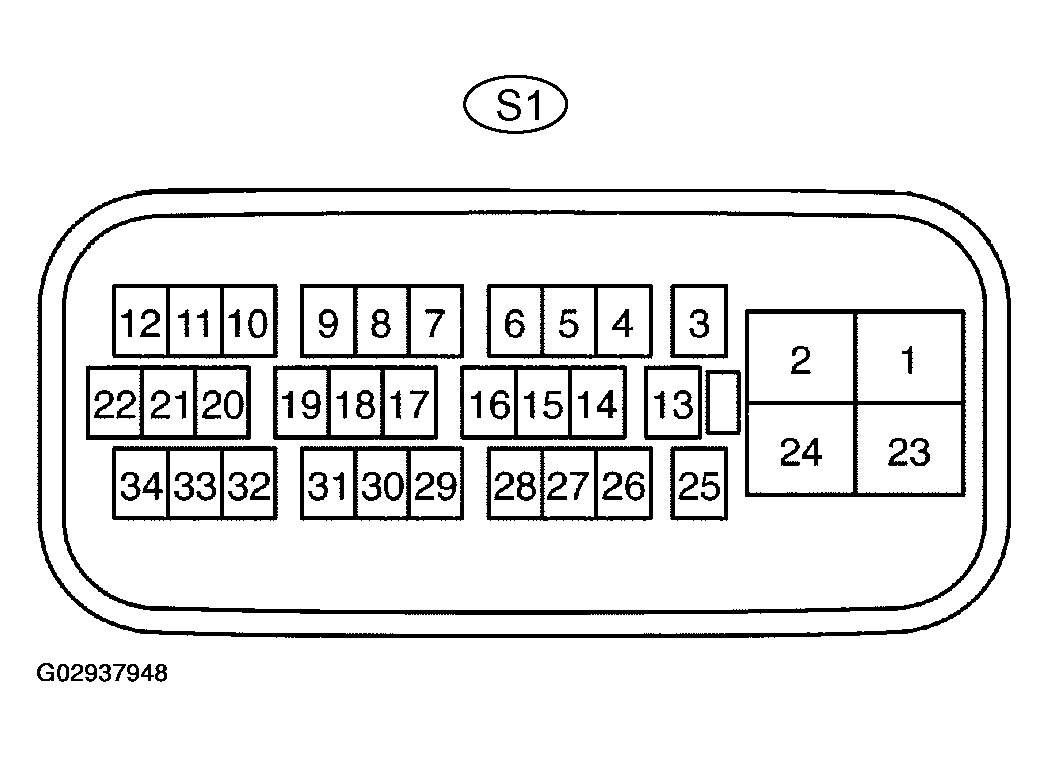

Fig 1: Identifying ECU Terminals
G02937948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

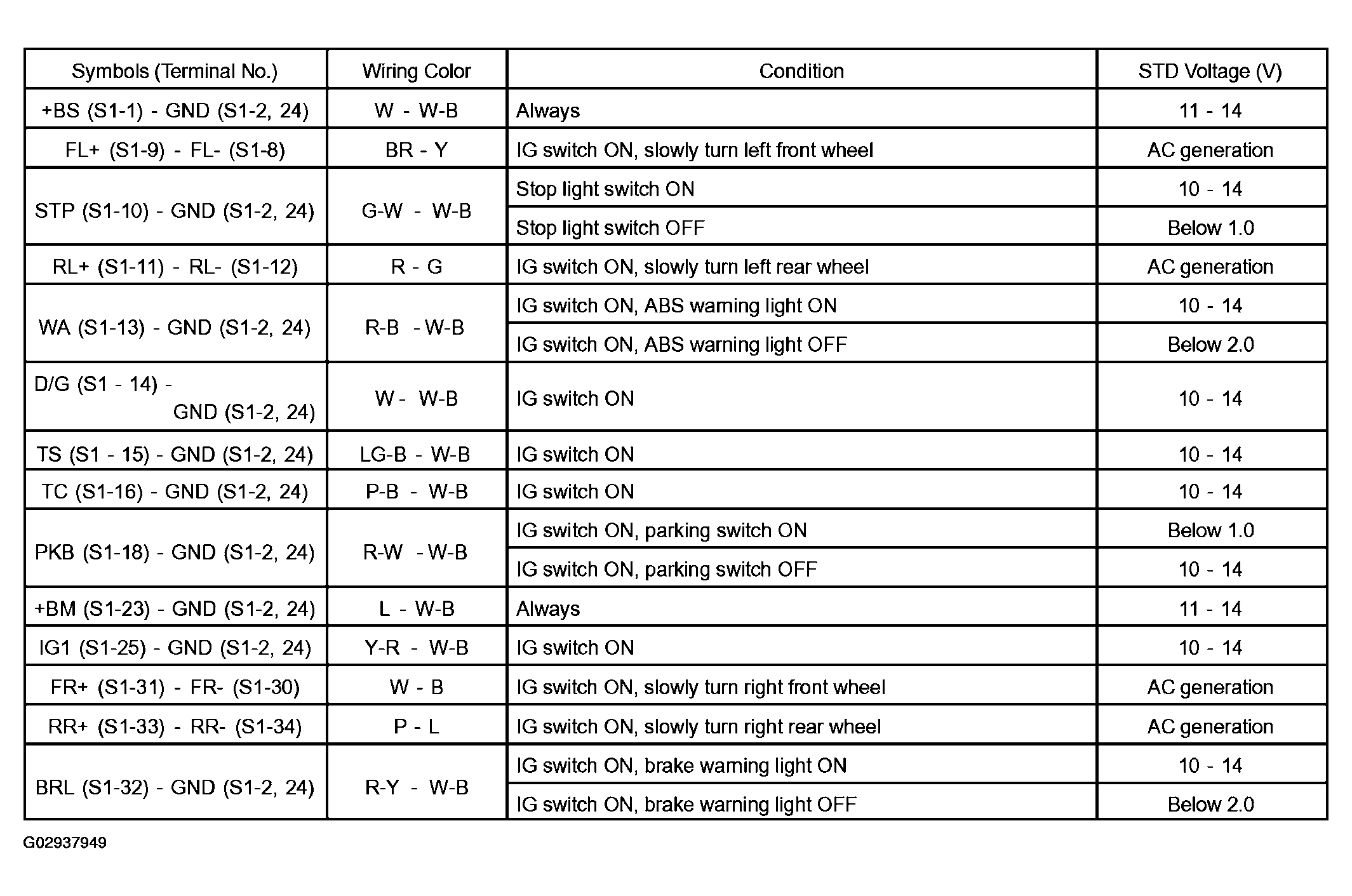

Fig 2: ECU Terminals Voltage Specifications
G02937949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
