Combination Meter - Diagnostics: Location

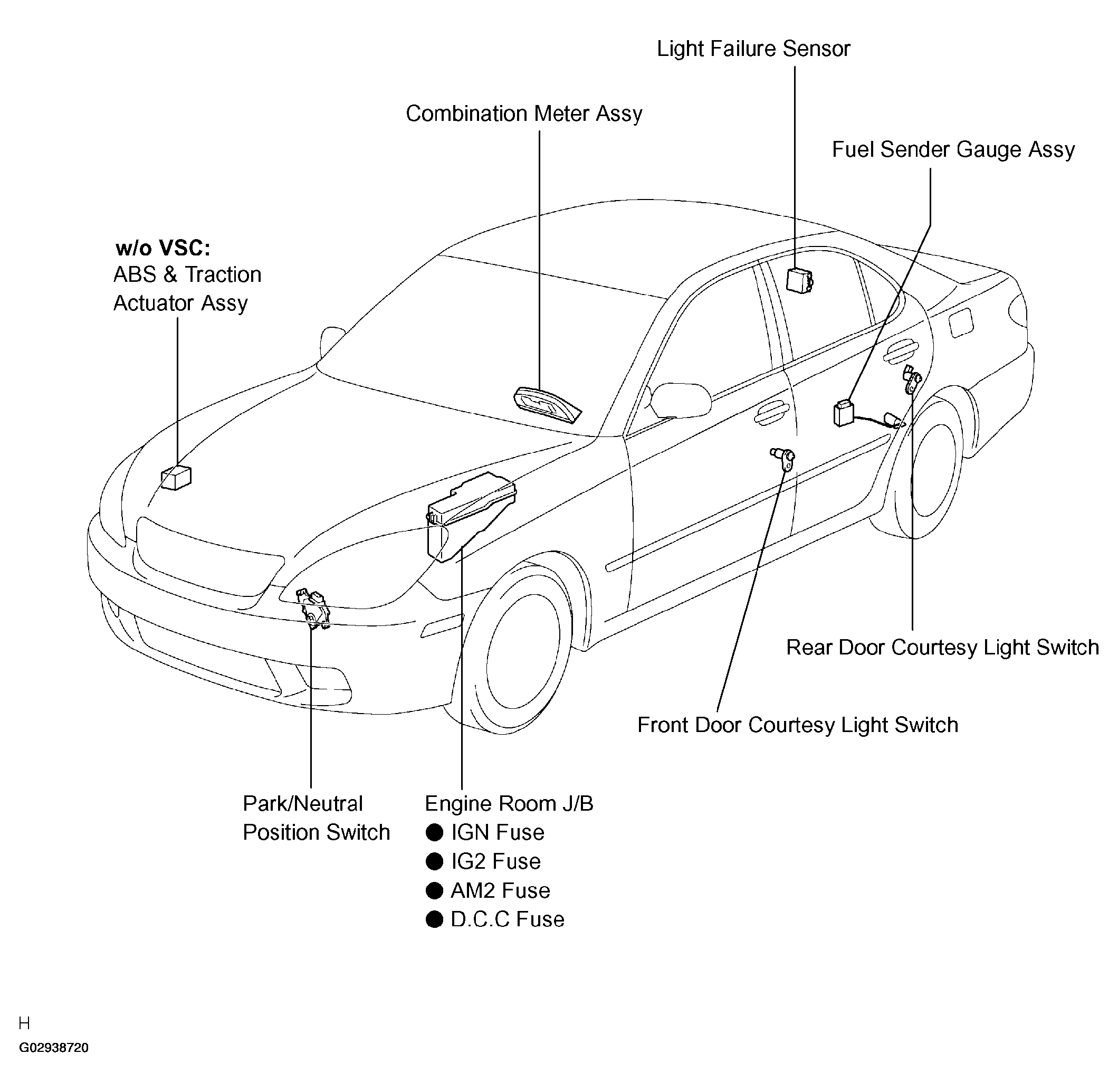

Fig 1: Locating Combination Meter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

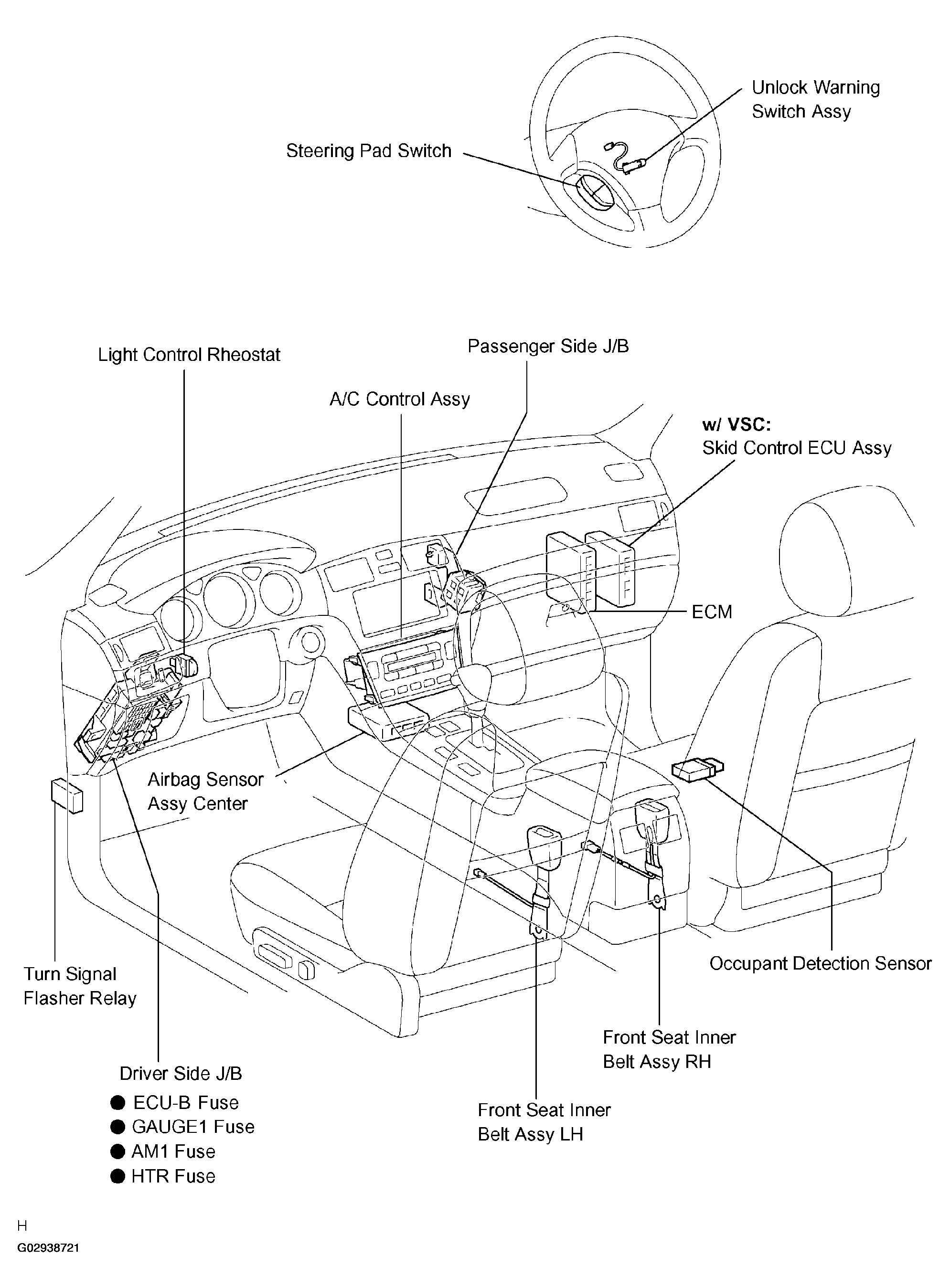

Fig 2: Locating Combination Meter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

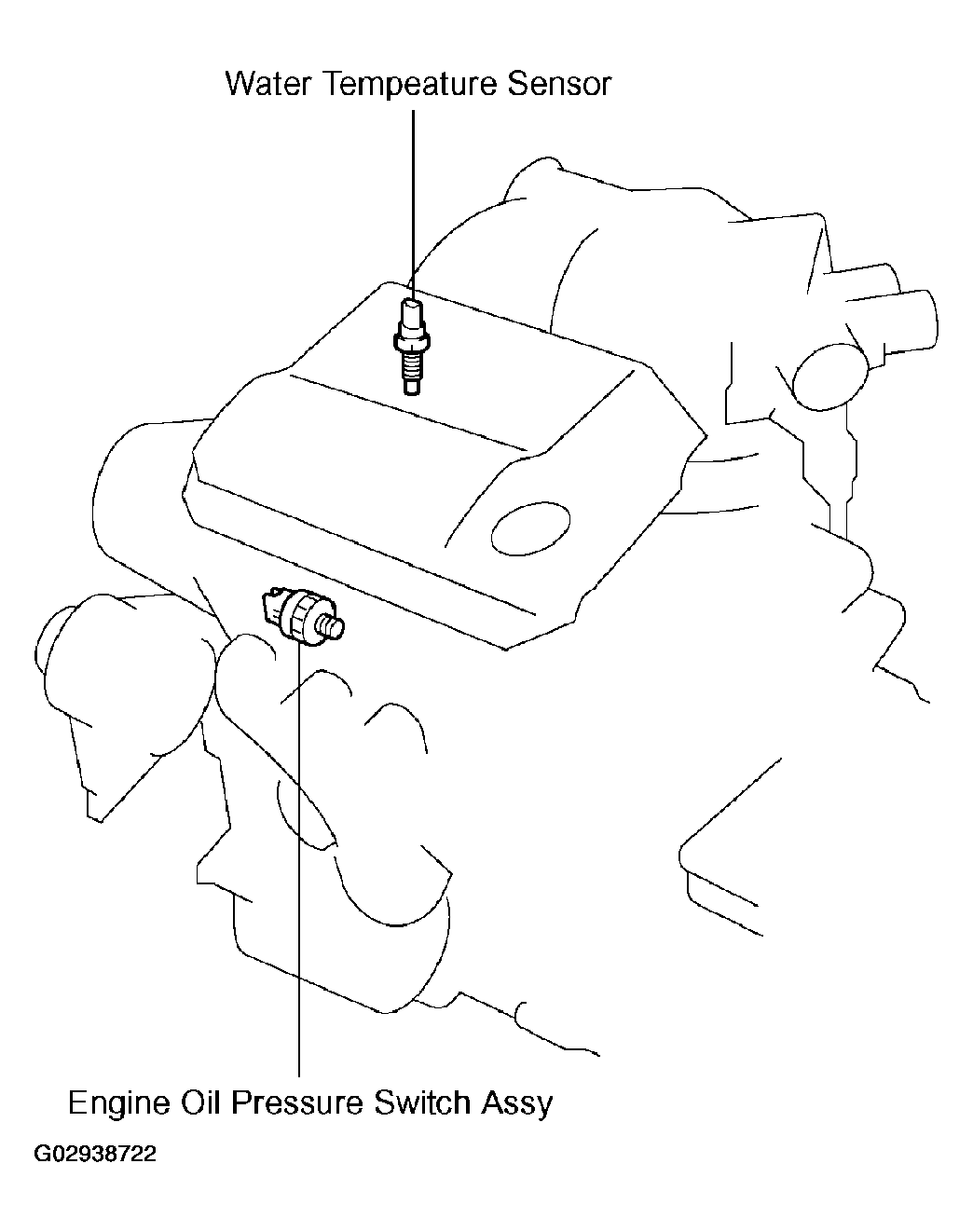

Fig 3: Identifying Water Temperature Sensor & Engine Oil Pressure Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

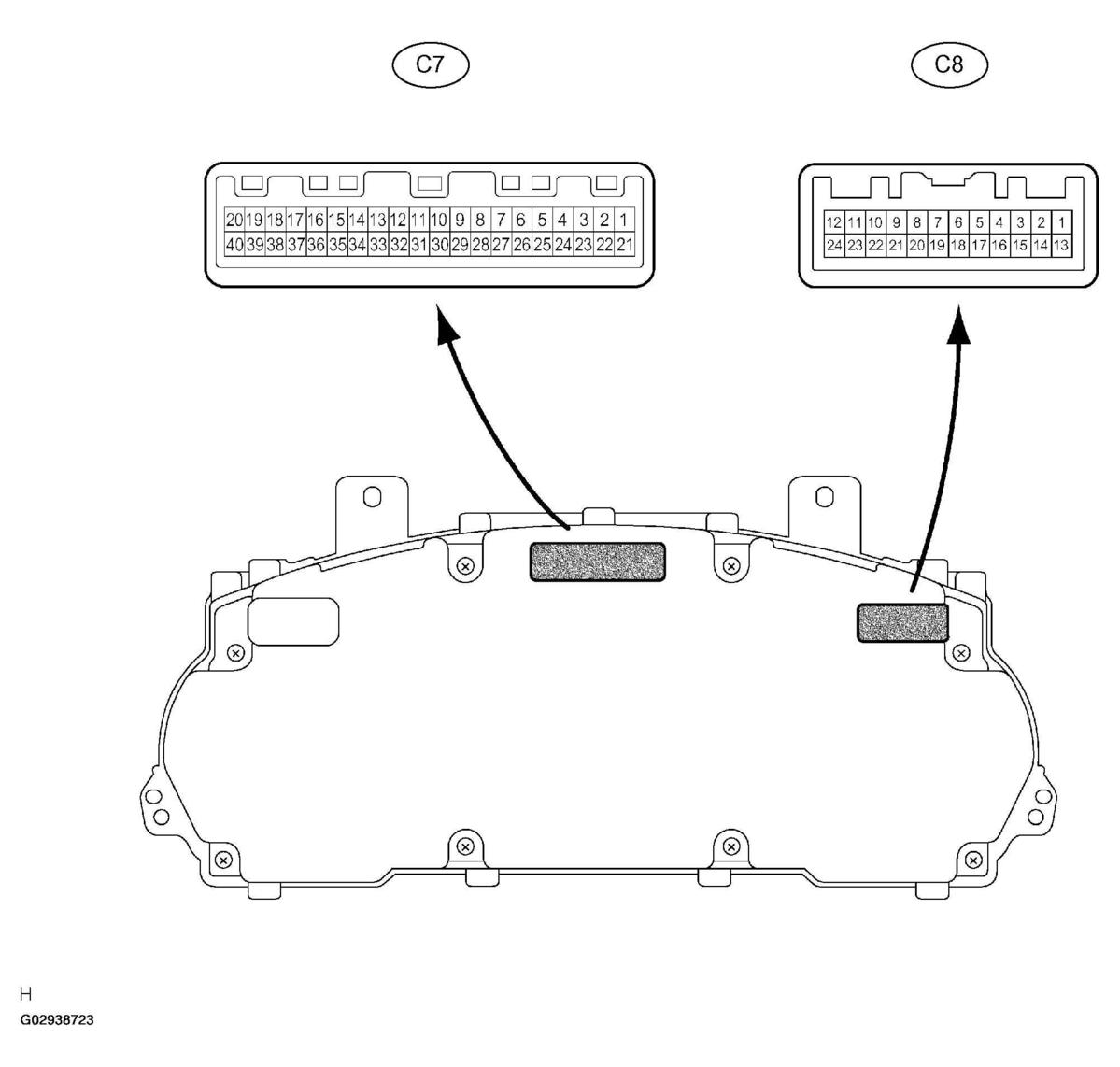

Fig 4: Identifying Combination Meter Connectors Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

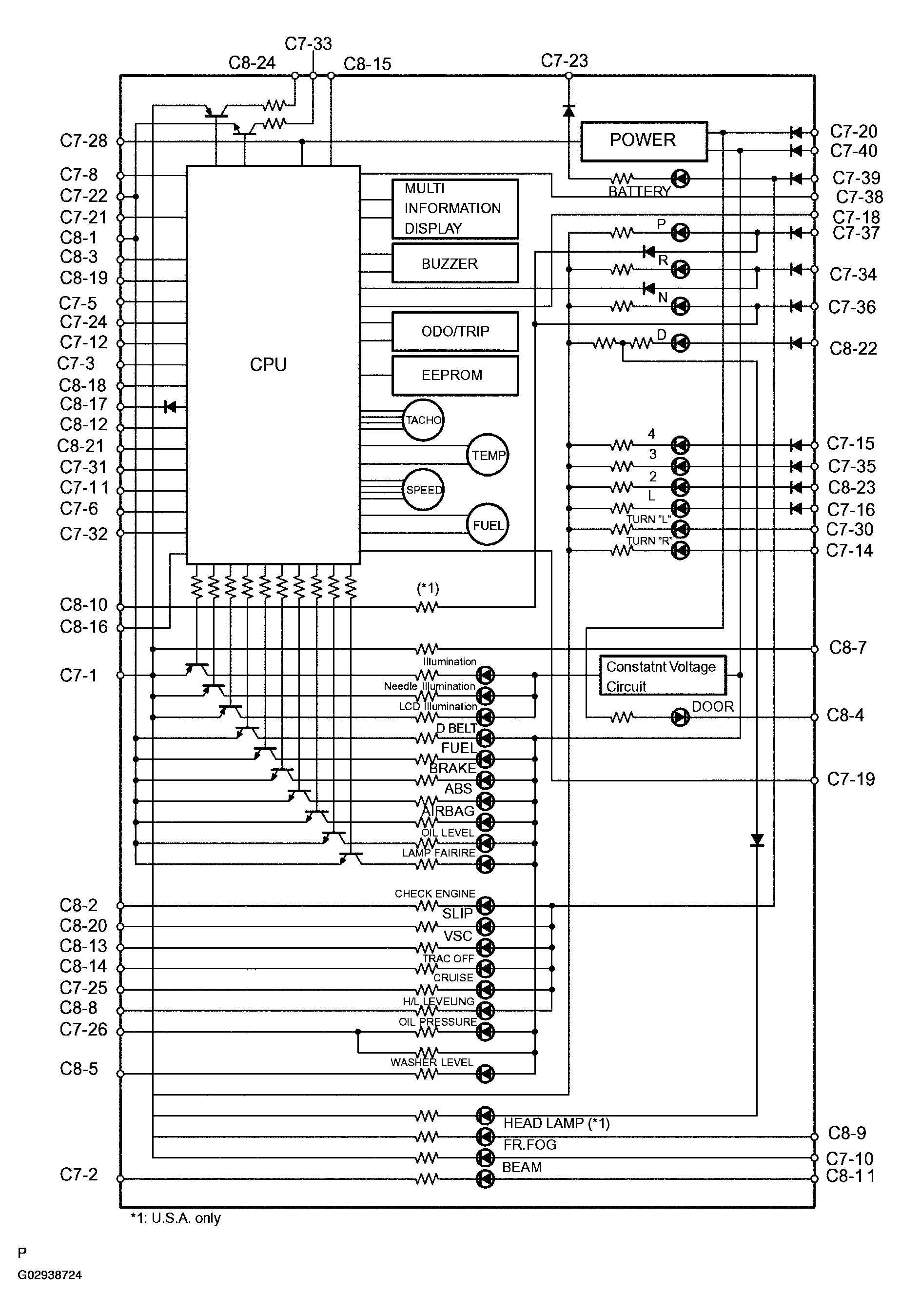

Fig 5: Combination Meter Connectors Terminals Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

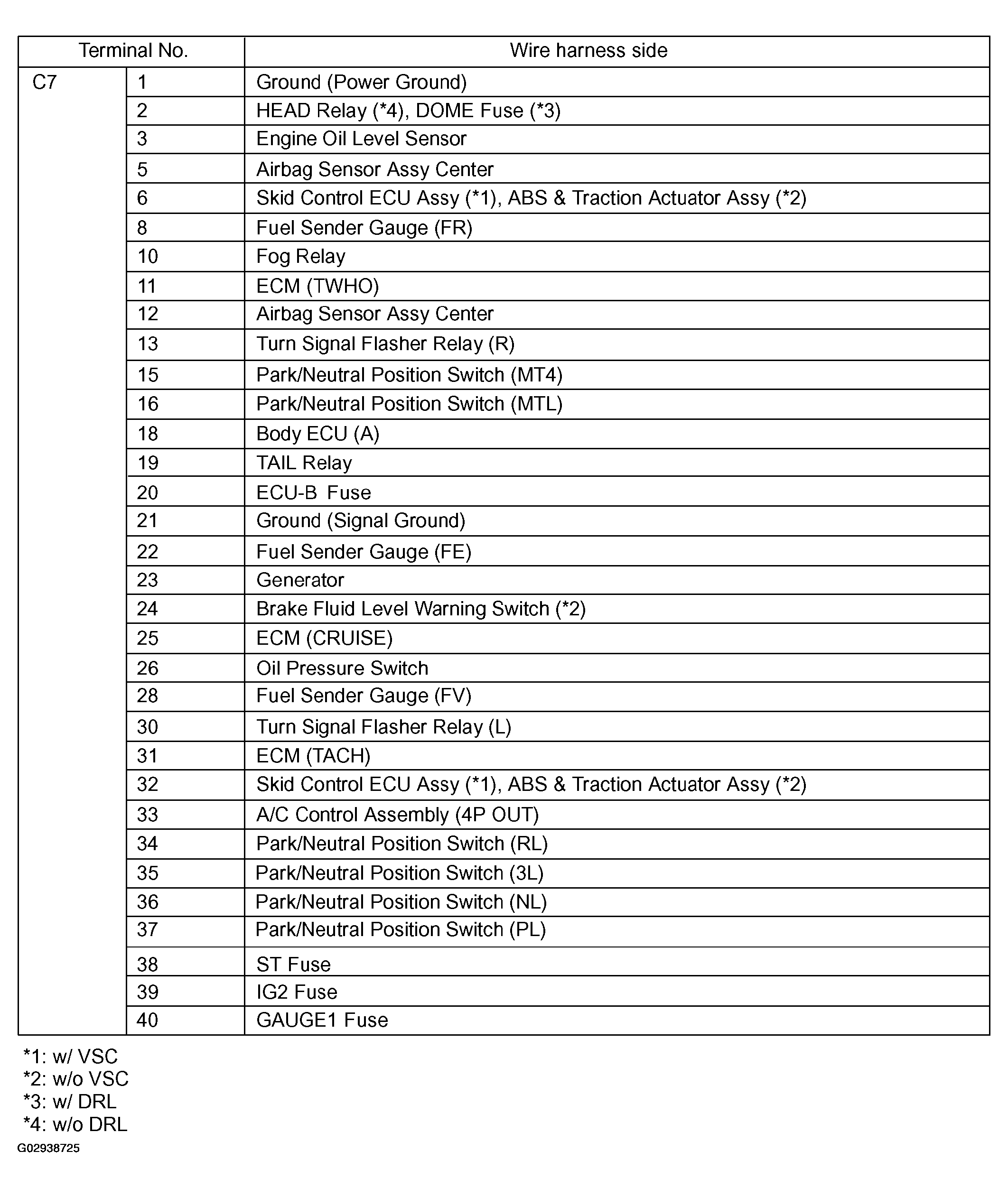

Fig 6: Combination Meter C7 Connector Terminals Description Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

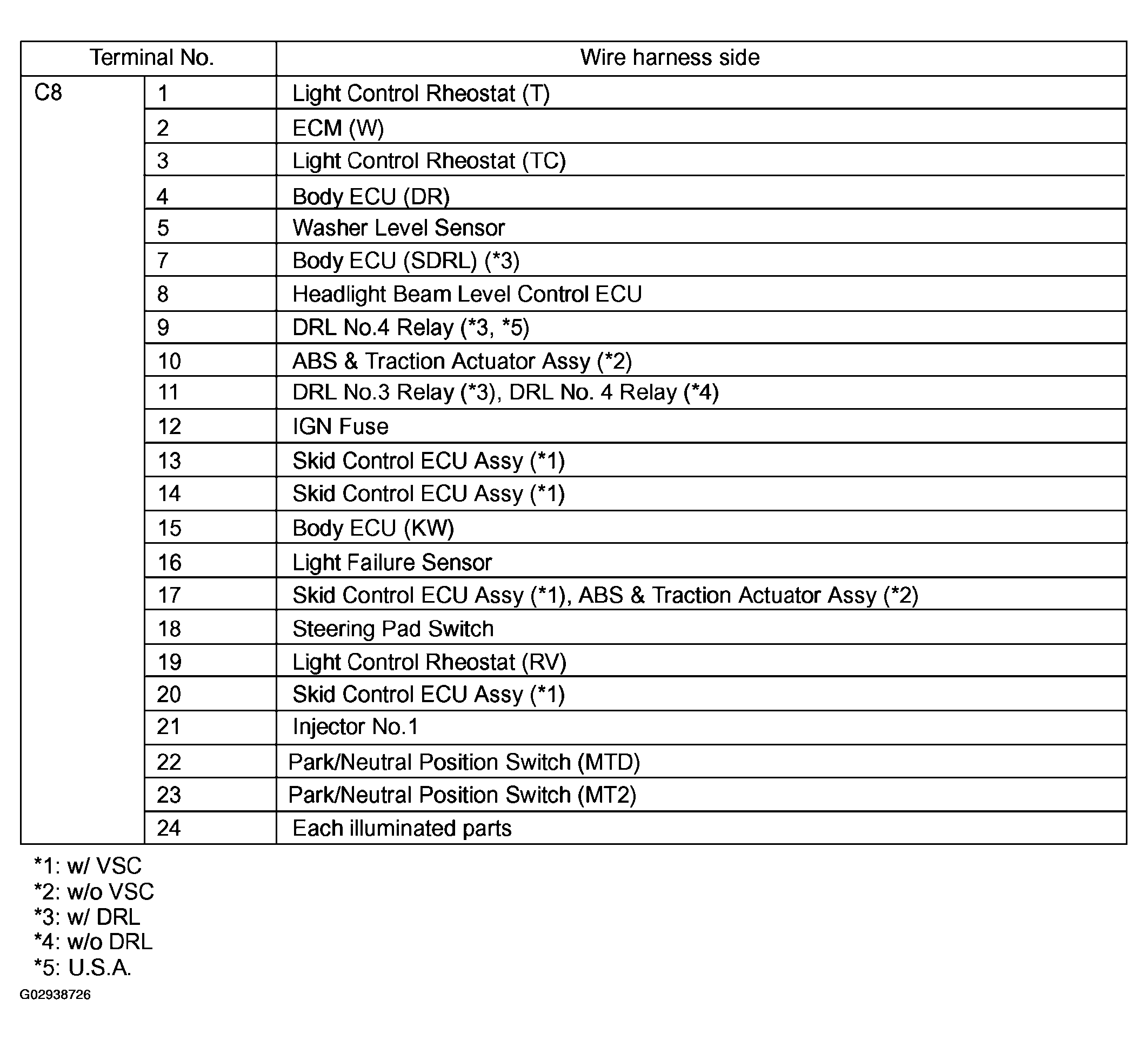

Fig 7: Combination Meter C8 Connector Terminals Description Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
