Generator ASSY (3MZ-FE): Components

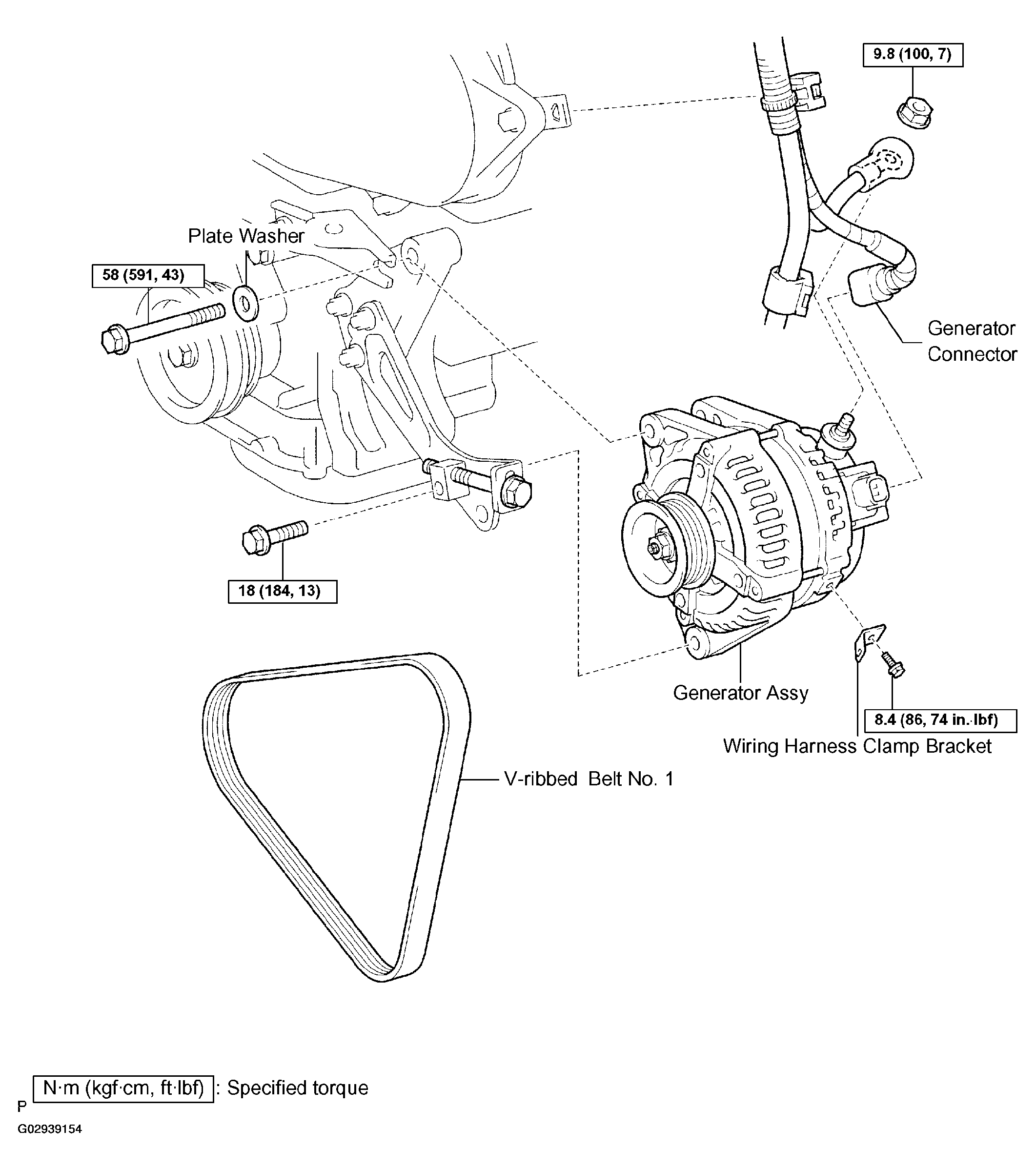

Fig 1: Identifying Generator Assy (3MZ - F3) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

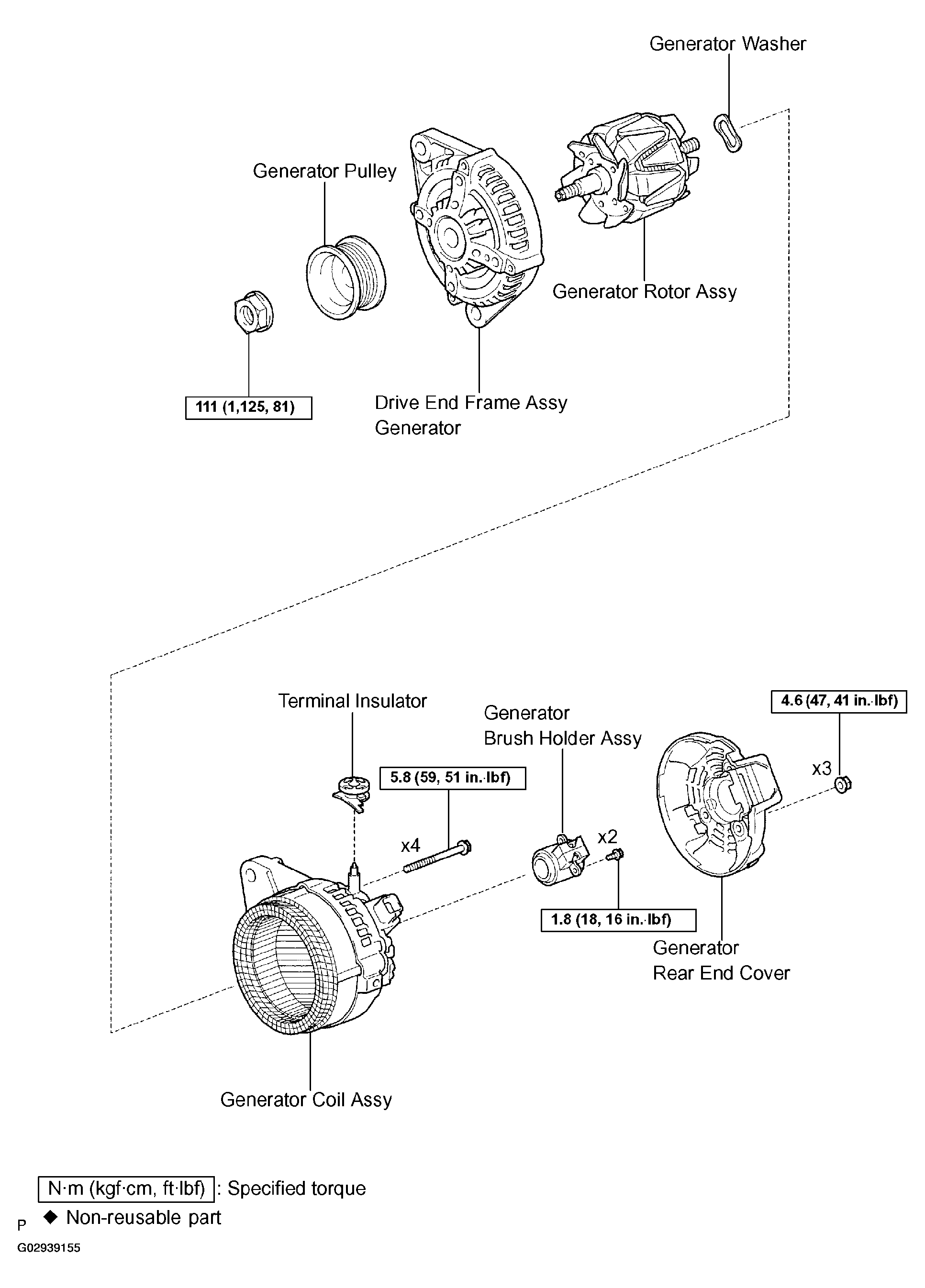

Fig 2: Identifying Generator Assy (3MZ - F3) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
