Engine Exhaust Assembly: Components

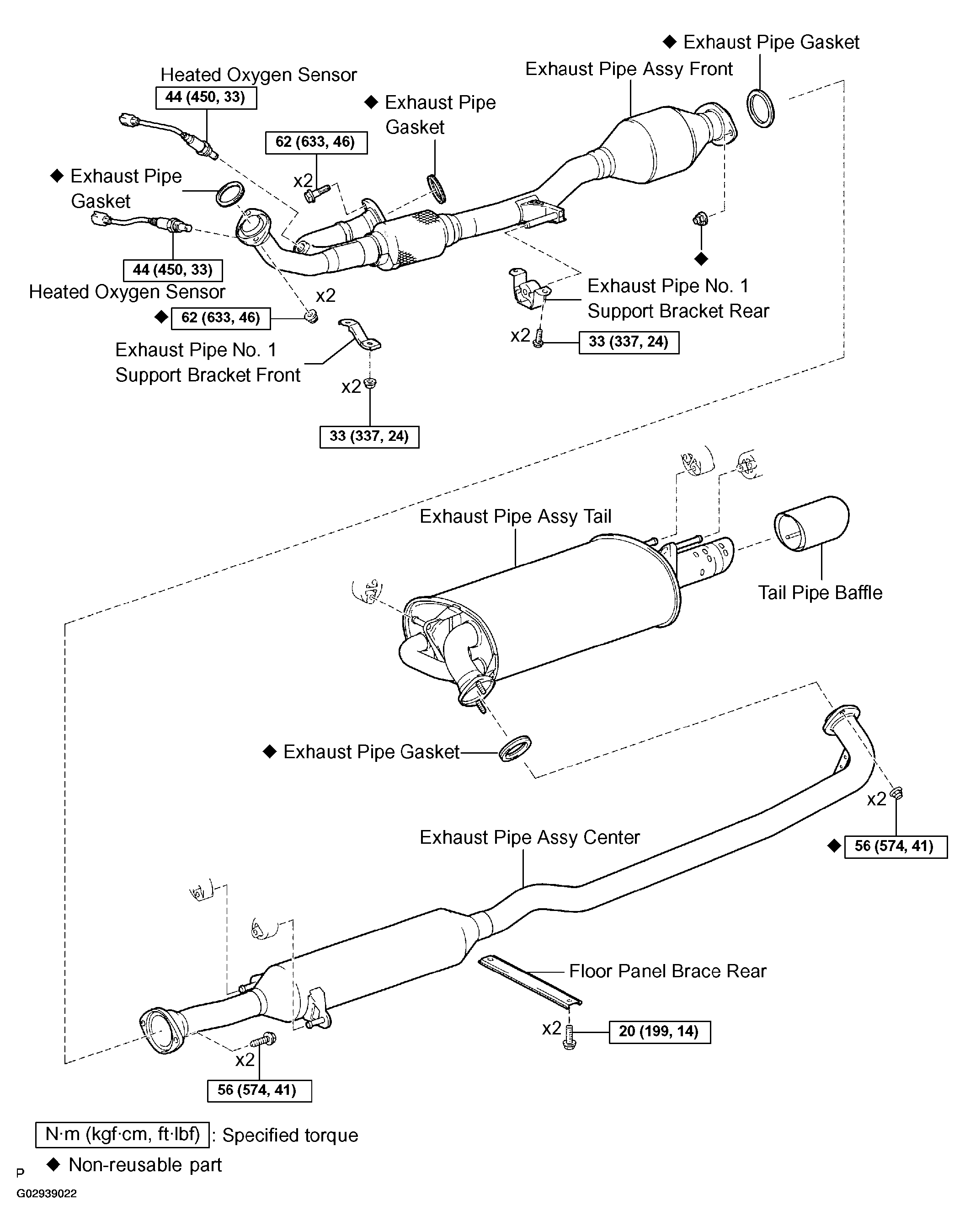

Fig 1: Identifying Exhaust Pipe Assembly Components
G02939022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
