Active Control Engine Mount: Wiring Diagram

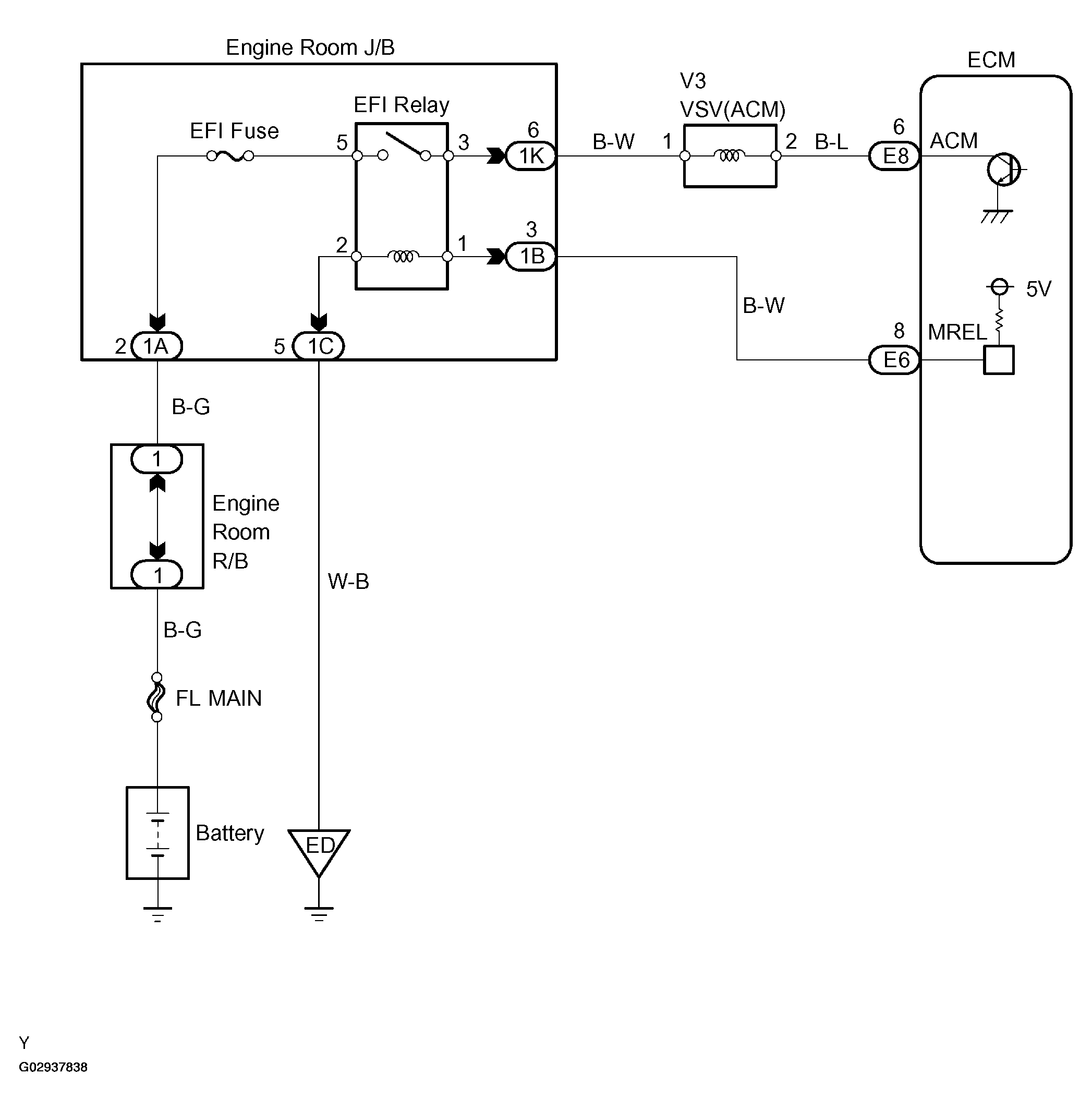

Fig 1: Wiring Diagram - ACM System
G02937838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
