Customer Problem Analysis Check

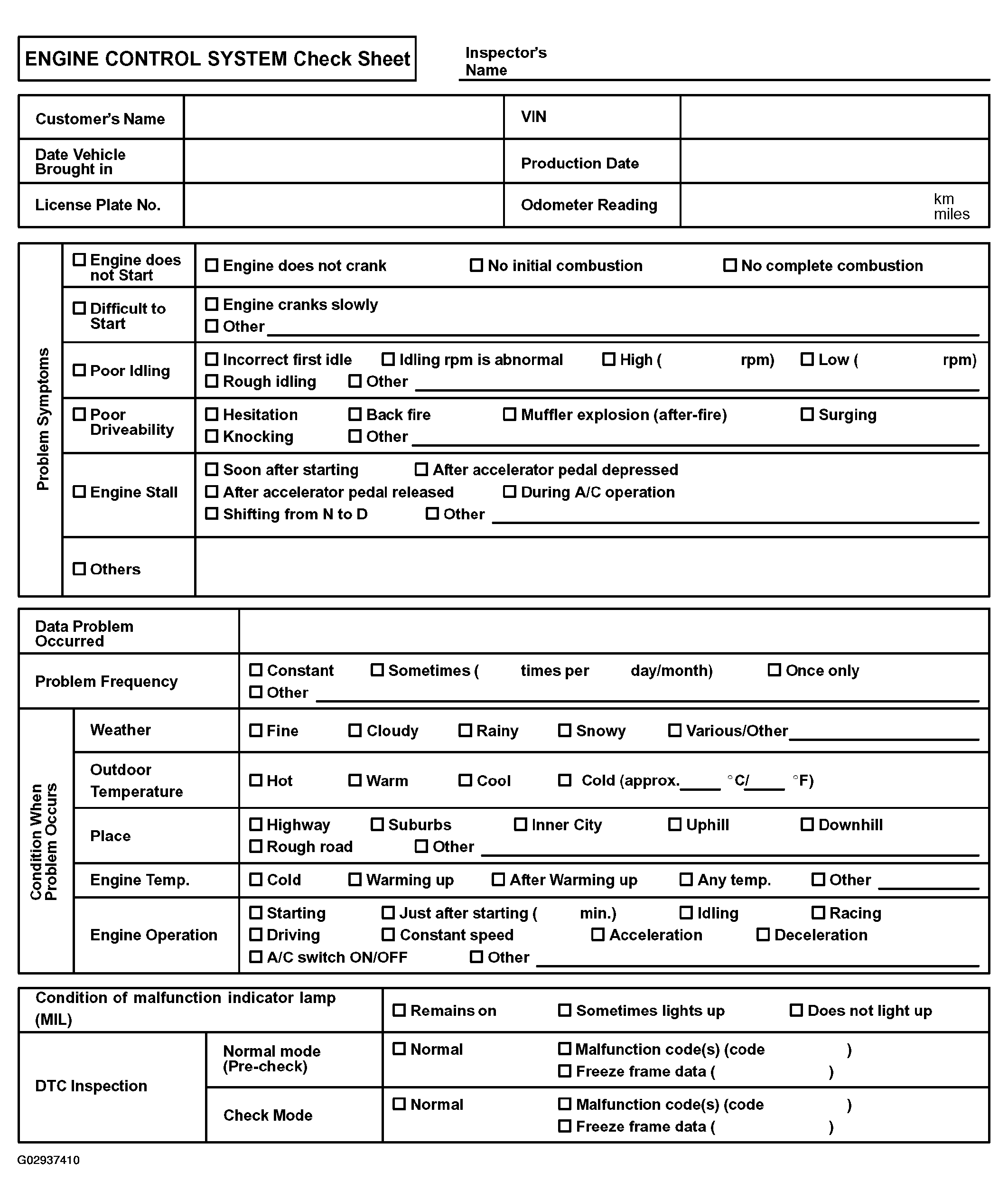

Fig 1: Engine Control System Check Sheet
G02937410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
