DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem
›
Circuit Description
Circuit Description
Refer to
DTC P0100
.

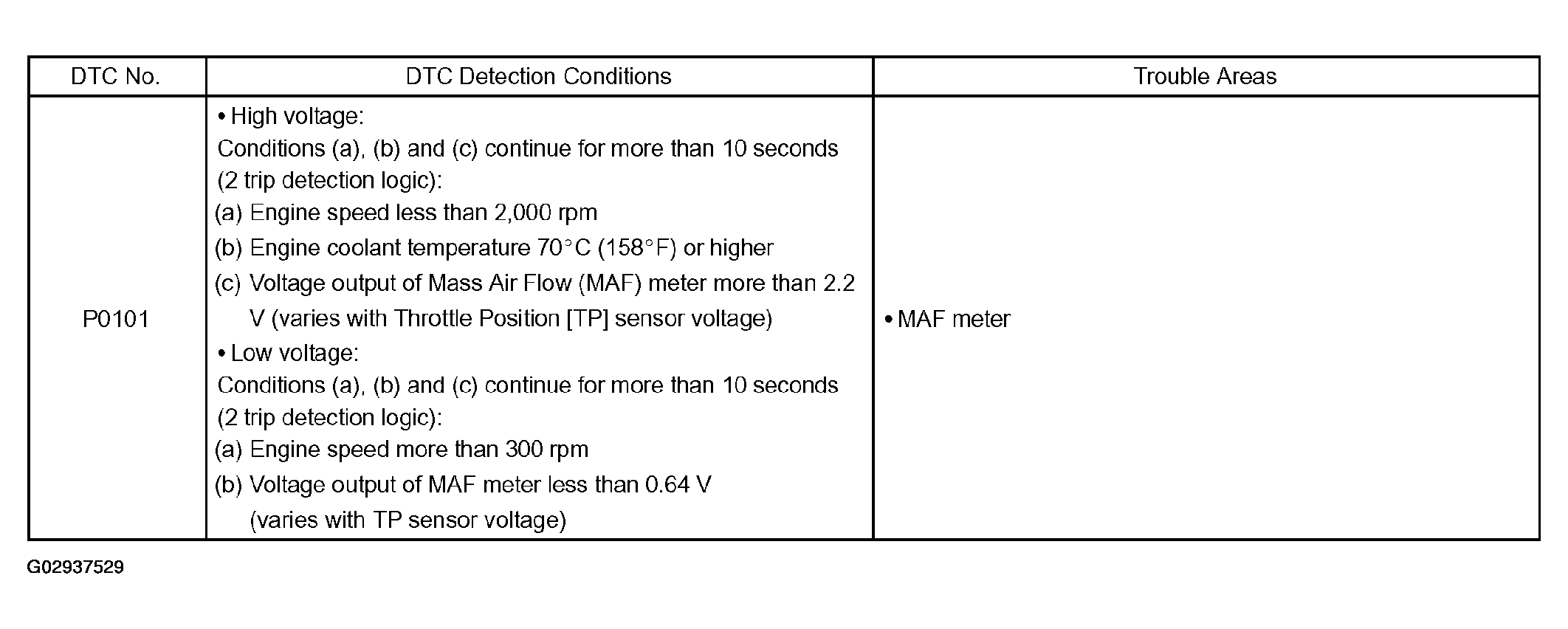

Fig 1: DTC P0101 Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
