DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem
›
Circuit Description
Circuit Description
Refer to
DTC P0115
.

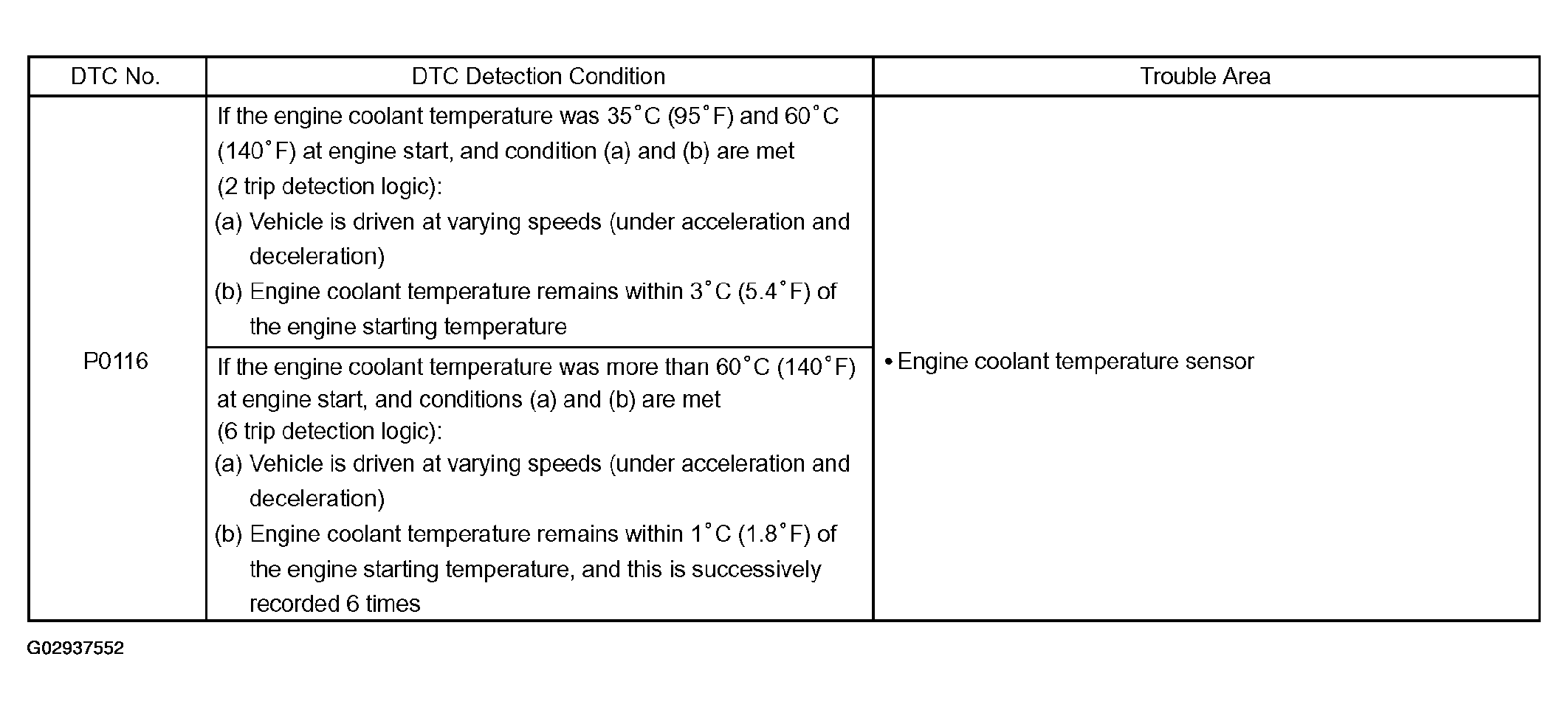

Fig 1: DTC (P0116) Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
