Home › Lexus › 2005 › ES 330 › Repair and Diagnosis › Engine Performance › System › SFI System - Diagnostics › Location

SFI System - Diagnostics: Location

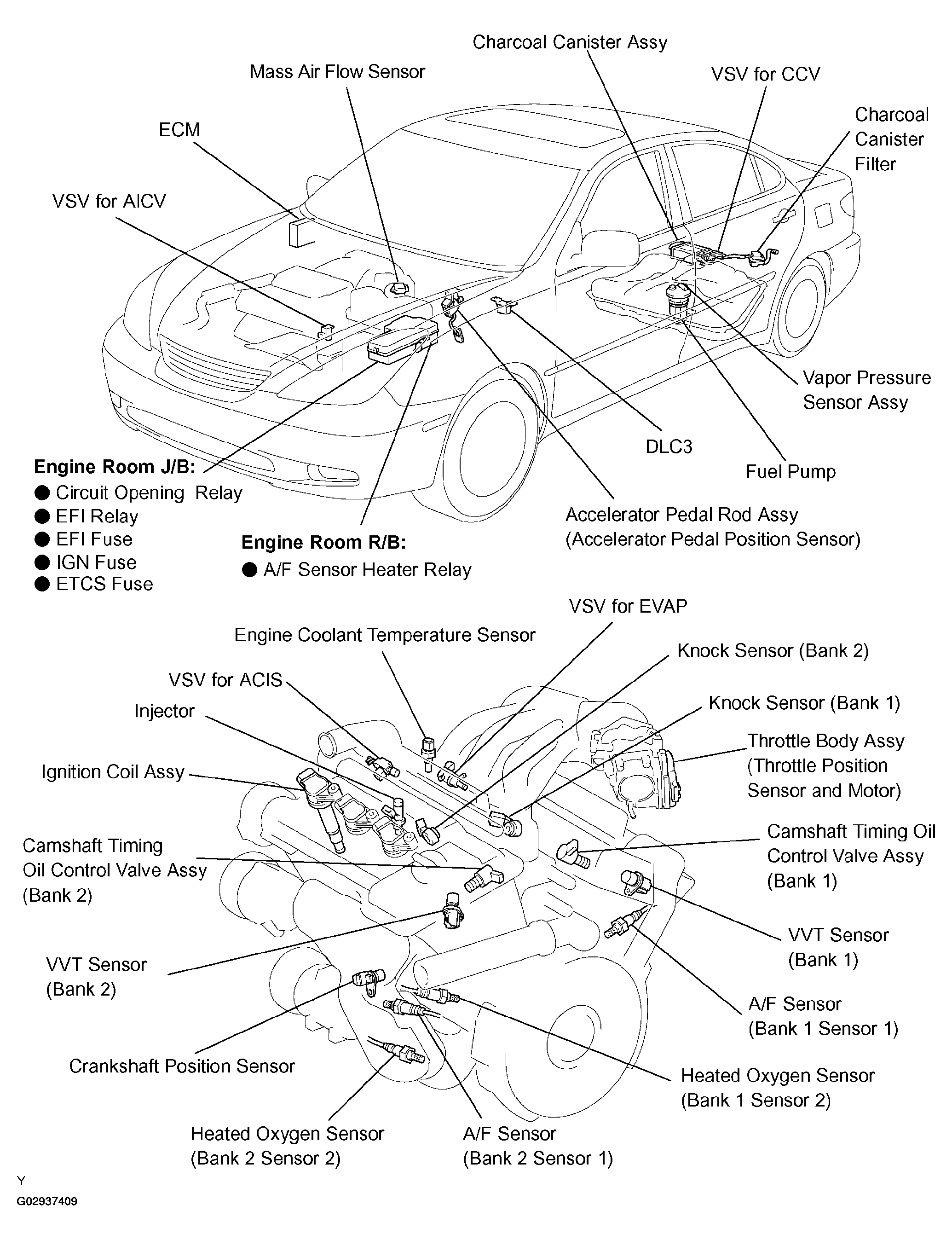

Fig 1: Identifying SFI System (3MZ-FE-) Components

G02937409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
