Steering Column ASSY: Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

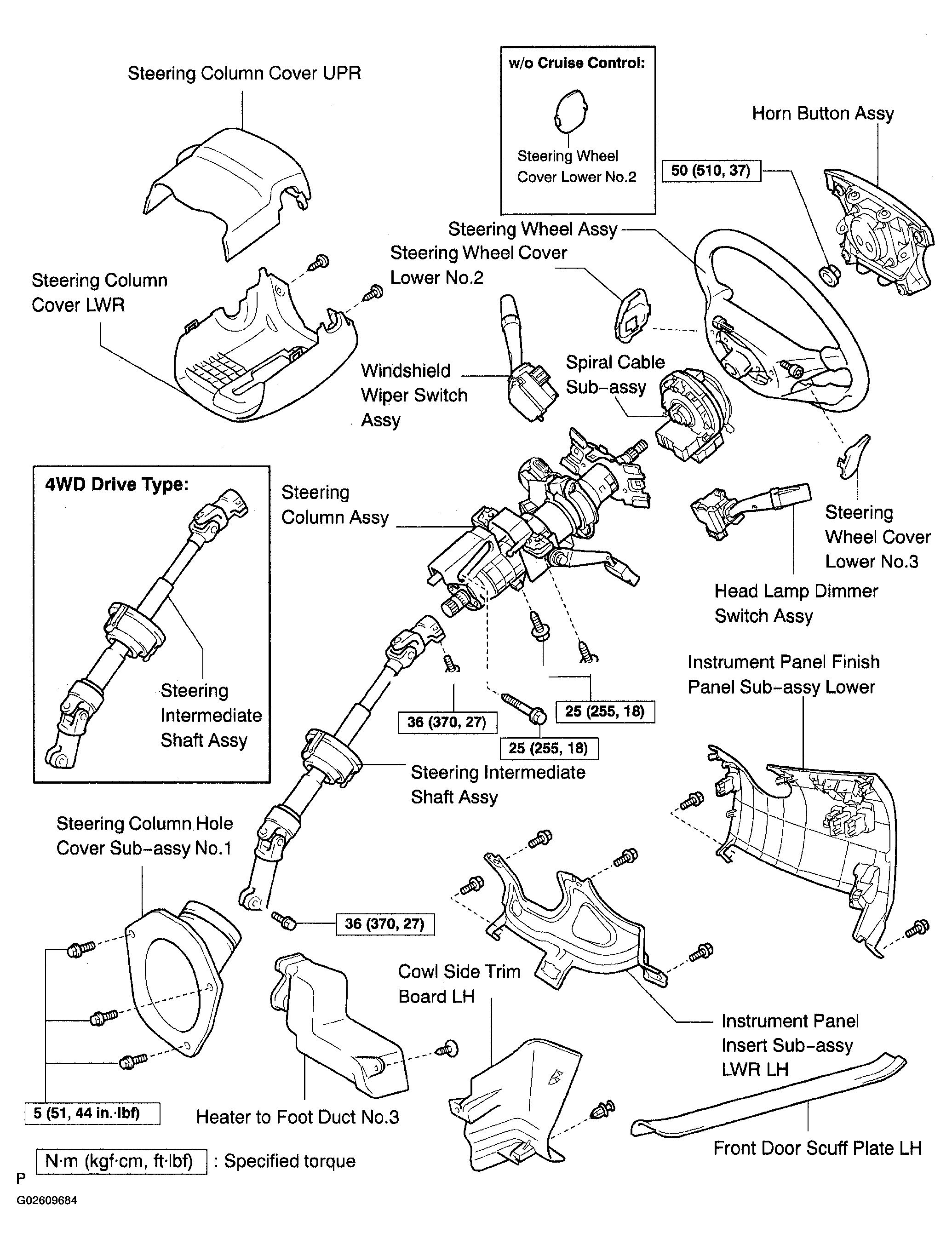

Fig 1: Exploded View Of Steering Column Assy (1 Of 2)
G02609684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

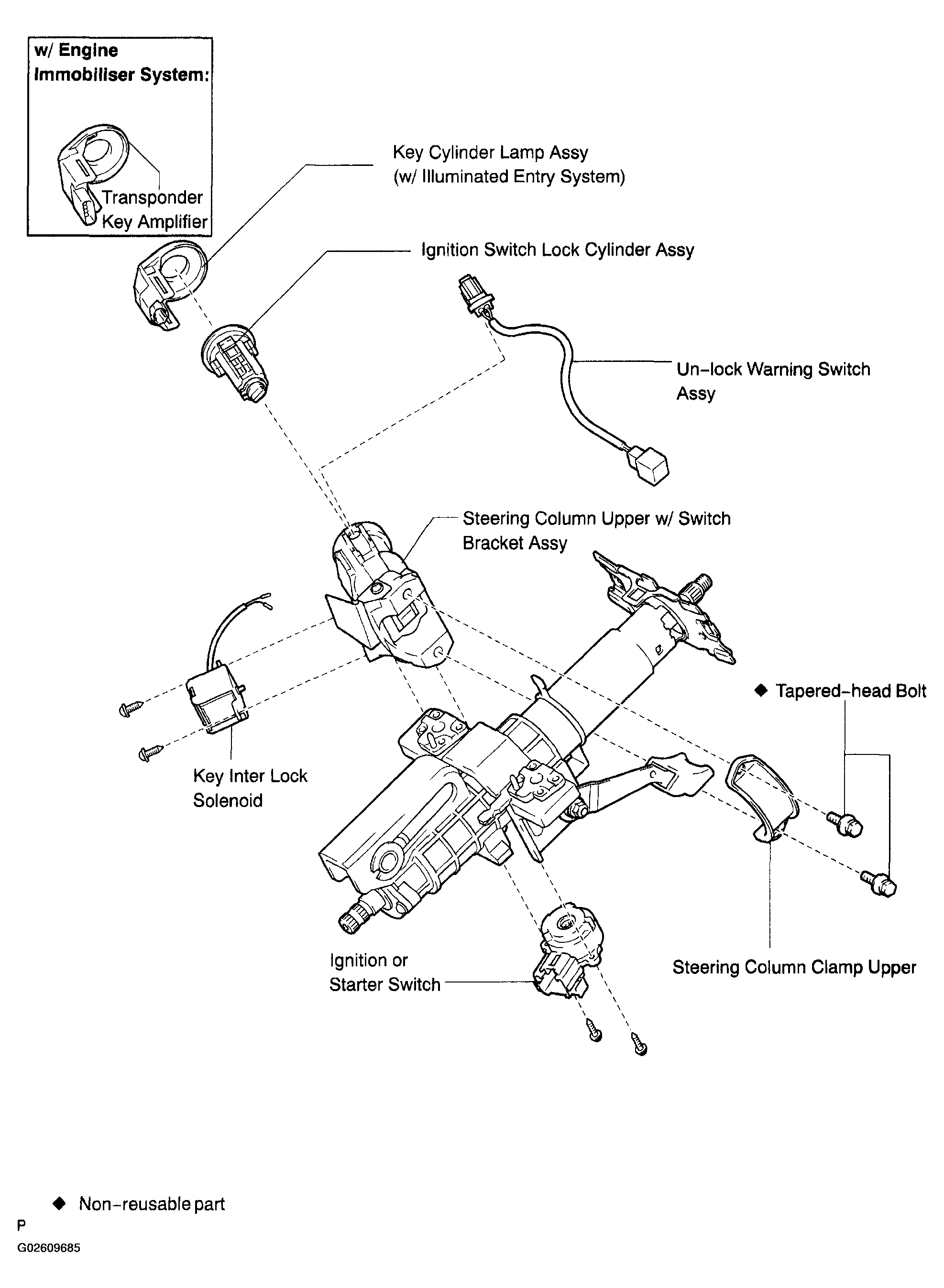

Fig 2: Exploded View Of Steering Column Assy (2 Of 2)
G02609685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
