Torque Specifications

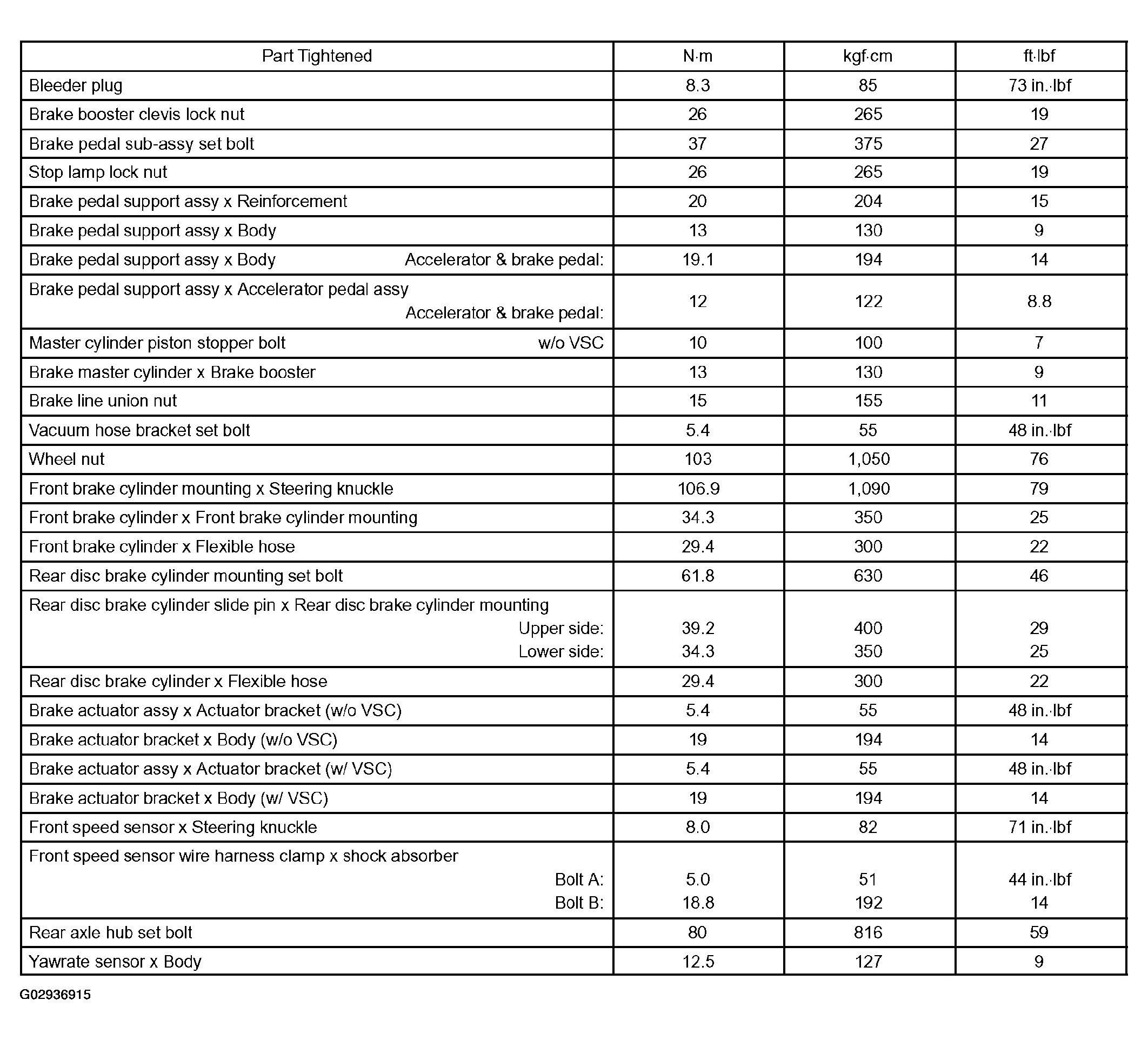

Fig 1: Brake Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
