Service Specifications
›
Front Suspension System
›
Torque Specifications
Torque Specifications

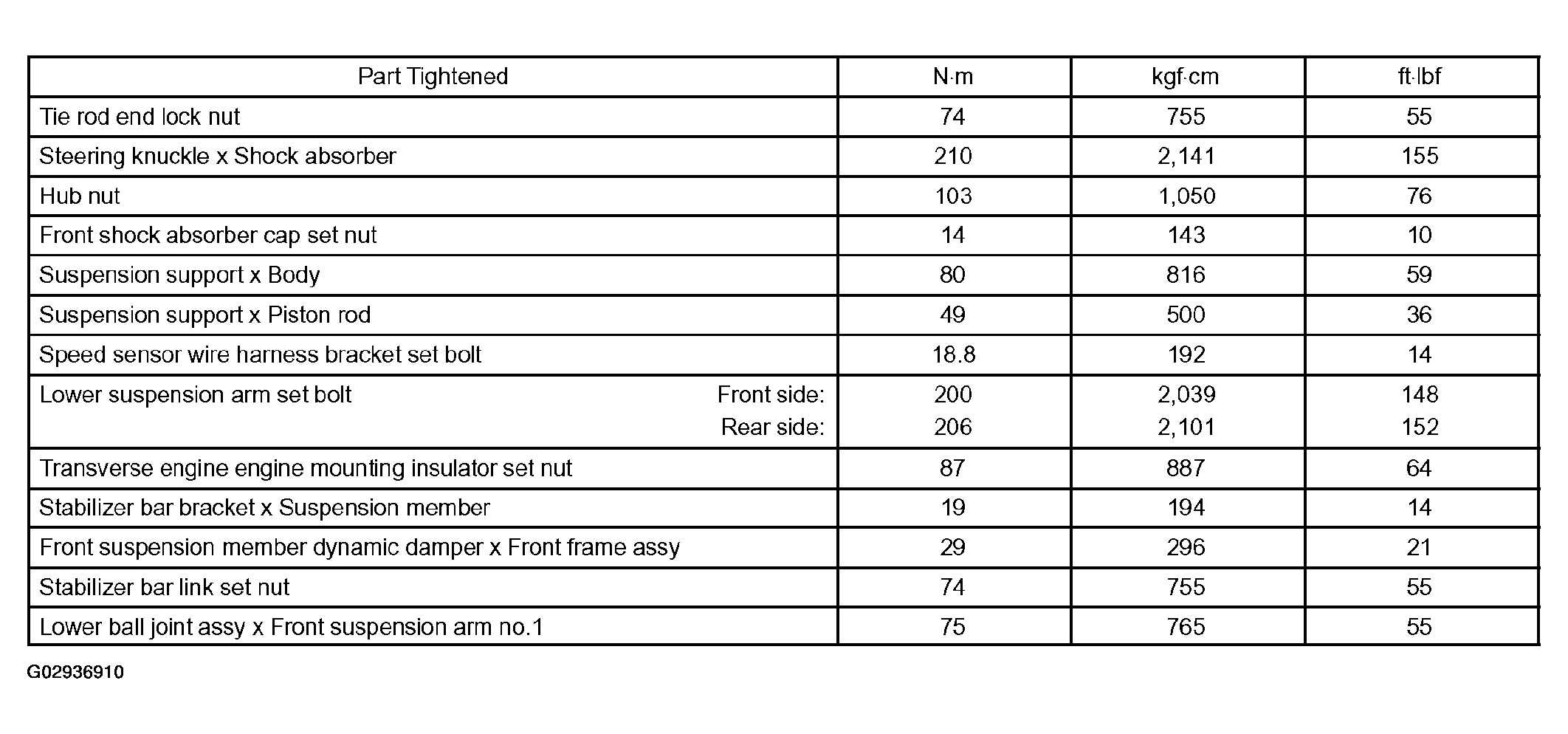

Fig 1: Front Suspension Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
