Service Specifications
›
Rear Suspension System
›
Torque Specifications
Torque Specifications

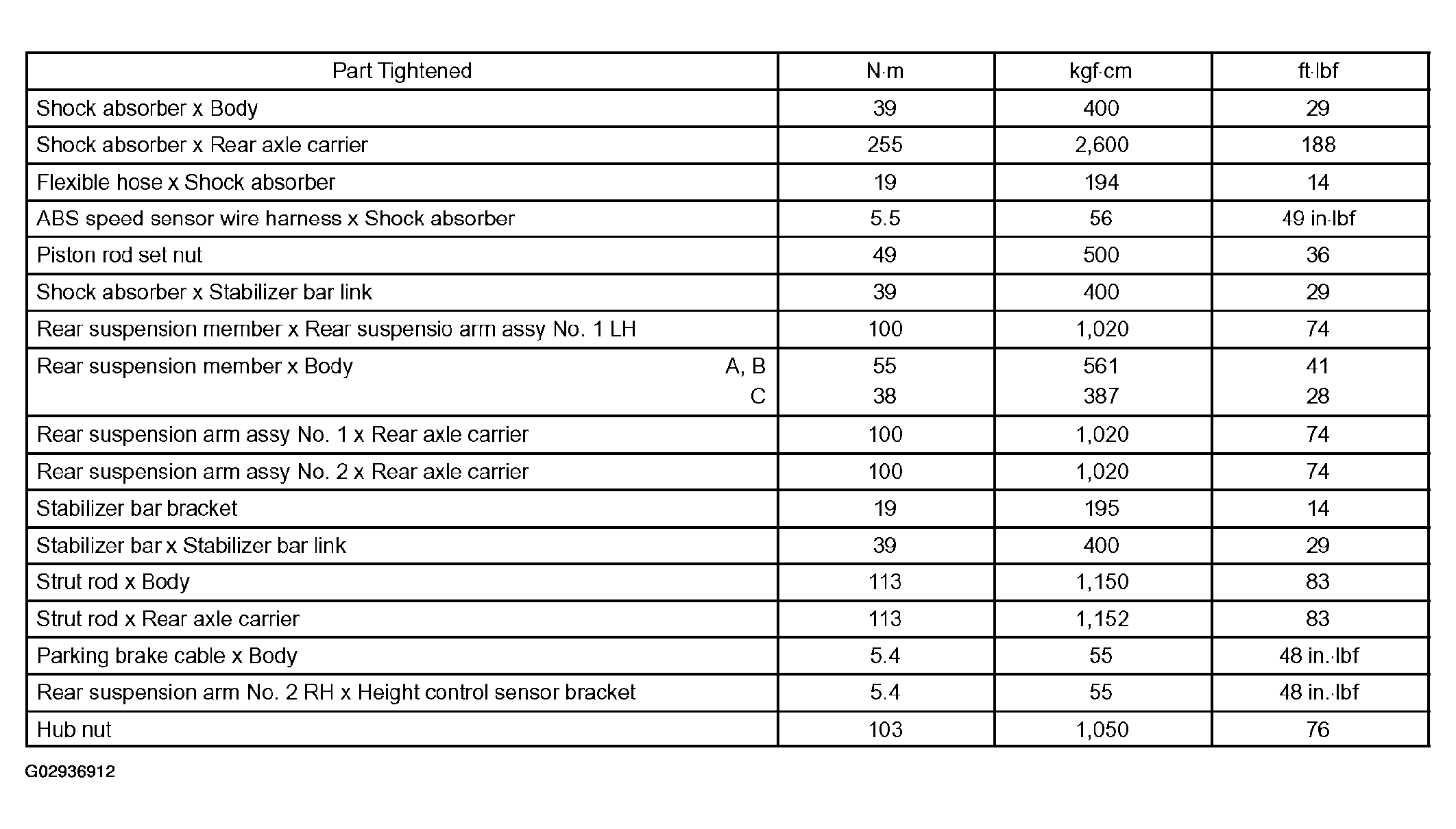

Fig 1: Rear Suspension Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
