General Information
›
OEM General Information
›
Service Specifications
›
Starting System & Charging System
›
Torque Specifications
Torque Specifications

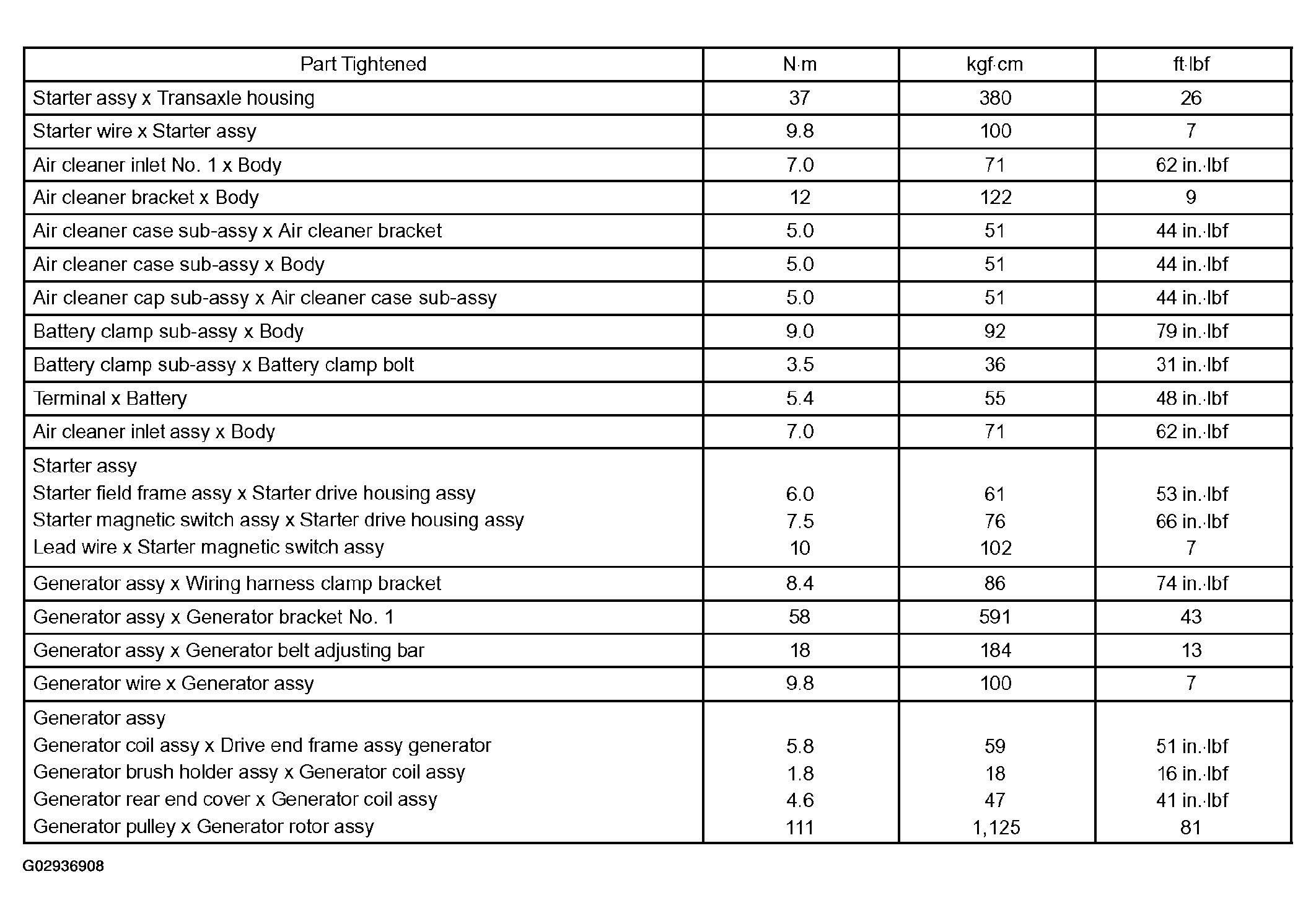

Fig 1: Starting & Charging Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
