Vane Pump ASSY: Components

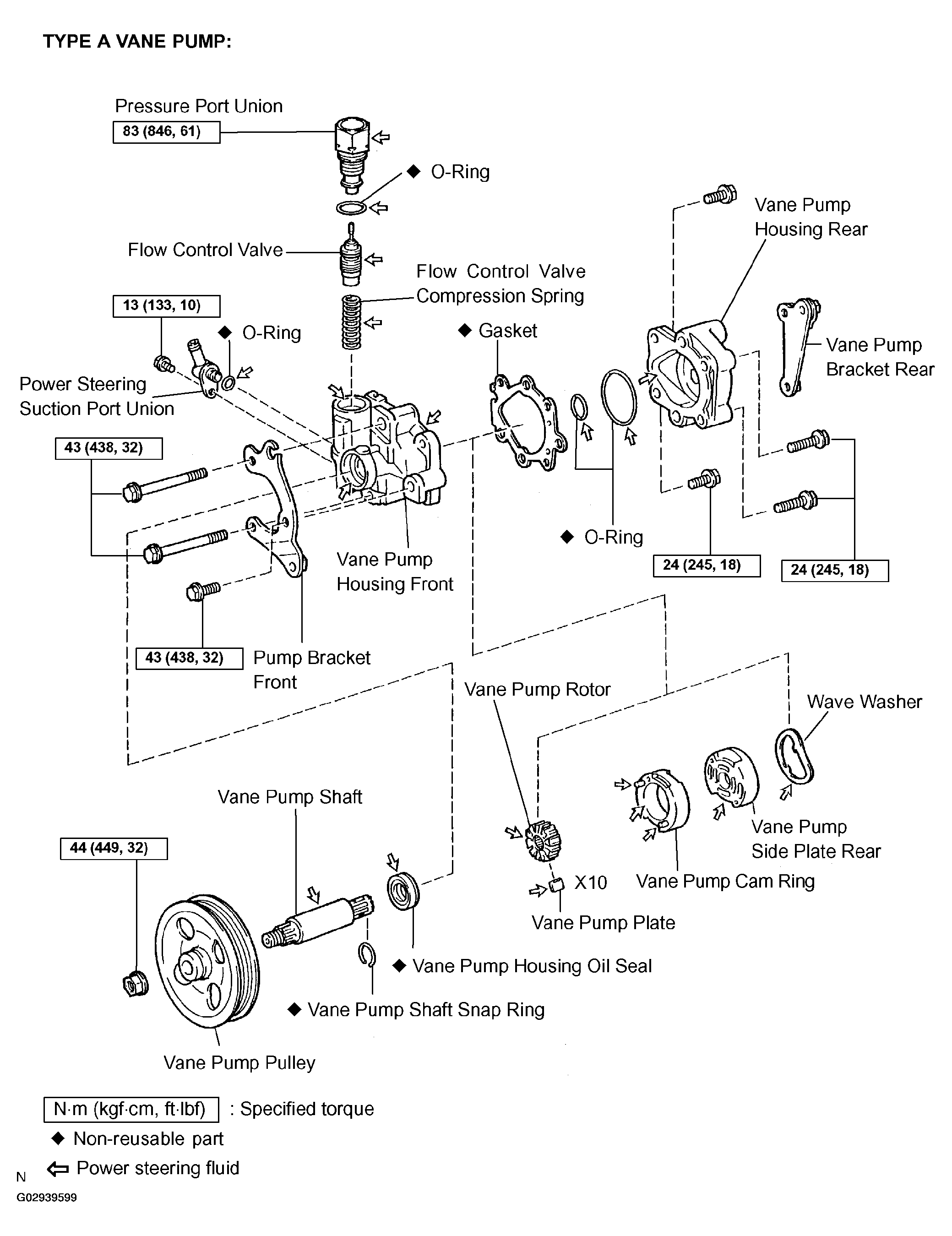

Fig 1: Identifying Vane Pump Components Location (1 Of 2)
G02939599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

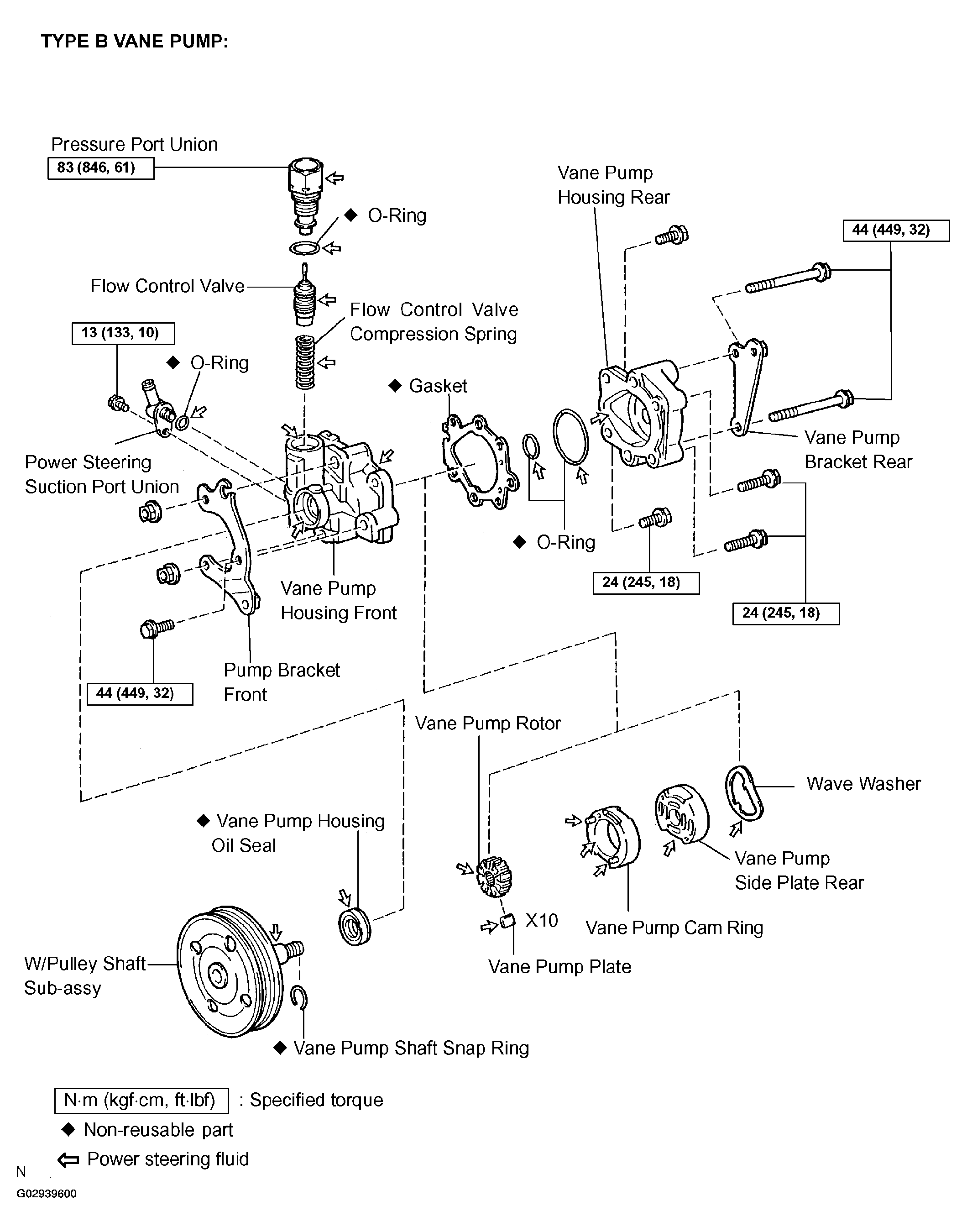

Fig 2: Identifying Vane Pump Components Location (2 Of 2)
G02939600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
