Manual Shifting Test: Notes

HINT:

• With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.
• If any abnormalities are found in the following test, the problem is in the transaxle itself.

1. Disconnect the transmission wire connector.
2. Drive with the transmission wire disconnected.

   Move the shift lever to the L, 2, 3, 4 or D position to check whether the shifting condition changes as shown in the table below.

   SHIFT POSITION CONDITION CHECK



   Shift Position	Shifting Condition
   L<==>2	No Shift (Not Change)
   2<==>3	Down Shift <==> Up Shift
   3<==>4<==>D	No Shift (Not Change)

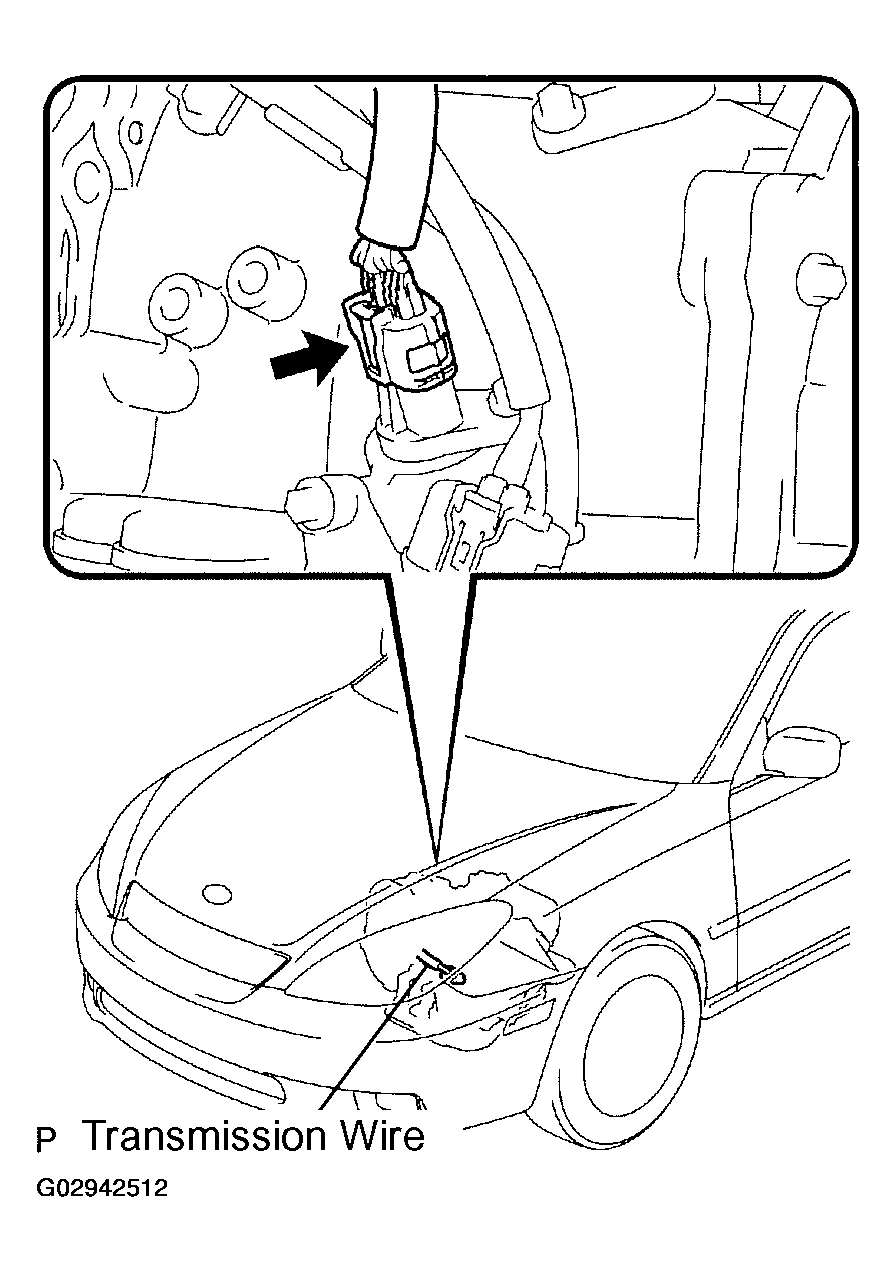

   Fig 1: Disconnecting Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When driving with the transmission wire disconnected, the gear position will be as follows:

   • When the shift lever is in the L or the 2 position, the gear is held in the 3rd position.
   • When the shift lever is in the 4 or the D position, the gear is held in the 4th position.
   • When the shift lever is in the R or the P position, the gear is also in the R or the P position respectively.
3. Connect the transmission wire connector.
4. Clear the DTC (see DTC CHECK/CLEAR  ).
