Driver Door Control System - Diagnostics
›
Terminals Of Ecu
Terminals Of Ecu

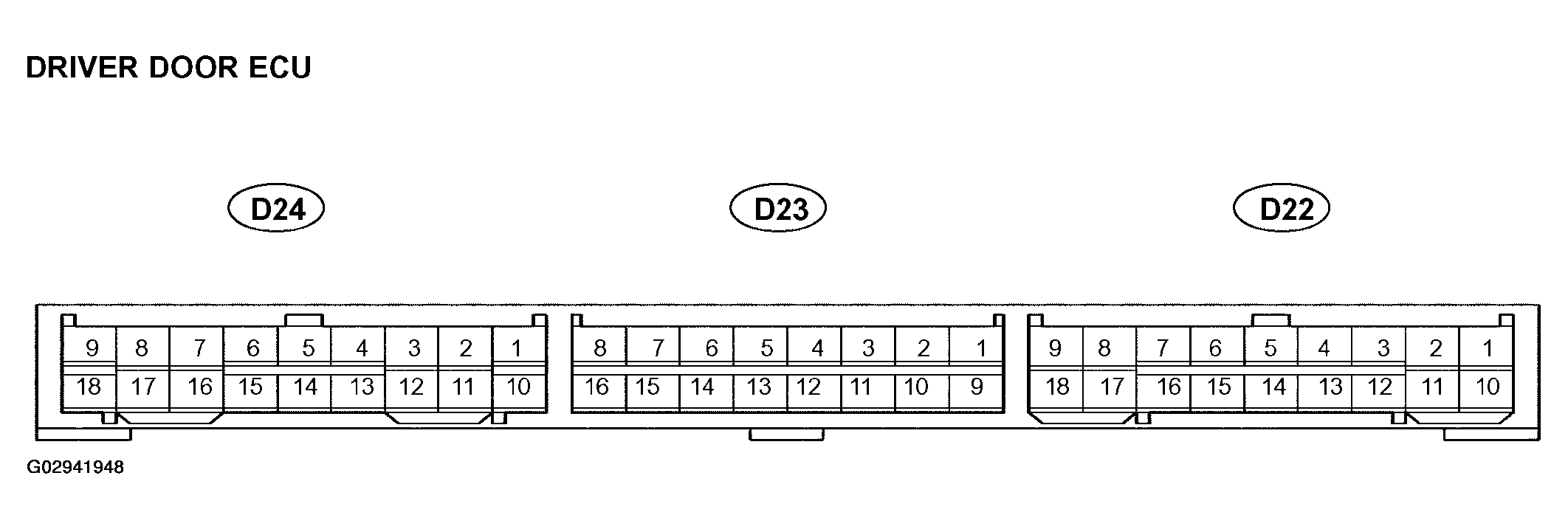

Fig 1: Identifying Driver Door ECU Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

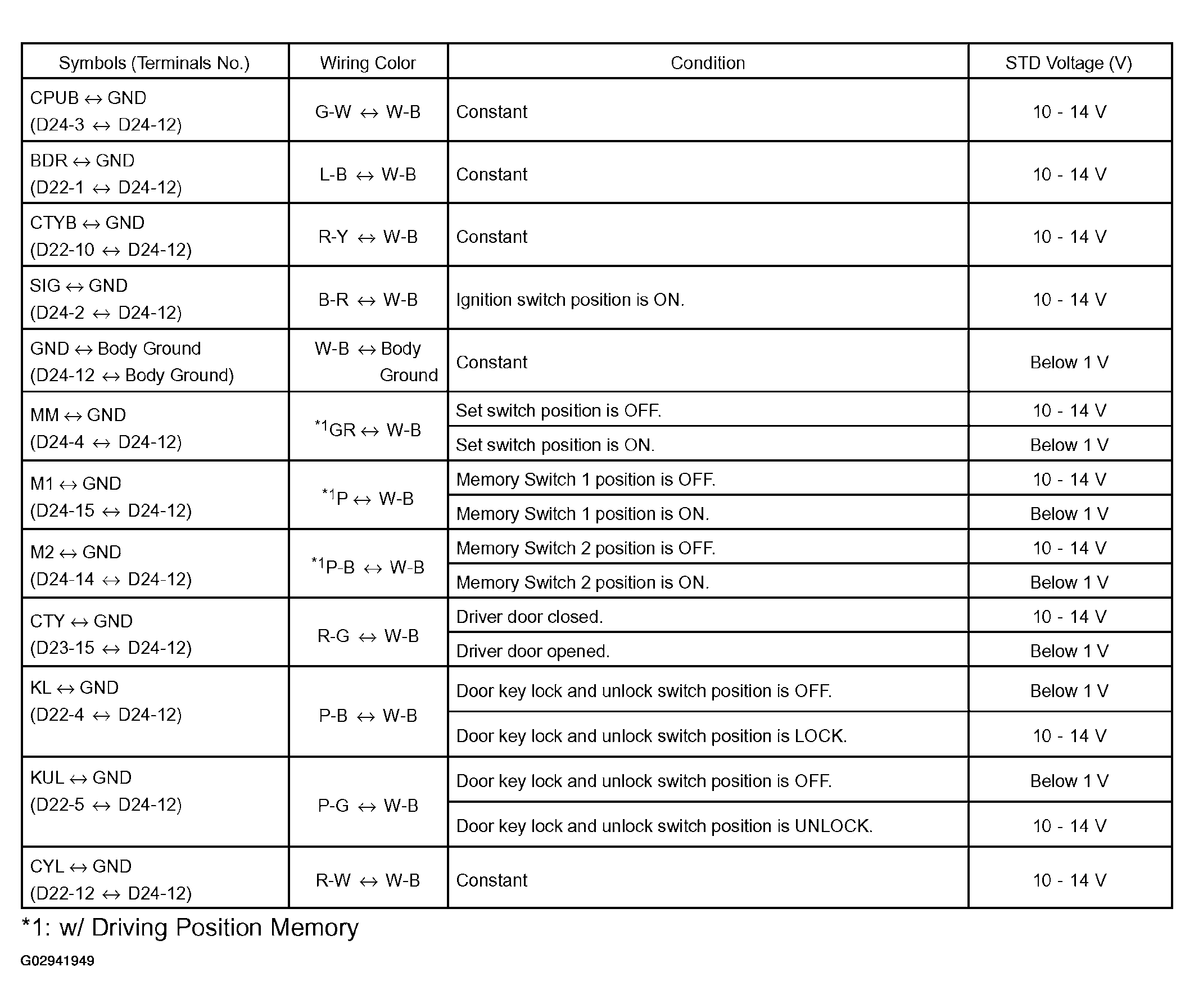

Fig 2: Terminals Condition And STD Voltage Table (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

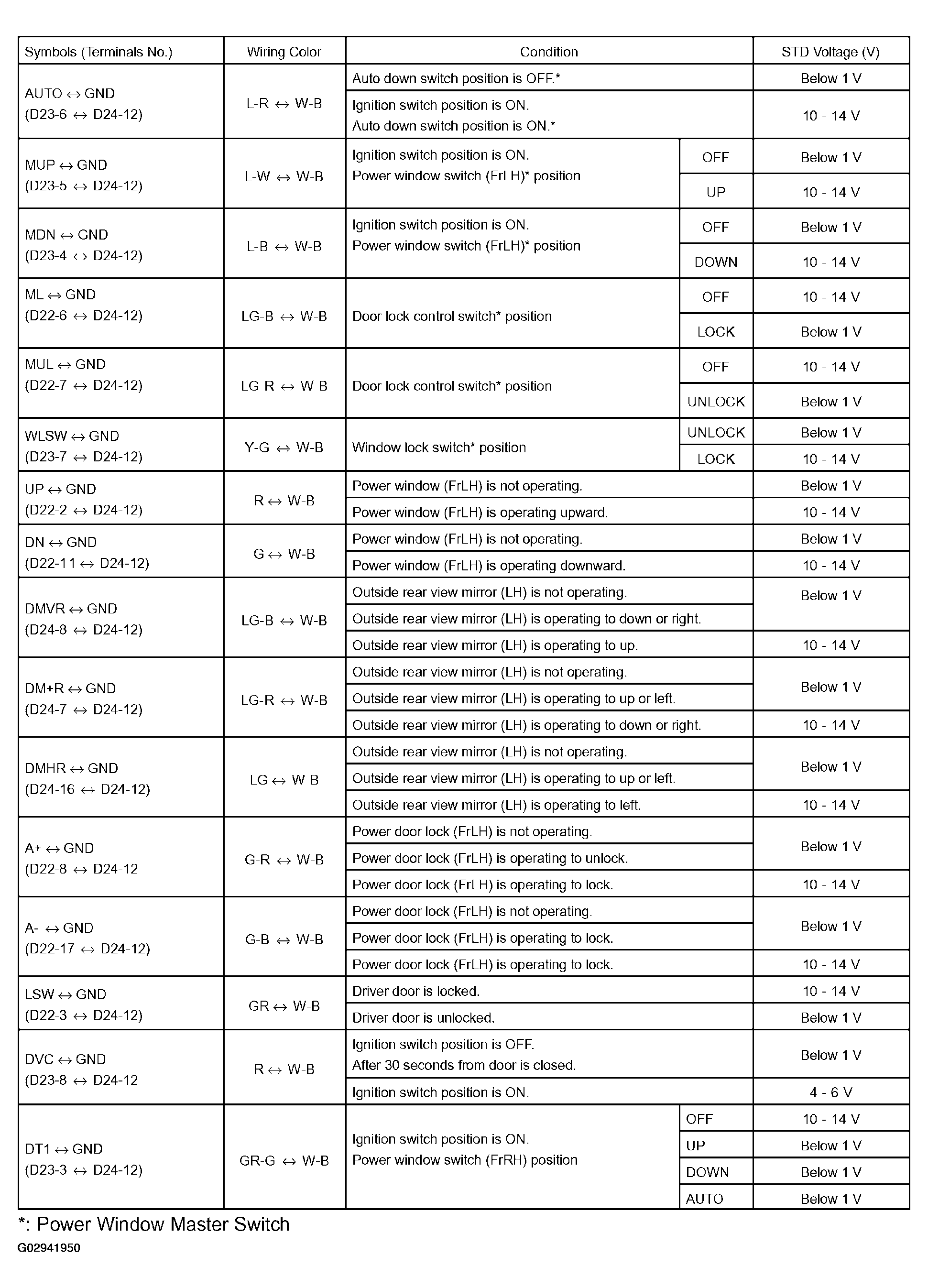

Fig 3: Terminals Condition And STD Voltage Table (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

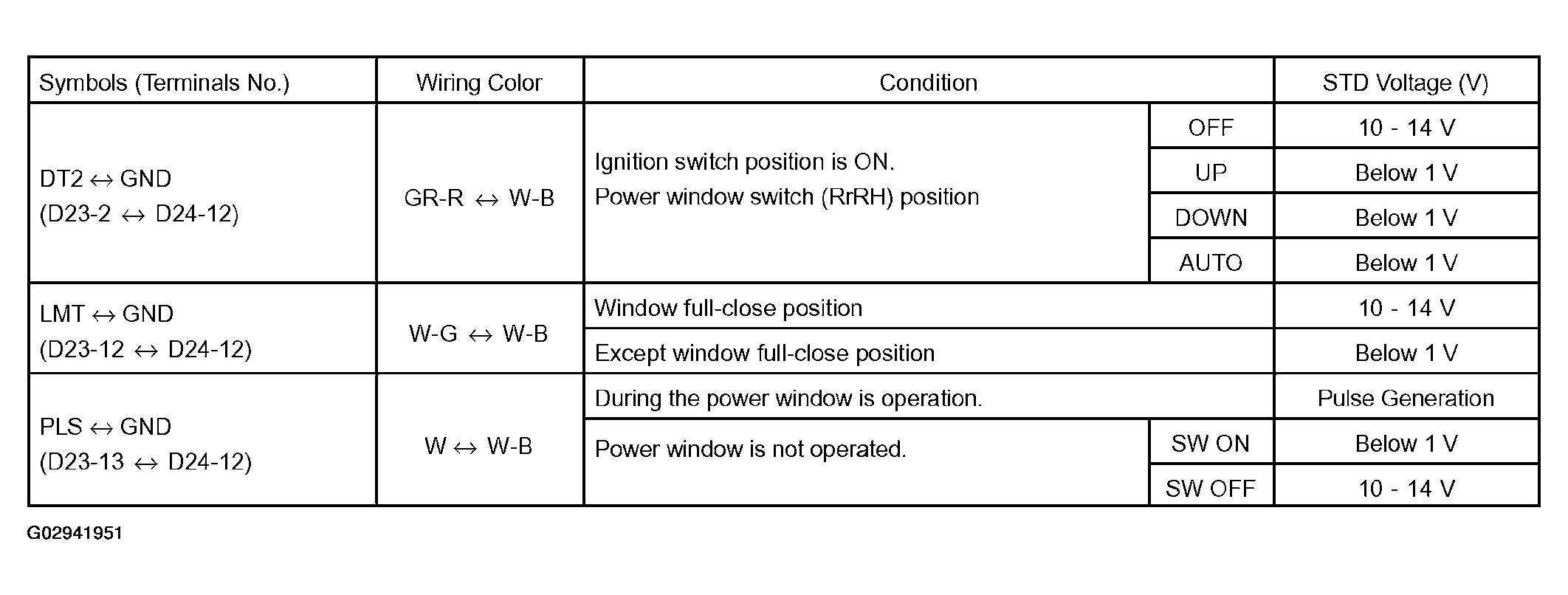

Fig 4: Terminals Condition And STD Voltage Table (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
