Power source circuit: Wiring Diagram

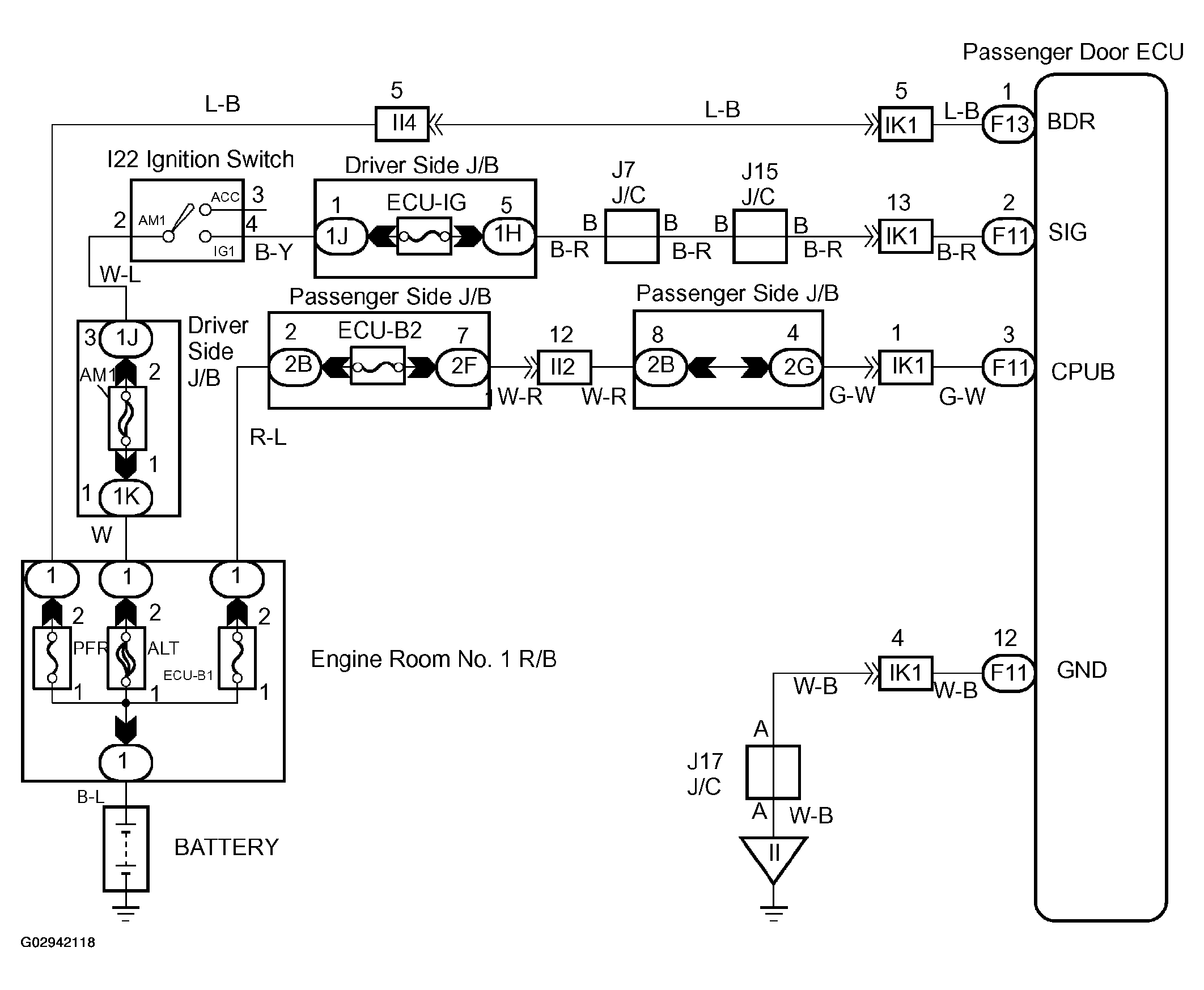

Fig 1: Passenger Door Control System - Circuit Diagram
G02942118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
