Rear Left Door Control System - Diagnostics
›
Circuit Inspection
›
Power Window Switch Circuit
›
Wiring Diagram
Power Window Switch Circuit: Wiring Diagram

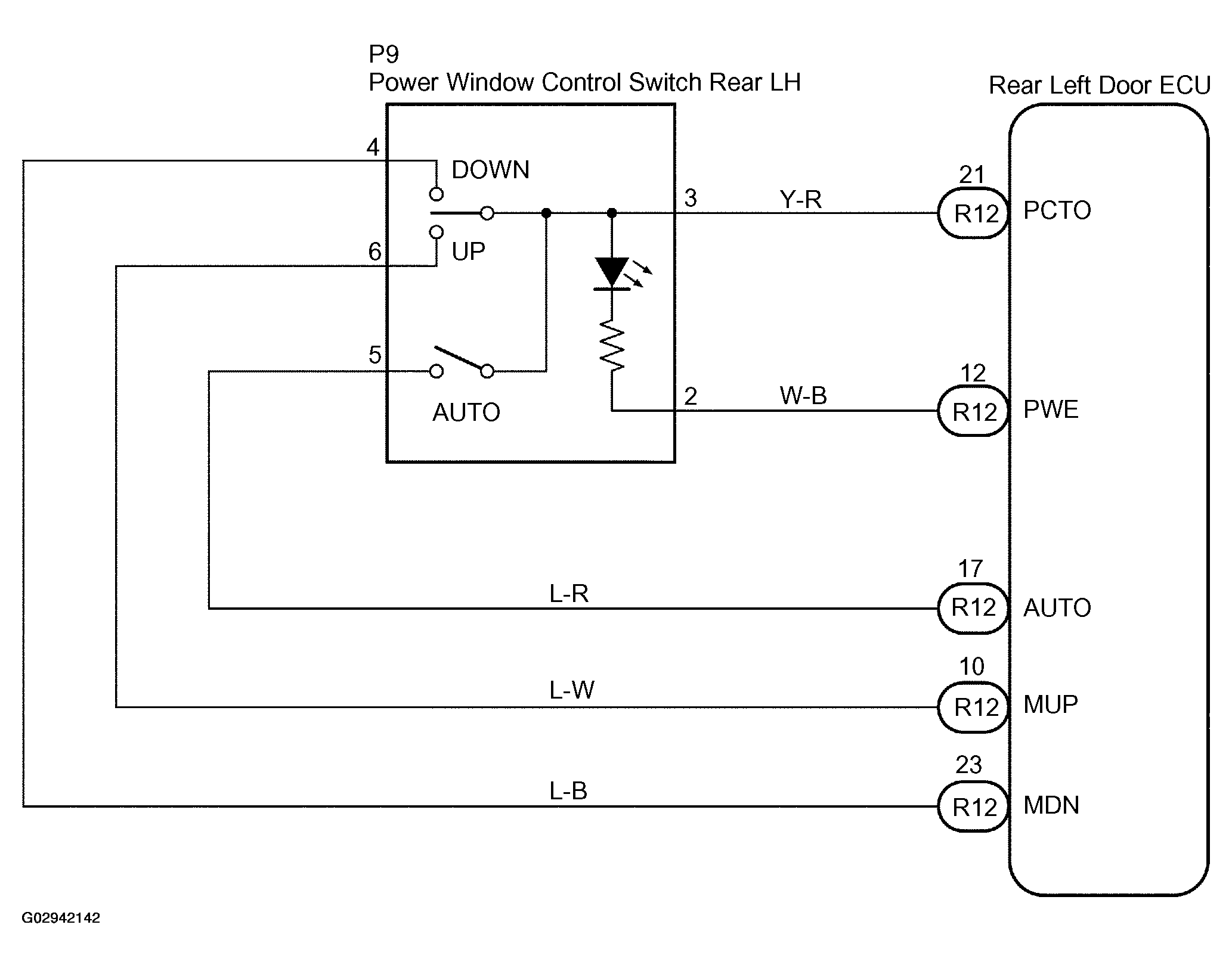

Fig 1: Power Window Switch Circuit Wiring Diagram
