Engine (2JZ-GE) - Diagnostics
›
Parts Location
Parts Location

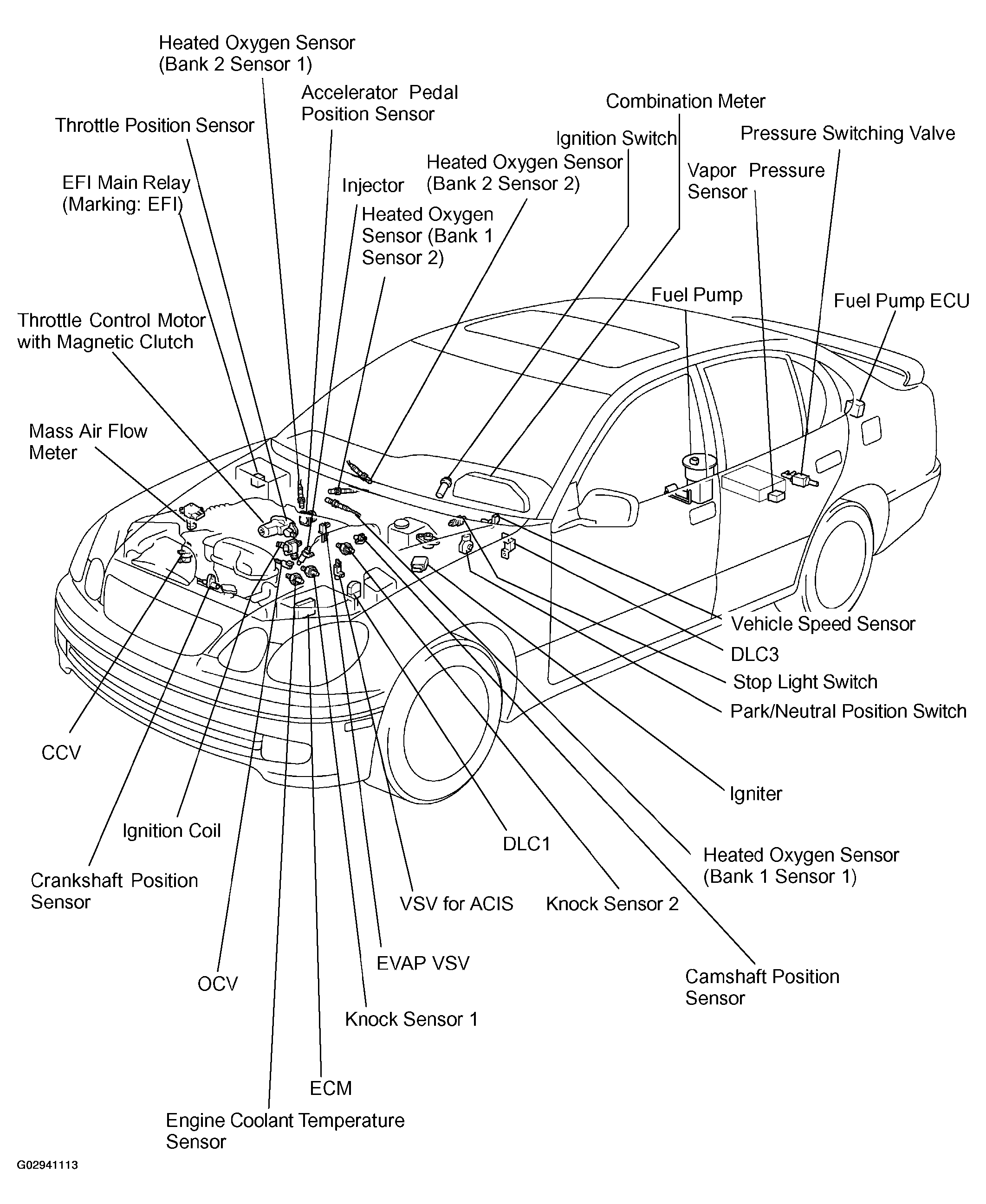

Fig 1: Identifying Location Of Engine Electrical Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
