Passenger Door Control System - Diagnostics
›
Problem Symptoms Table
›
Power Mirror Control System
Power Mirror Control System

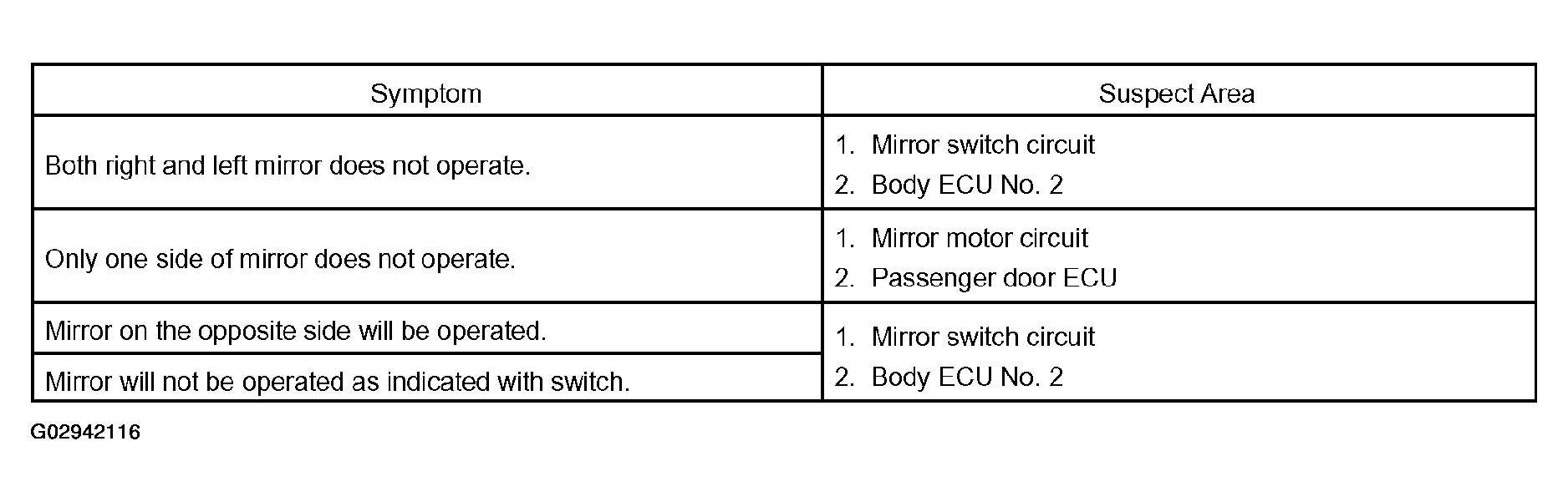

Fig 1: Power Mirror Control System - Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
