Starting System - Service Specifications
›
Starting System (3UZ-FE)
›
Service Data
Service Data

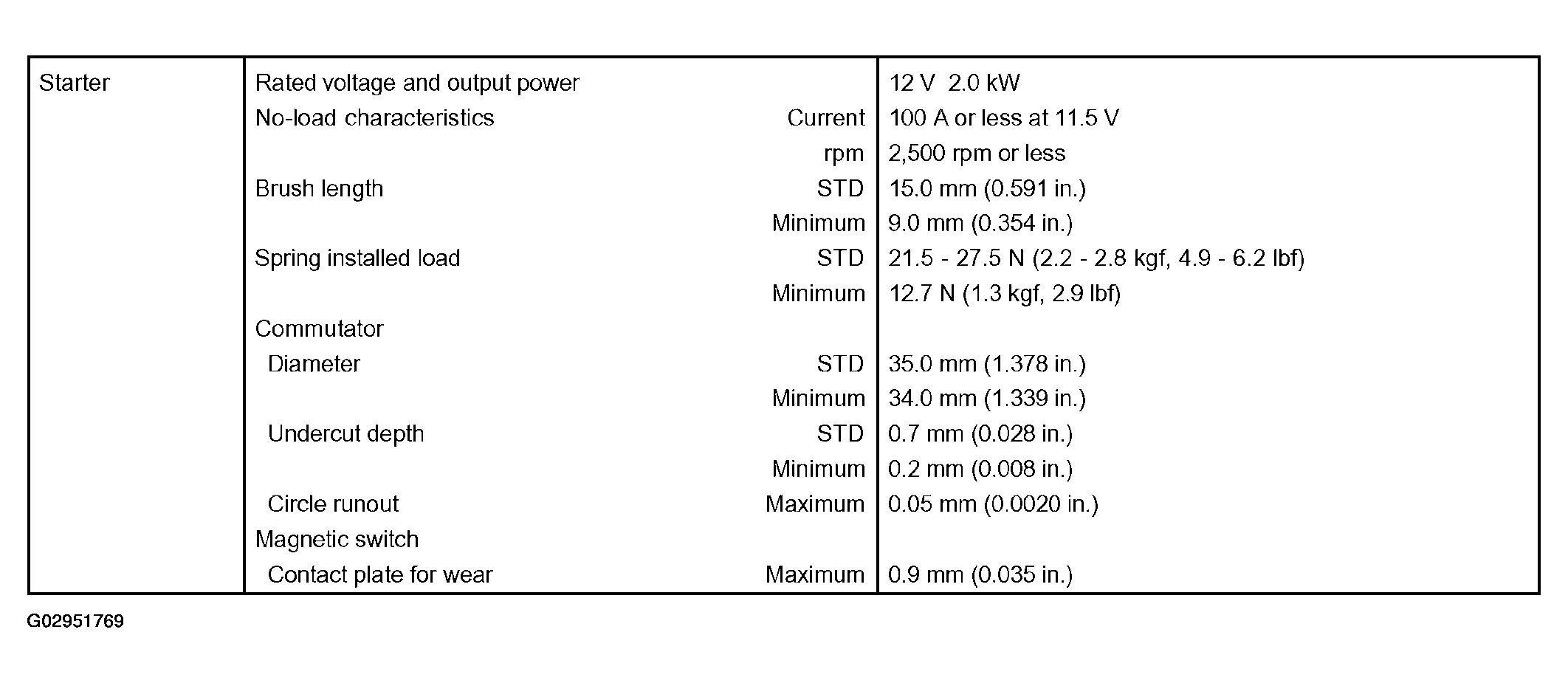

Fig 1: Starting System Service Specification Chart (3UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
