Inspection Procedure

HINT:

In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step  2.

1. Check headlight control switch using hand-held tester.

   PREPARATION:

   Connect the hand-held tester to the DLC 3.

   CHECK:

   Check the headlight control switch using DATA LIST.

   OK:

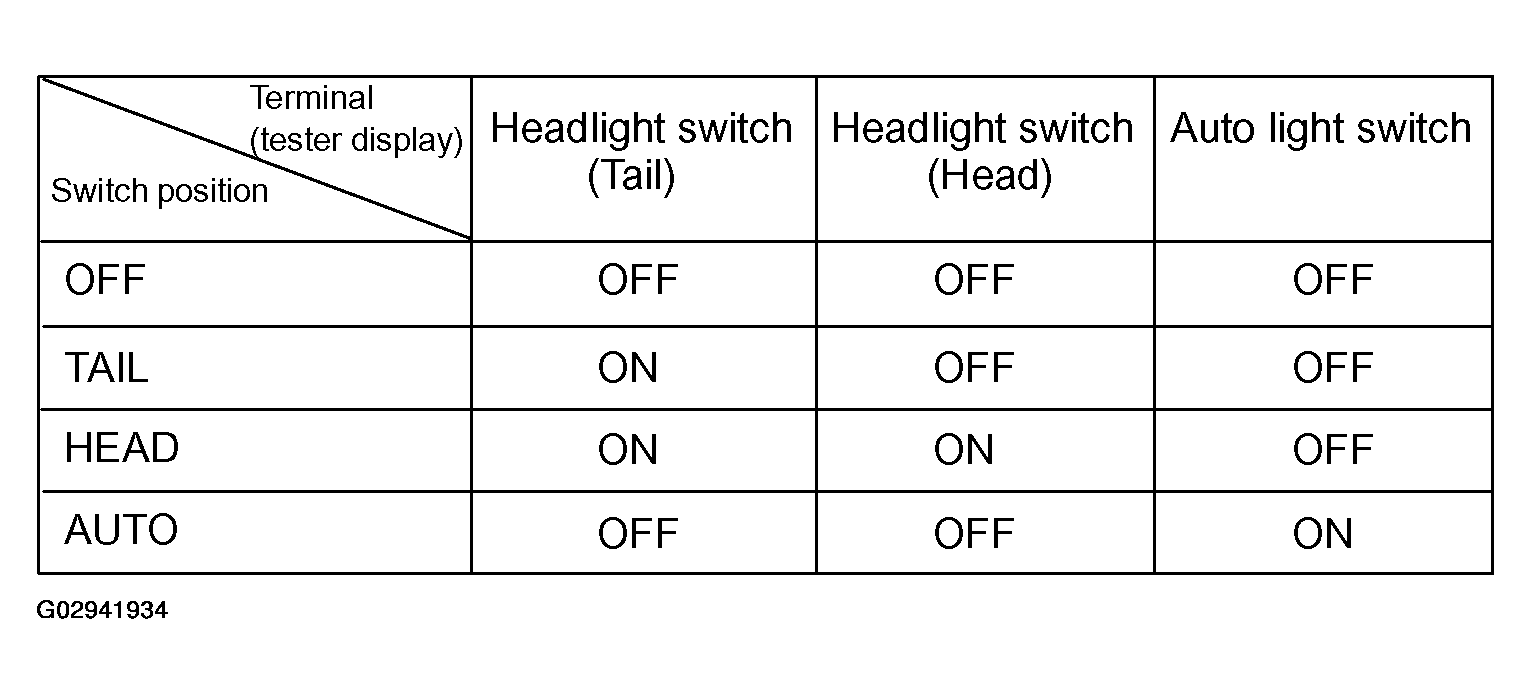

   Fig 1: Headlight Control Switch Data List

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. OK: Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
   2. NG: Go to next step.
2. Check headlight control switch (See  INSPECTION  ).
   1. NG: Replace the headlight control switch.
   2. OK: Go to next step.
3. Check wire harness and connector between headlight control switch and body ECU No. 2.
   1. NG: Repair or replace wire harness or connector.
   2. OK: Proceed to next circuit inspection shown on problem symptoms table. (See  PROBLEM SYMPTOMS TABLE   )
