Passenger Door Control System - Diagnostics
›
Terminals Of Ecu
Terminals Of Ecu
Fig 1: Identifying ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

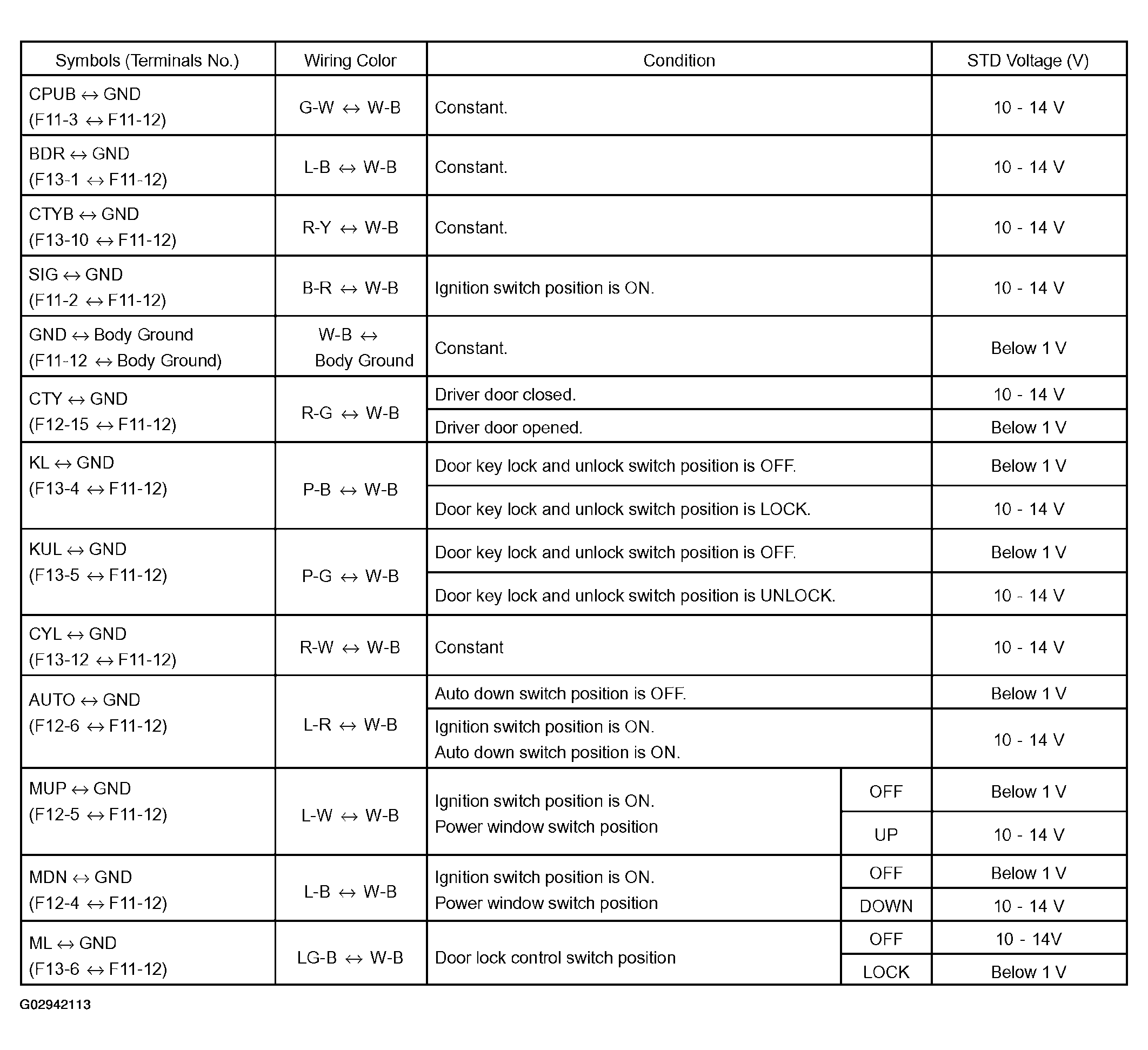

Fig 2: Identifying ECU Connector Terminals, Condition, STD Voltage Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying ECU Connector Terminals, Condition, STD Voltage Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
