Rear Left Door Control System - Diagnostics
›
Circuit Inspection
›
Power Source Circuit
›
Wiring Diagram
Power Source Circuit: Wiring Diagram

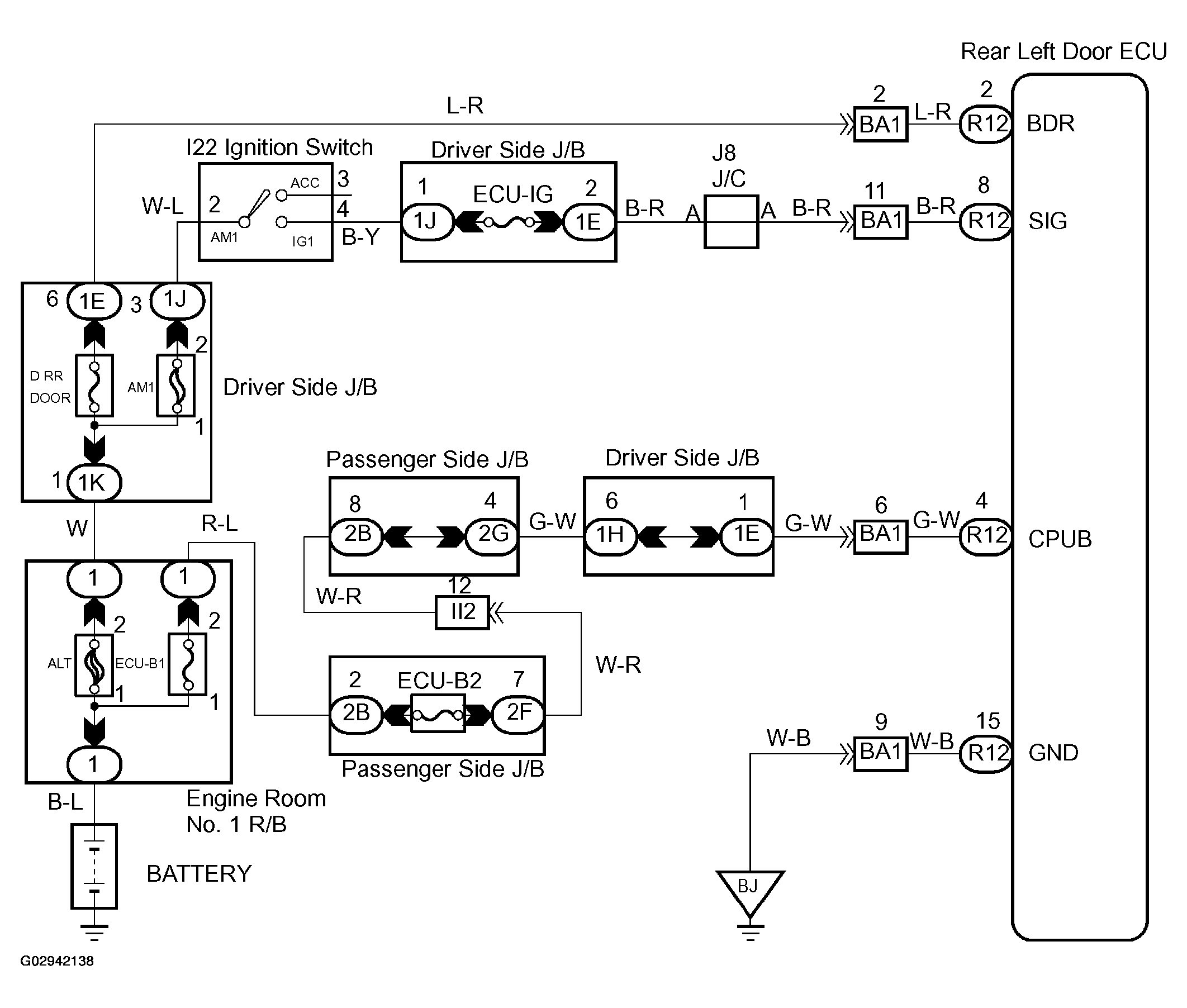

Fig 1: Rear Left Door Control System Circuit Wiring Diagram
