Charging (3UZ-FE): Generator: Components

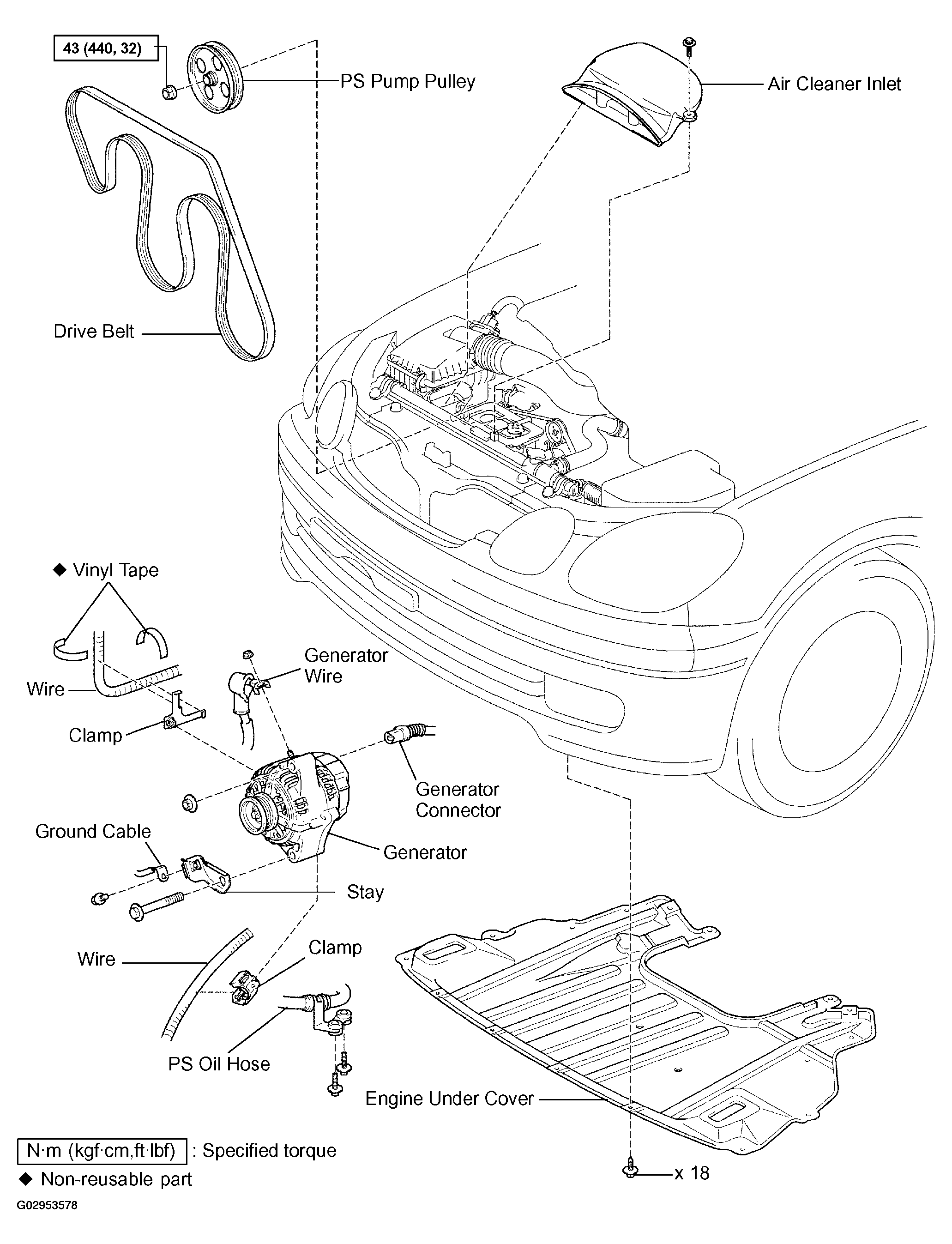

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

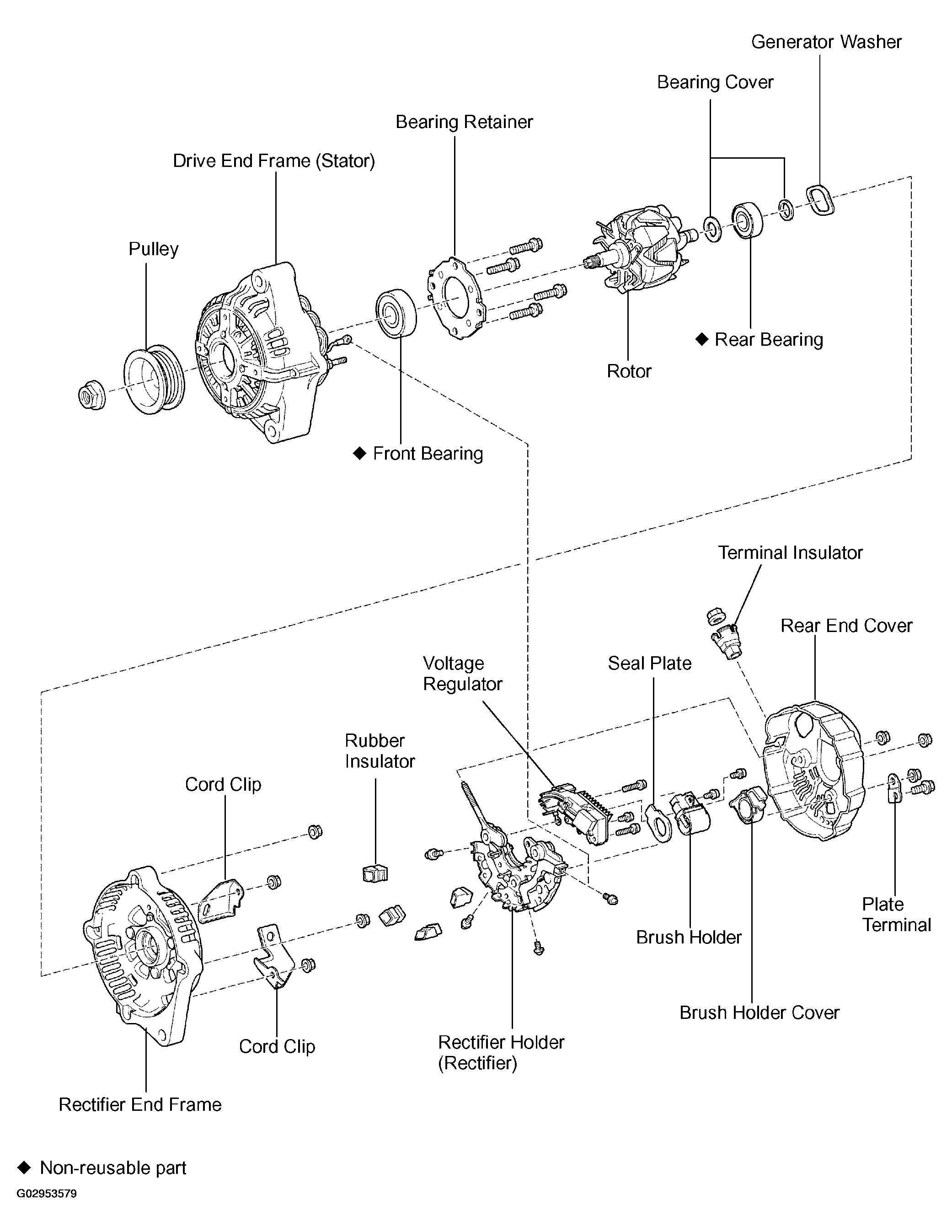

Fig 2: Identifying Generator Assembly (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
