Charging (3UZ-FE): Generator: Installation

1. Install the generator and stay with the nut and bolt.

   Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

2. Install the clamp (for generator wire) to the cord clip on alternator.

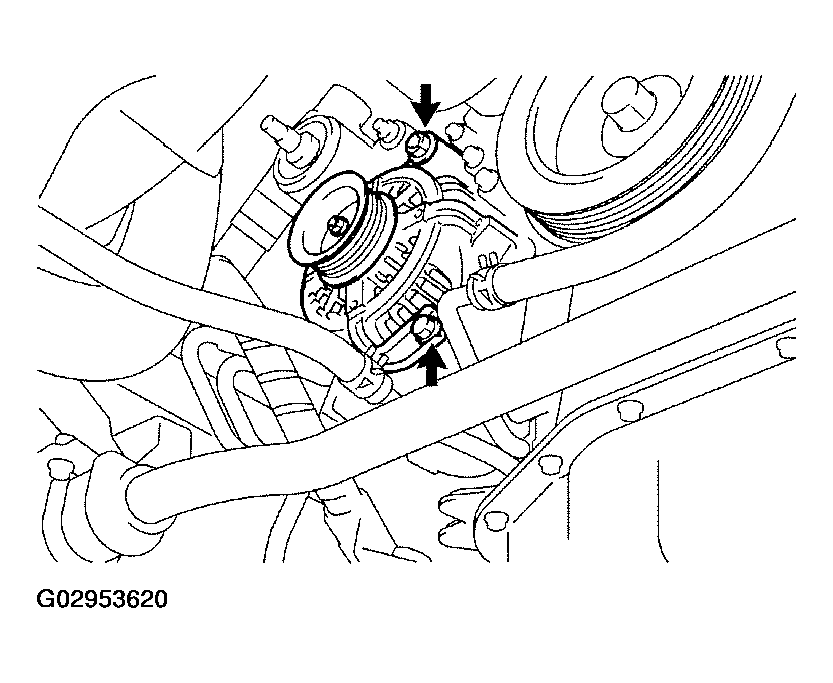

   Fig 1: Installing Generator And Stay With Nut And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install these parts:
   1. Install the ground cable.
   2. Install the wire (for generator wire) to clamp on cord clip.
   3. Install the wire (for generator connector) to clamp on cord clip.
      • Install the clamp to the wire with a vinyl tape.
      • Install the clamp to the cord clip.
   4. Install the PS oil hose to No.1 oil pan.

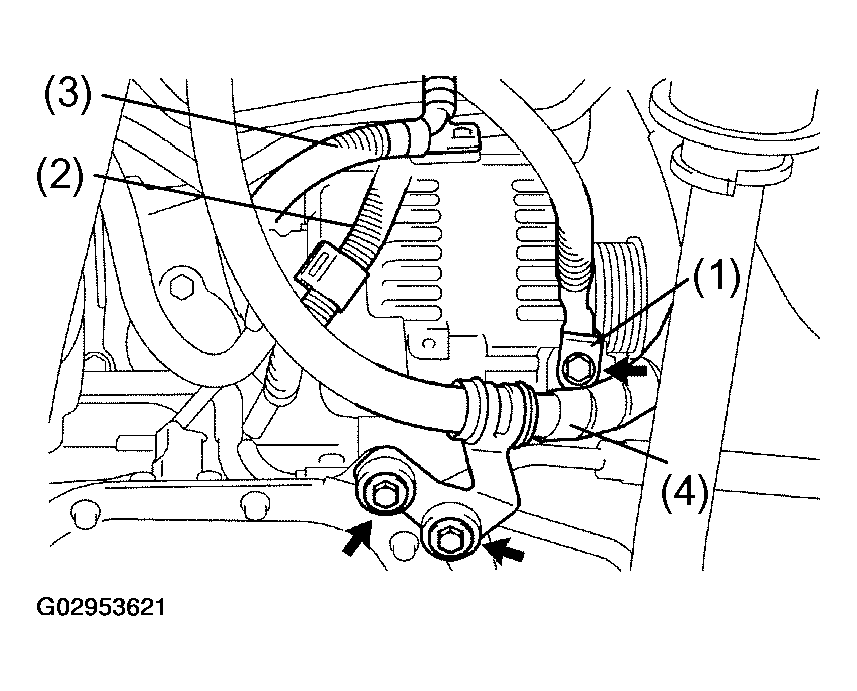

   Fig 2: Installing Parts Of Generator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, install the PS pump pulley with the nut.

SST 09960-10010 (09962-01000, 09963-01000)

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

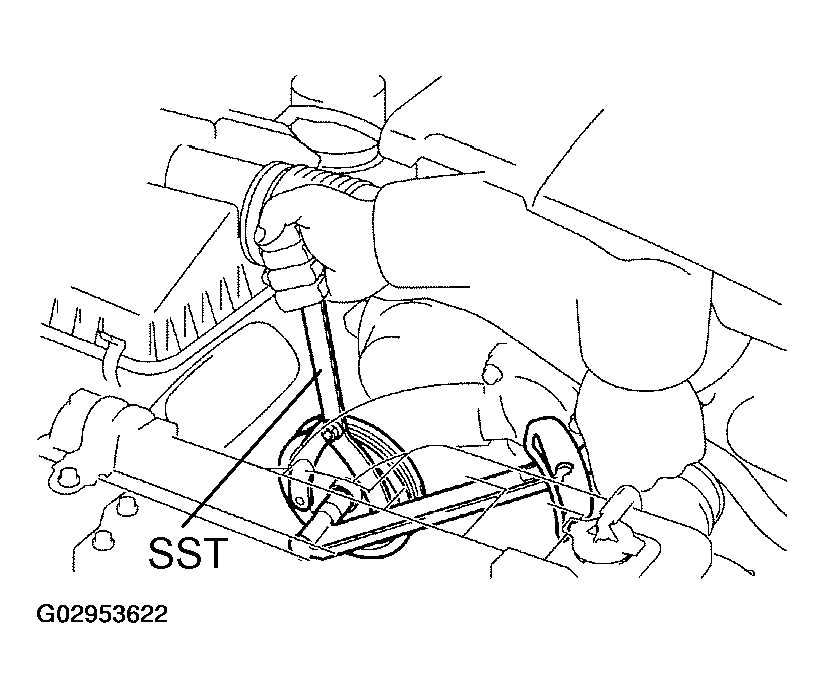

Fig 3: Installing PS Pump Pulley With Nut

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the drive belt by turning the drive belt tensioner counterclockwise.

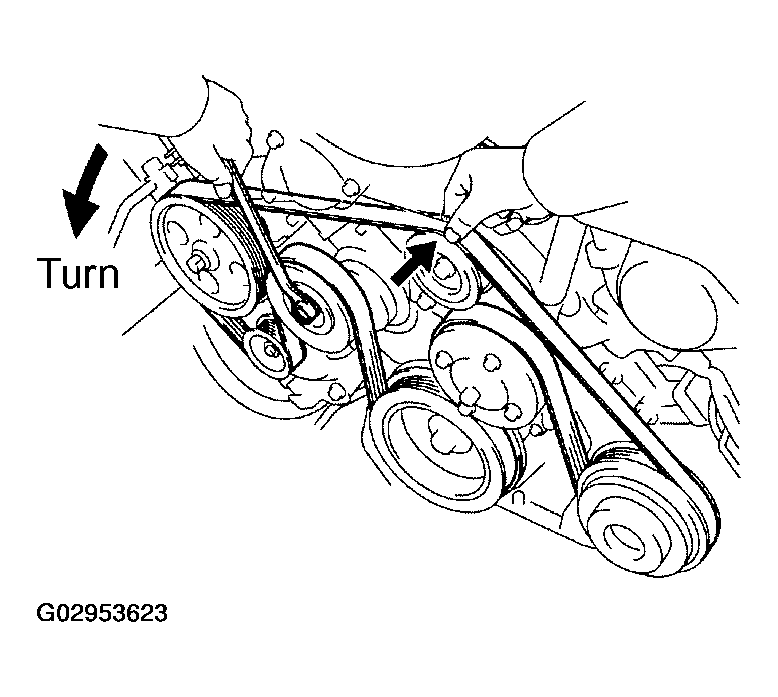

Fig 4: Installing Drive Belt By Turning Drive Belt Tensioner Counter Clockwise

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The tensioner pulley bolt has a left-hand thread.
