Combination Meter - Diagnostics
›
Problem Symptoms Table
›
Indicator Light And Warning Light:
Indicator Light And Warning Light:

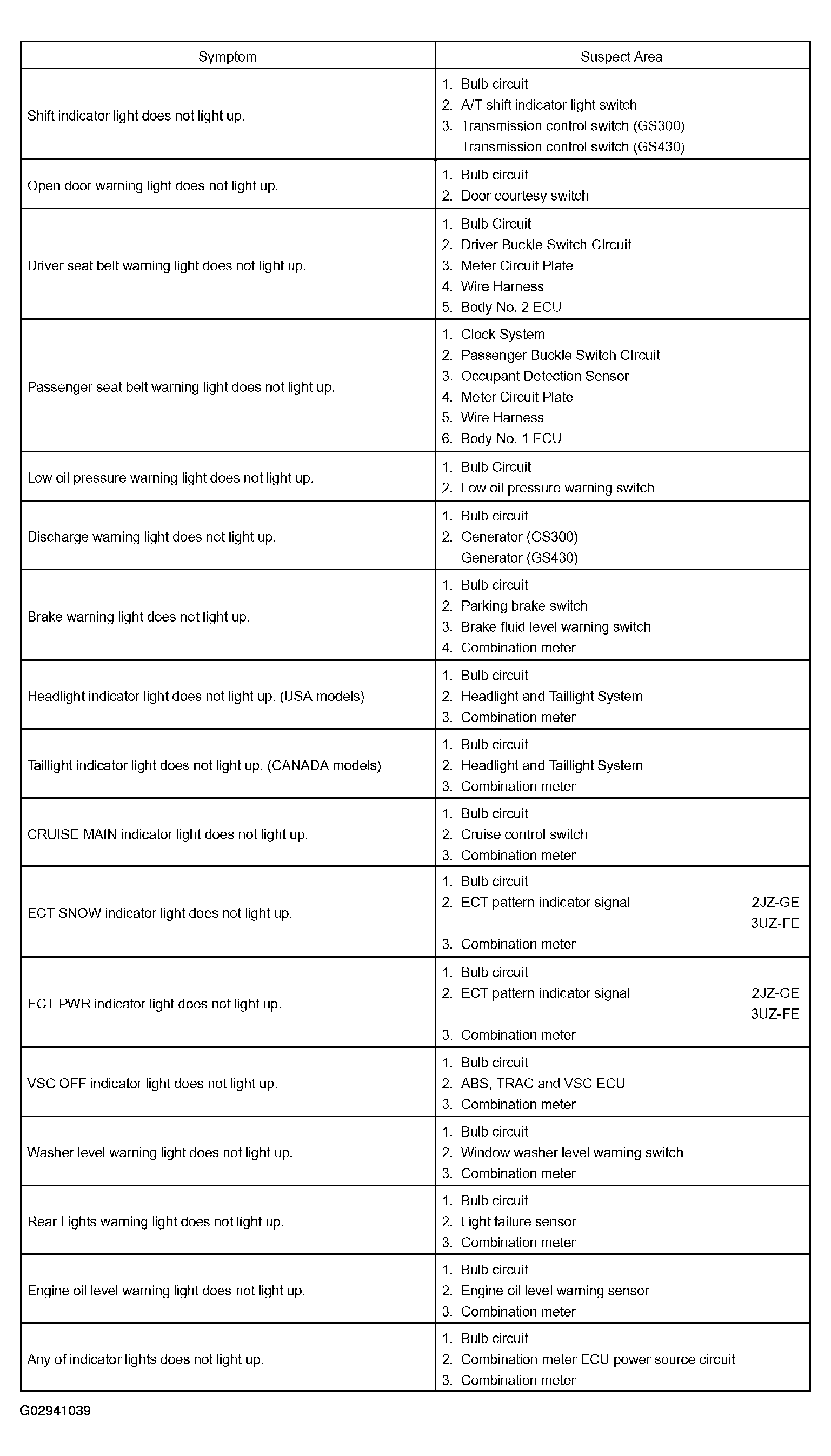

Fig 1: Indicator Light And Warning Light Problem Symptom Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
