Combination Meter: Components

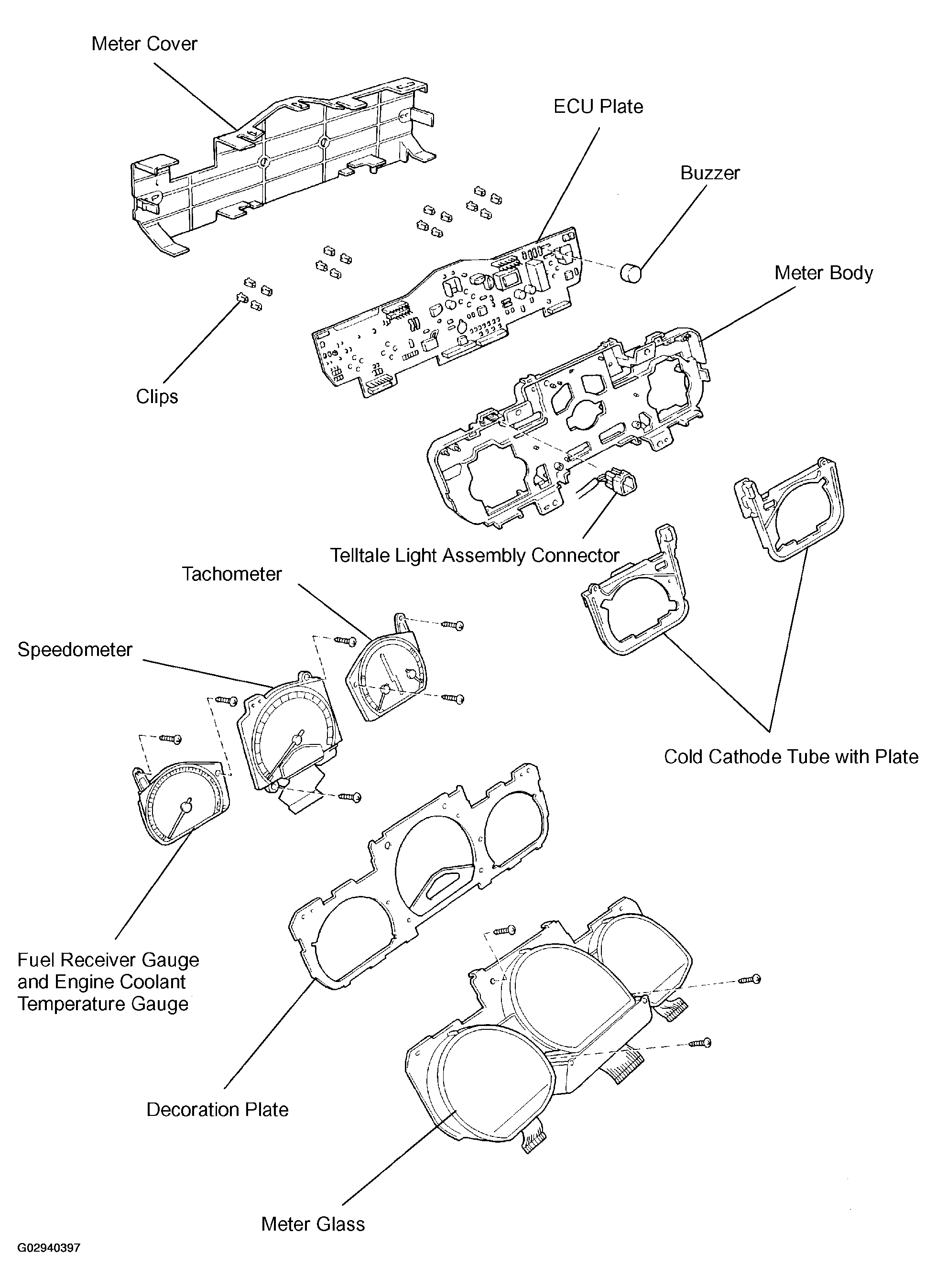

Fig 1: Identifying Combination Meter Components
G02940397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
