Fuel Tank And Line: Components

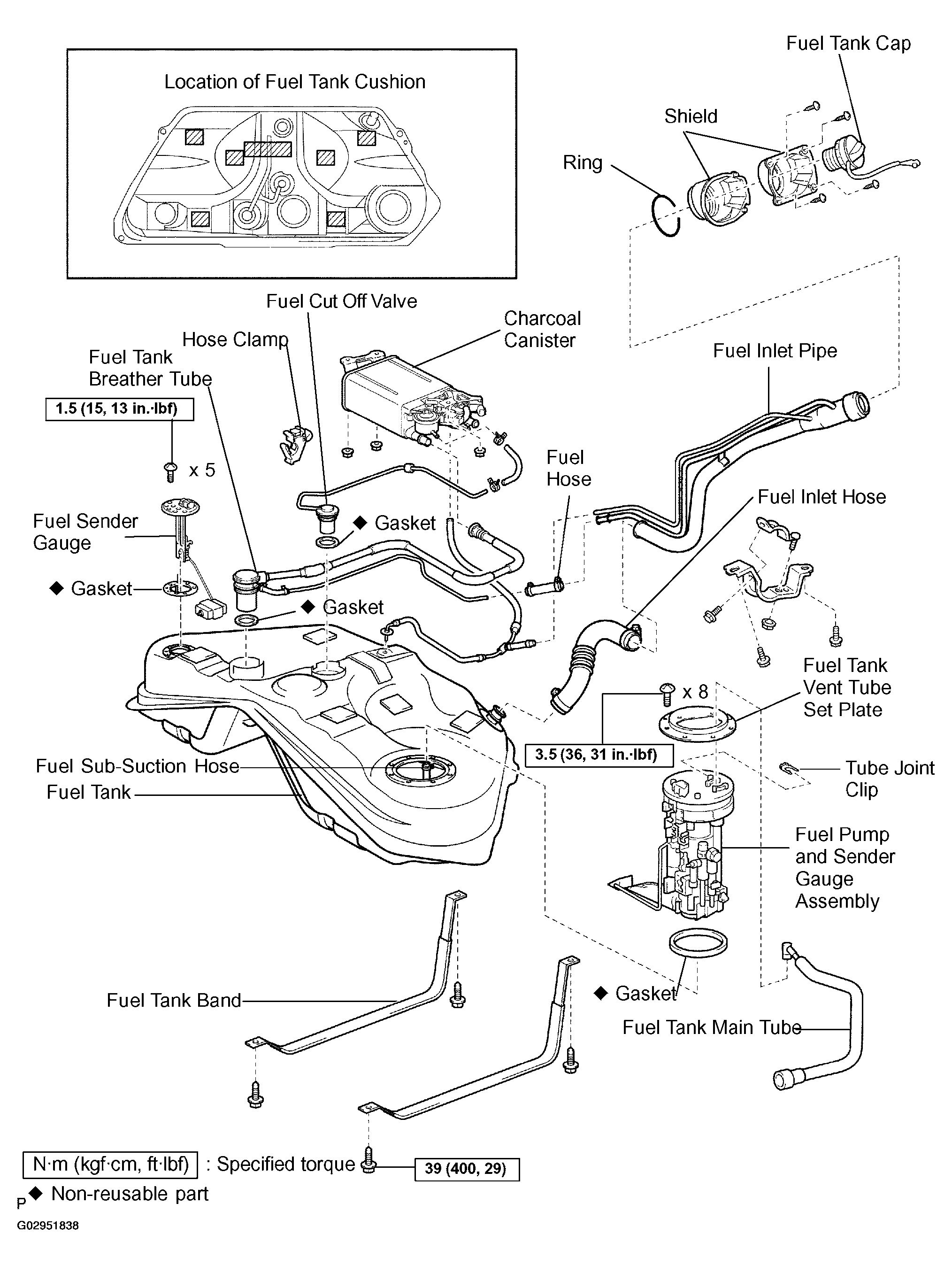

Fig 1: Identifying Components Of Fuel Tank And Line

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAUTION:

• Always use new gaskets when replacing the fuel tank or component parts.
• Apply the proper torque to all parts tightened
