Knock Sensor: Components

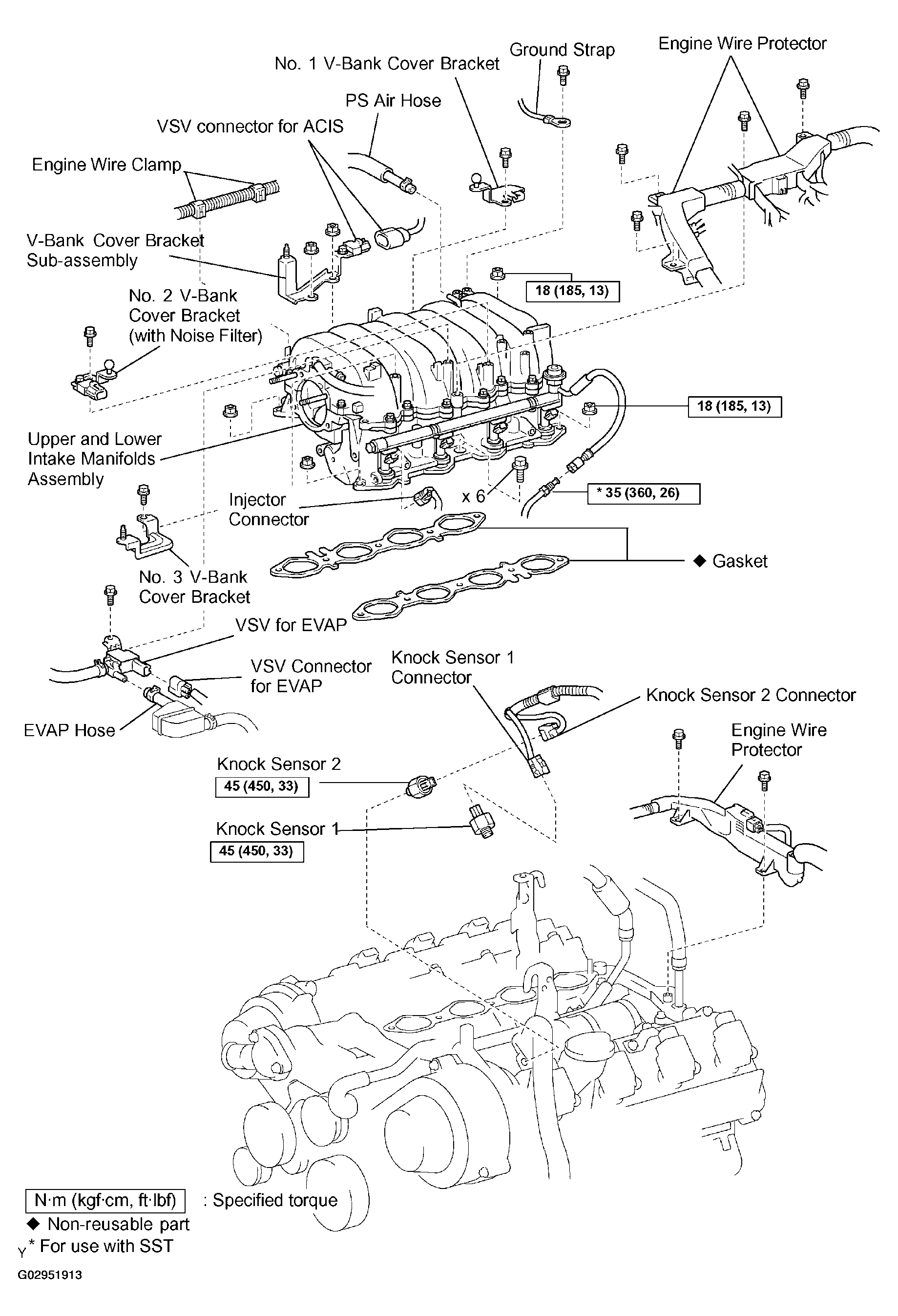

Fig 1: Exploded View Of Knock Sensor & Torque Specifications (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Knock Sensor & Torque Specifications (2 of 2)
