Throttle Body: Components

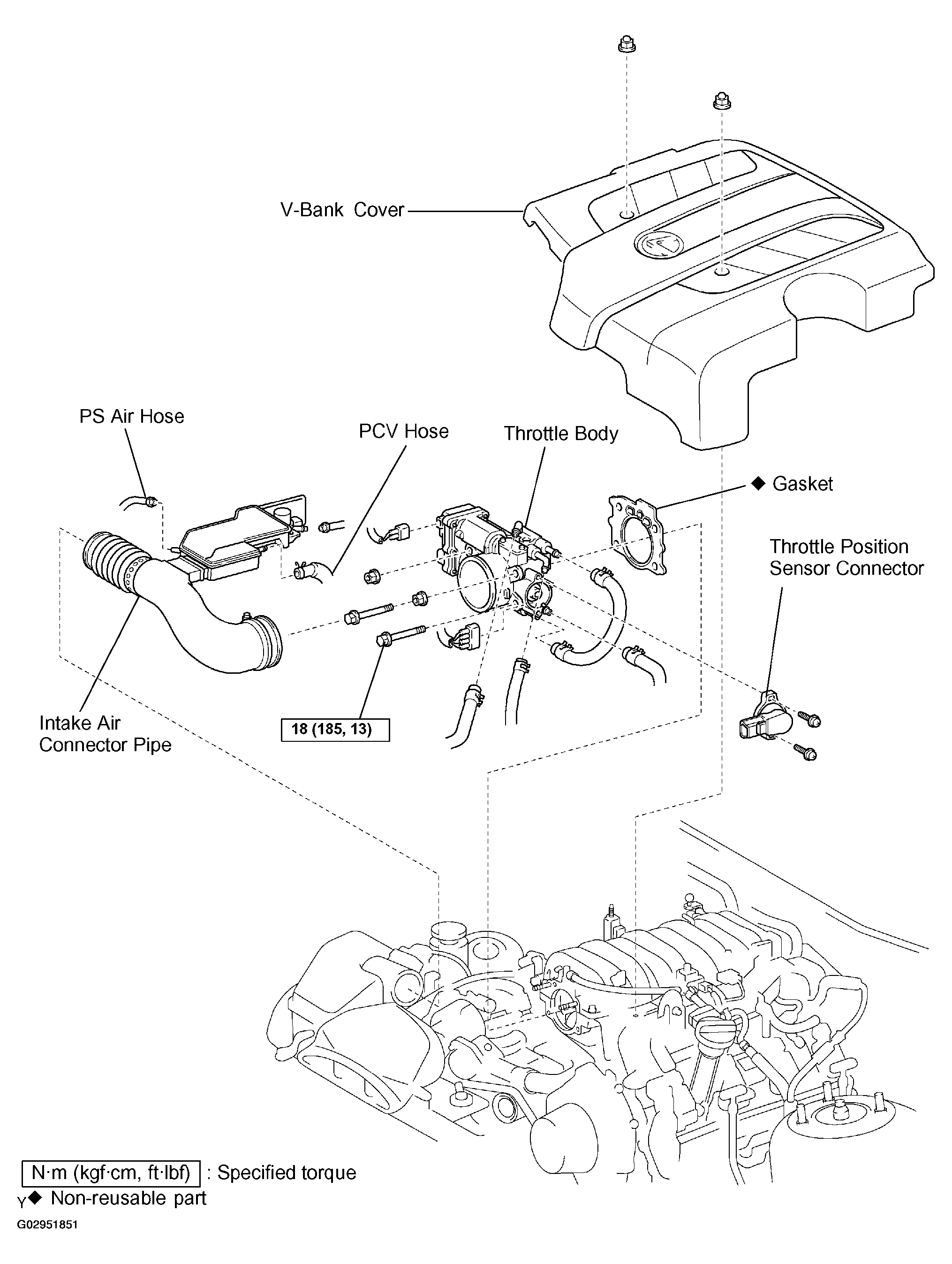

Fig 1: Replacement Components Of Throttle Body With Torque Specifications
G02951851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
