Ignition System - Service Specifications
›
Ignition System (3UZ-FE)
›
Service Data
Service Data

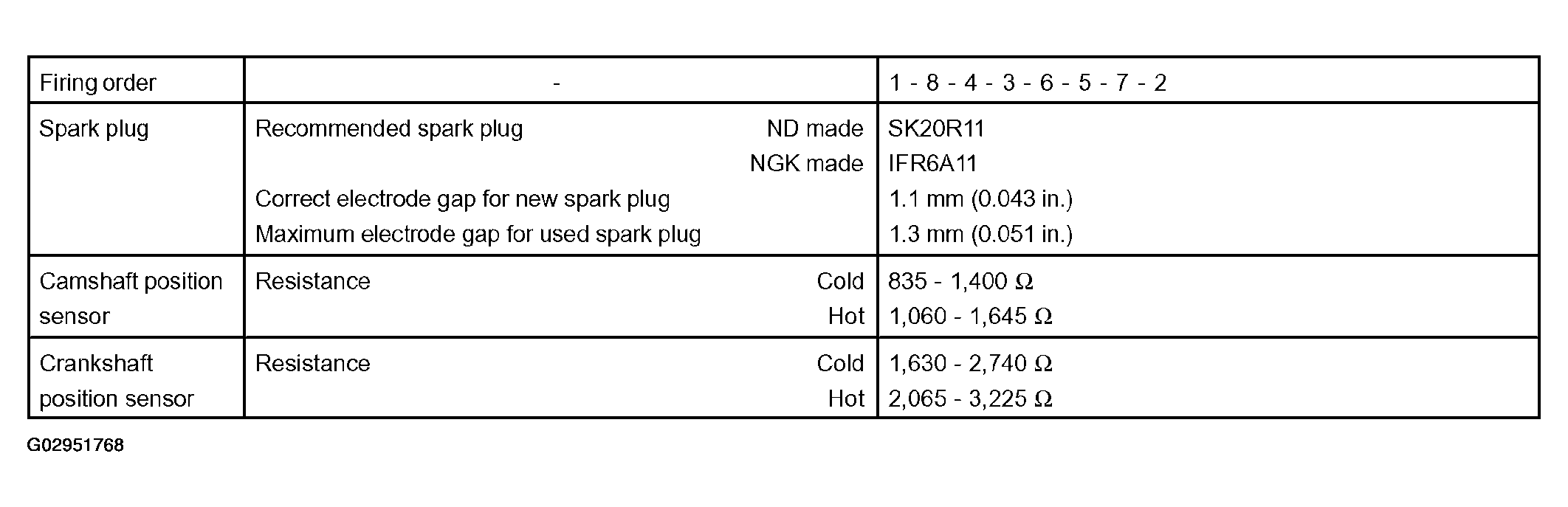

Fig 1: Ignition System Service Specification Chart (3UZ-FE)
