Parts Location

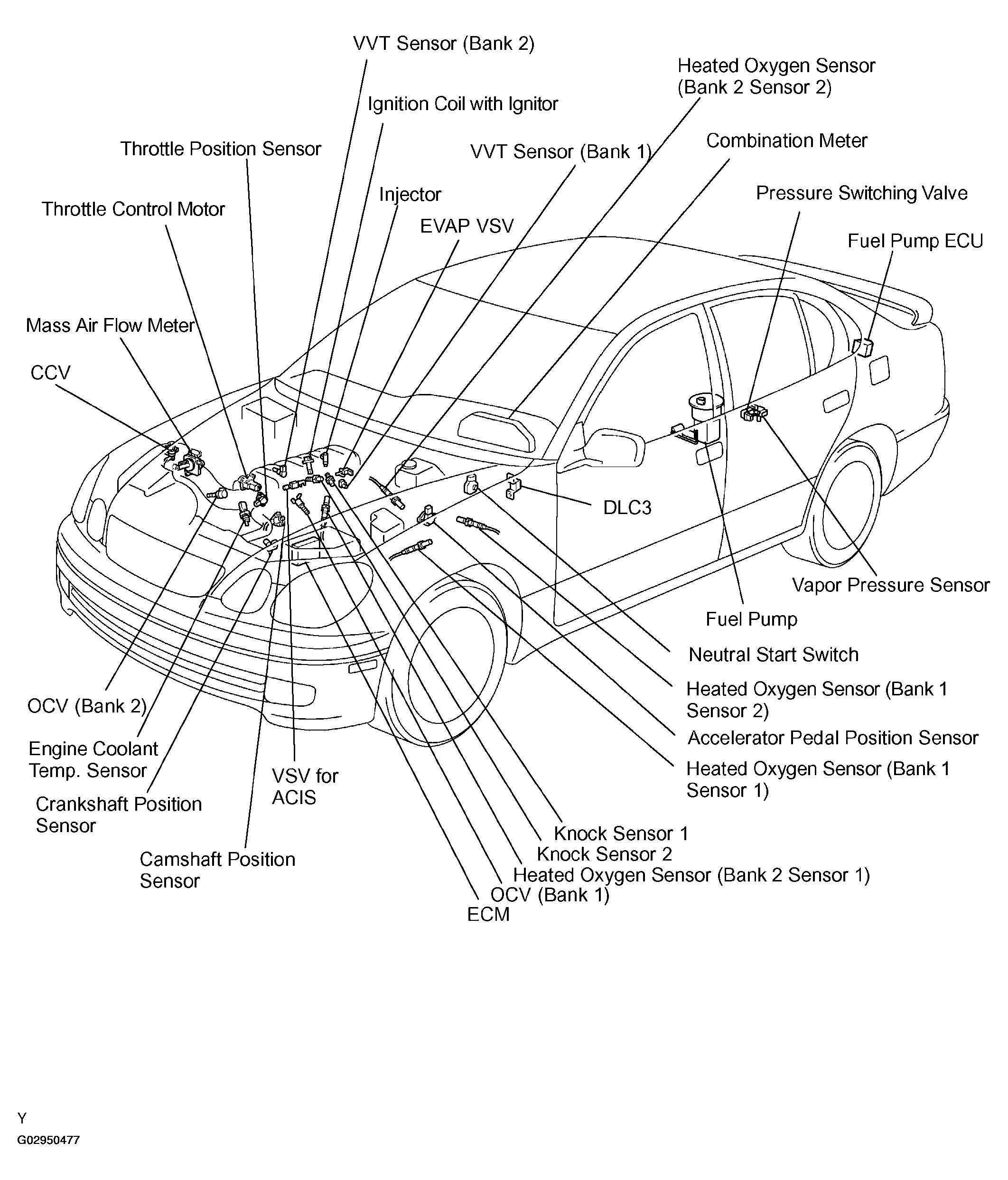

Fig 1: Identifying Location Of Engine Electrical Components
G02950477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
