Vehicle Lift And Support Locations

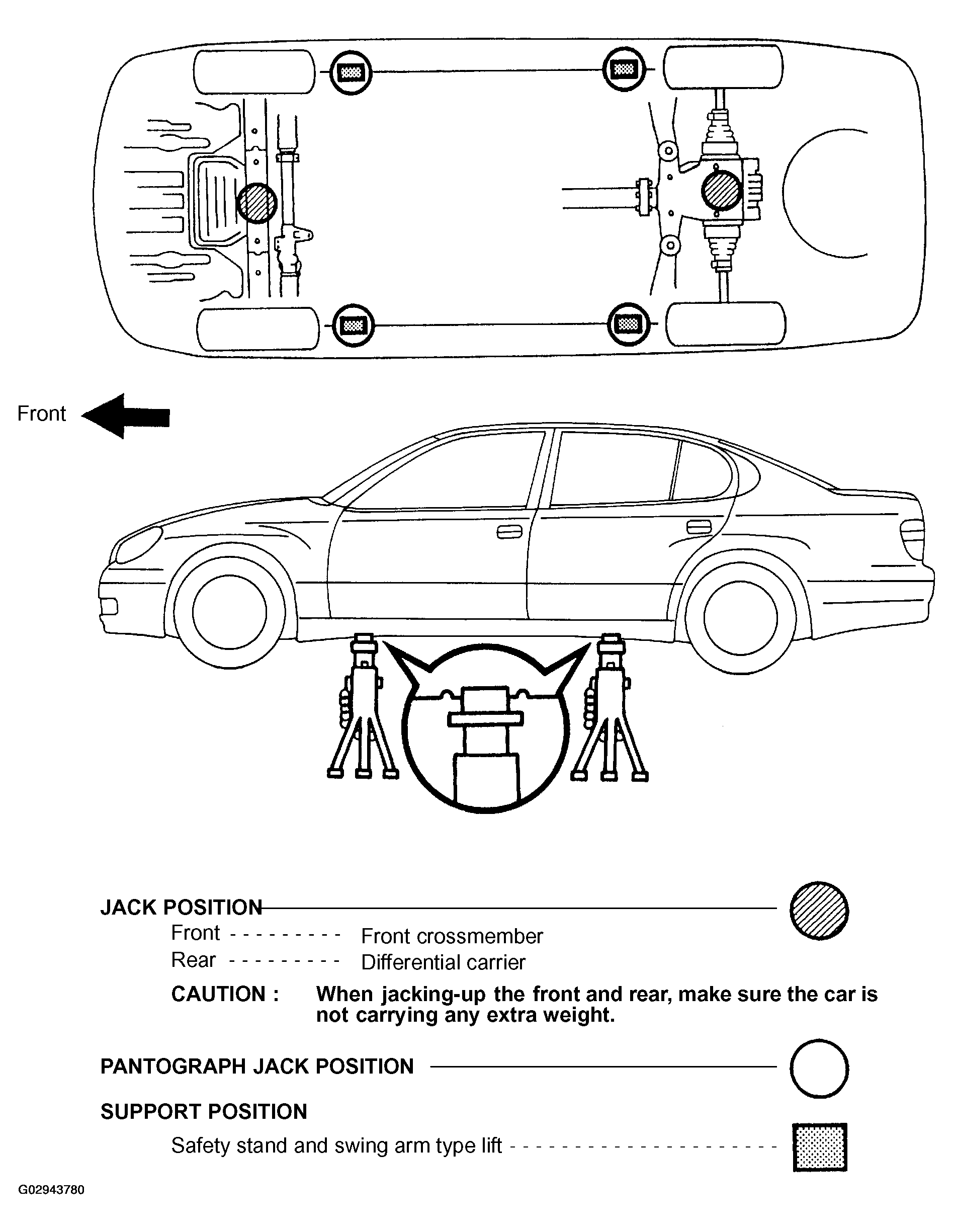

Fig 1: Locating Jack And Support Lifting Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

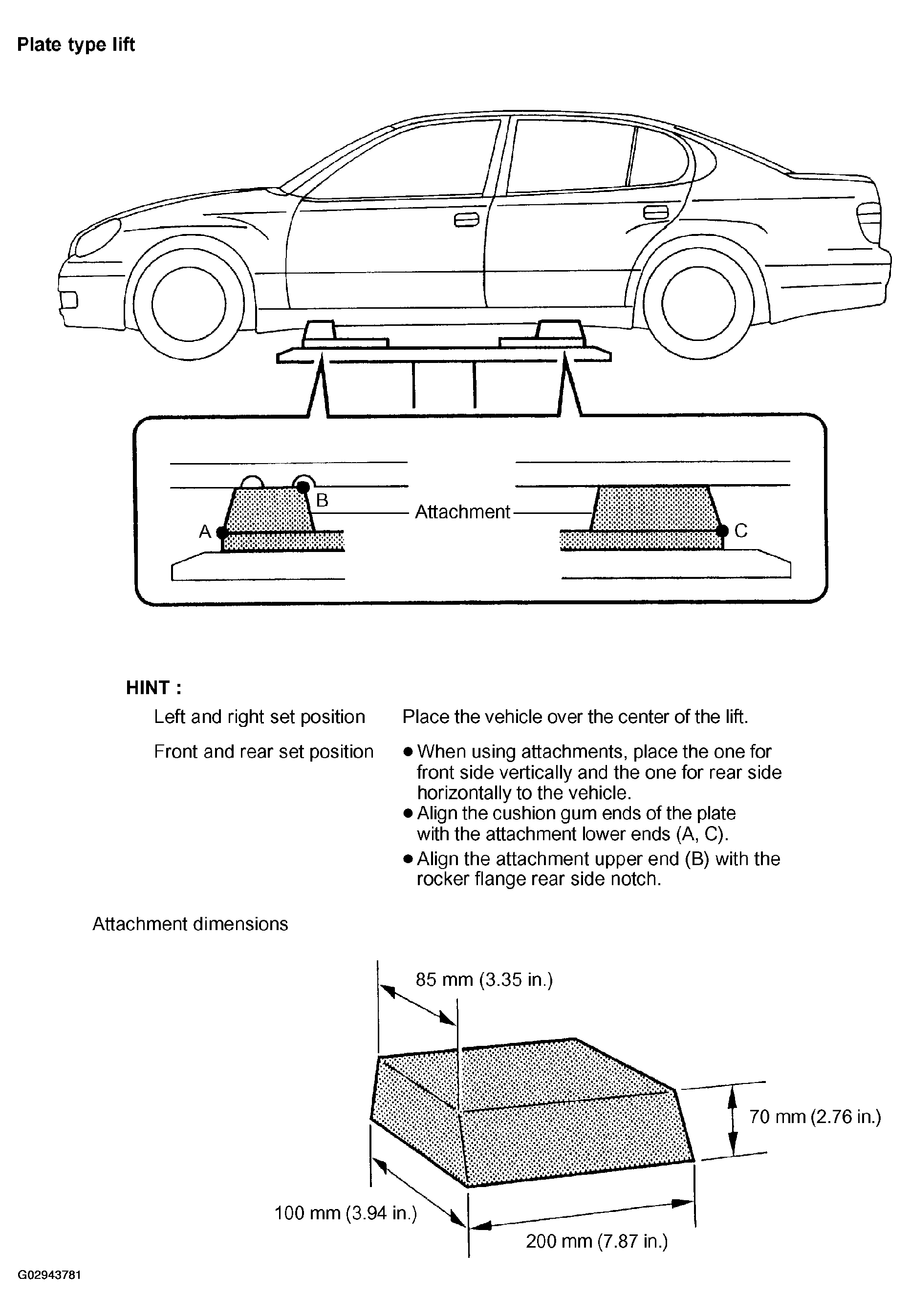

Fig 2: Lifting Vehicle With Plate Type Lift Using Cushion

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
