Service Specifications
›
Cooling System (3UZ-FE)
›
Service Data
Service Data

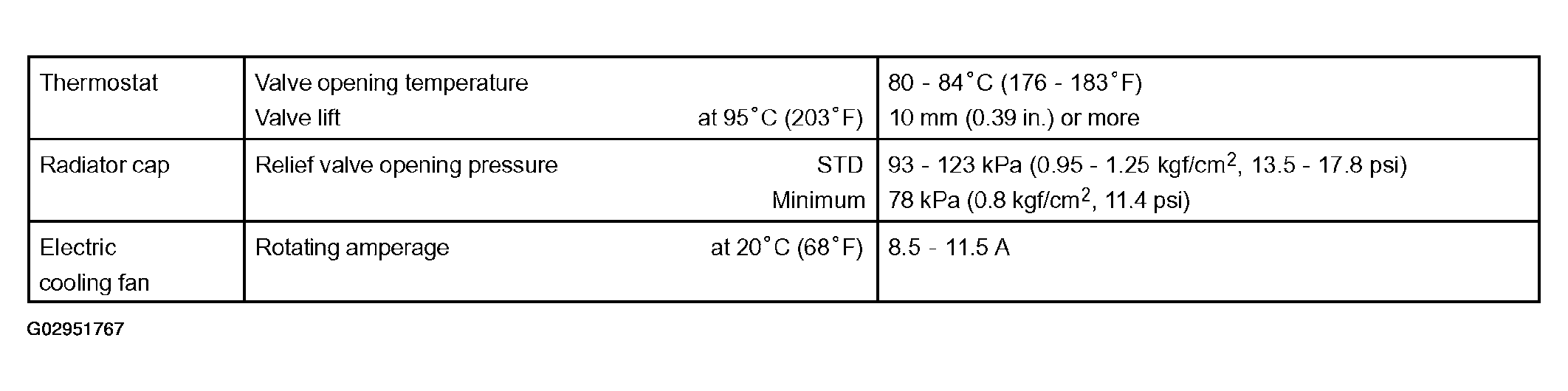

Fig 1: Cooling System - Service Specification Chart (3UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
