Propeller Shaft
›
Service Data
Service Data

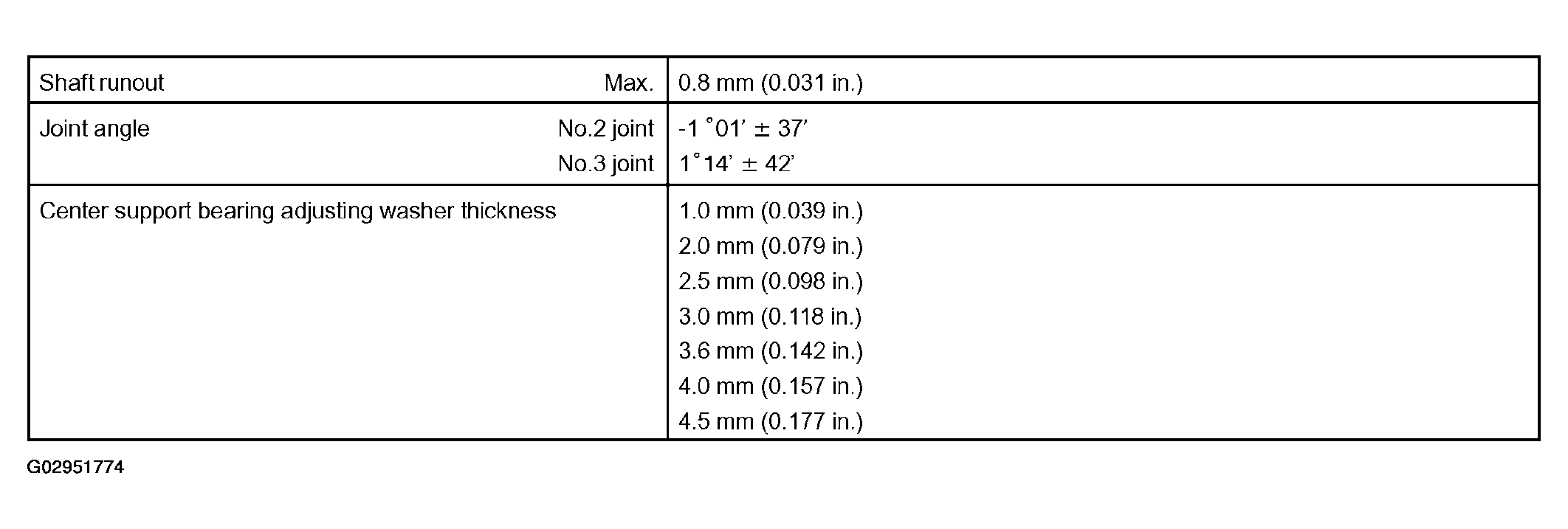

Fig 1: Propeller Shaft Service Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
