Standard Bolt
›
Specified Torque For Standard Bolts
Specified Torque For Standard Bolts

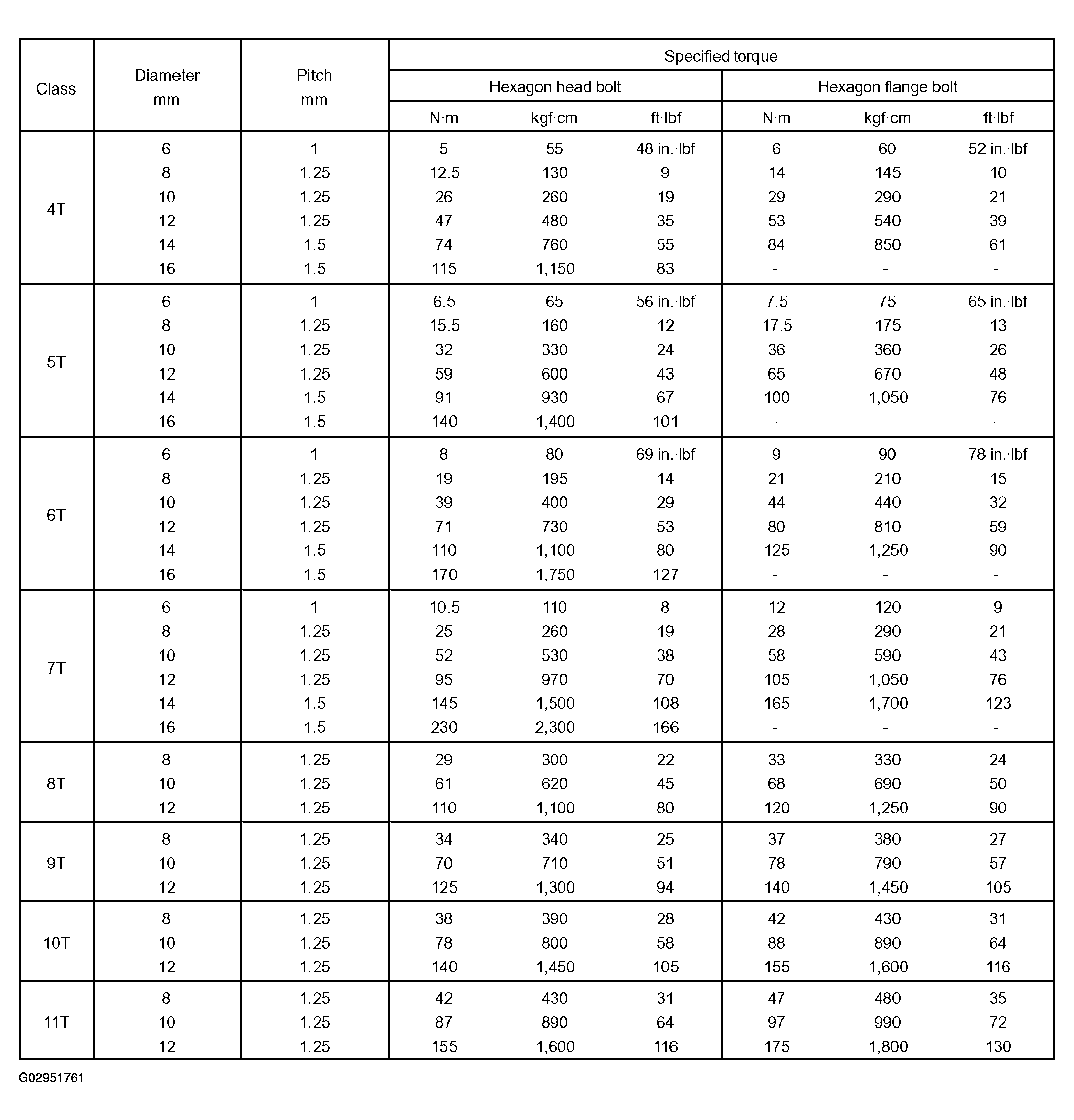

Fig 1: Standard Bolts Specified Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
