Front Axle Hub: Components

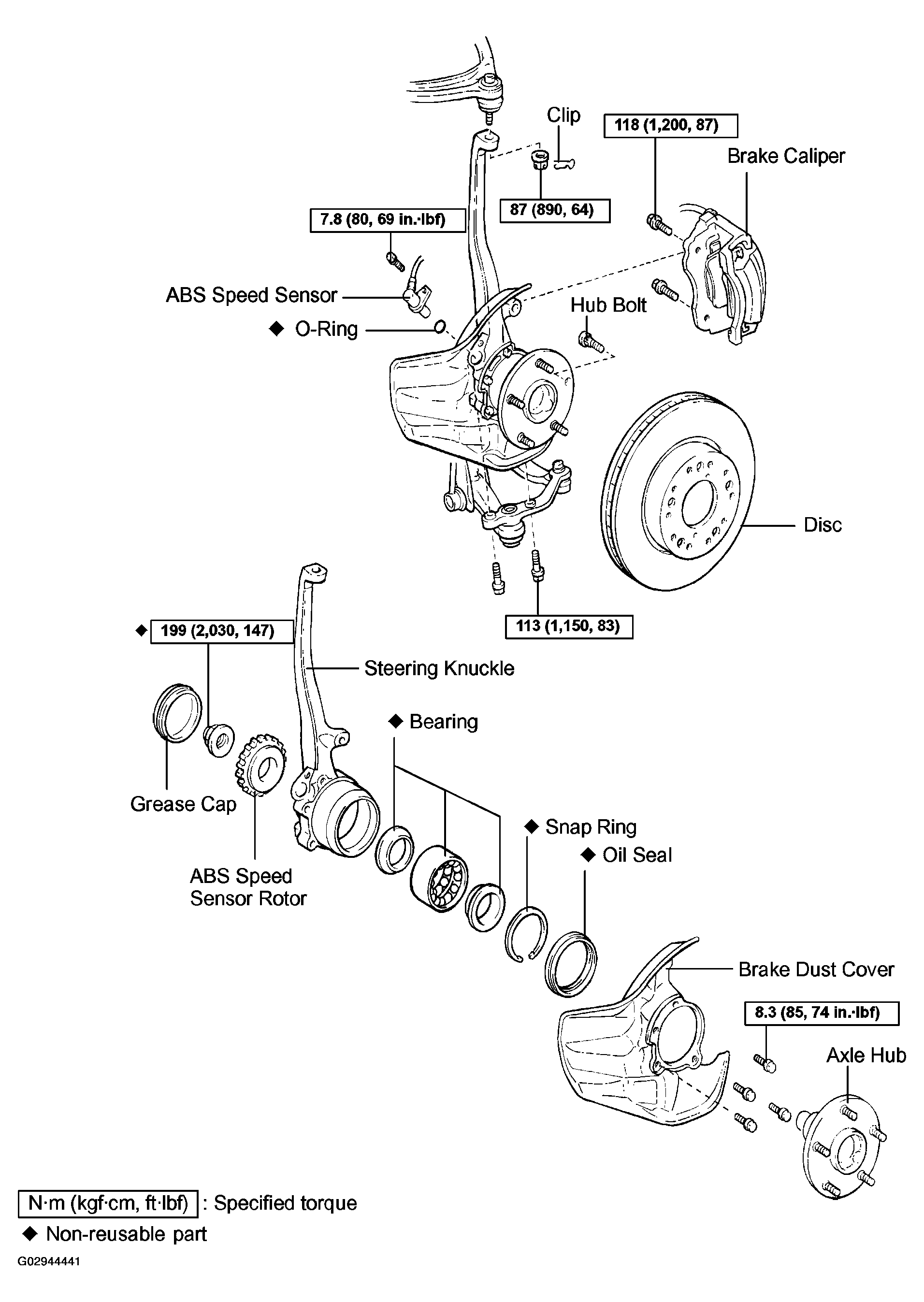

Fig 1: Front Axle Hub Replacement Components With Torque Specifications
G02944441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
