Front Shock Absorber: Components

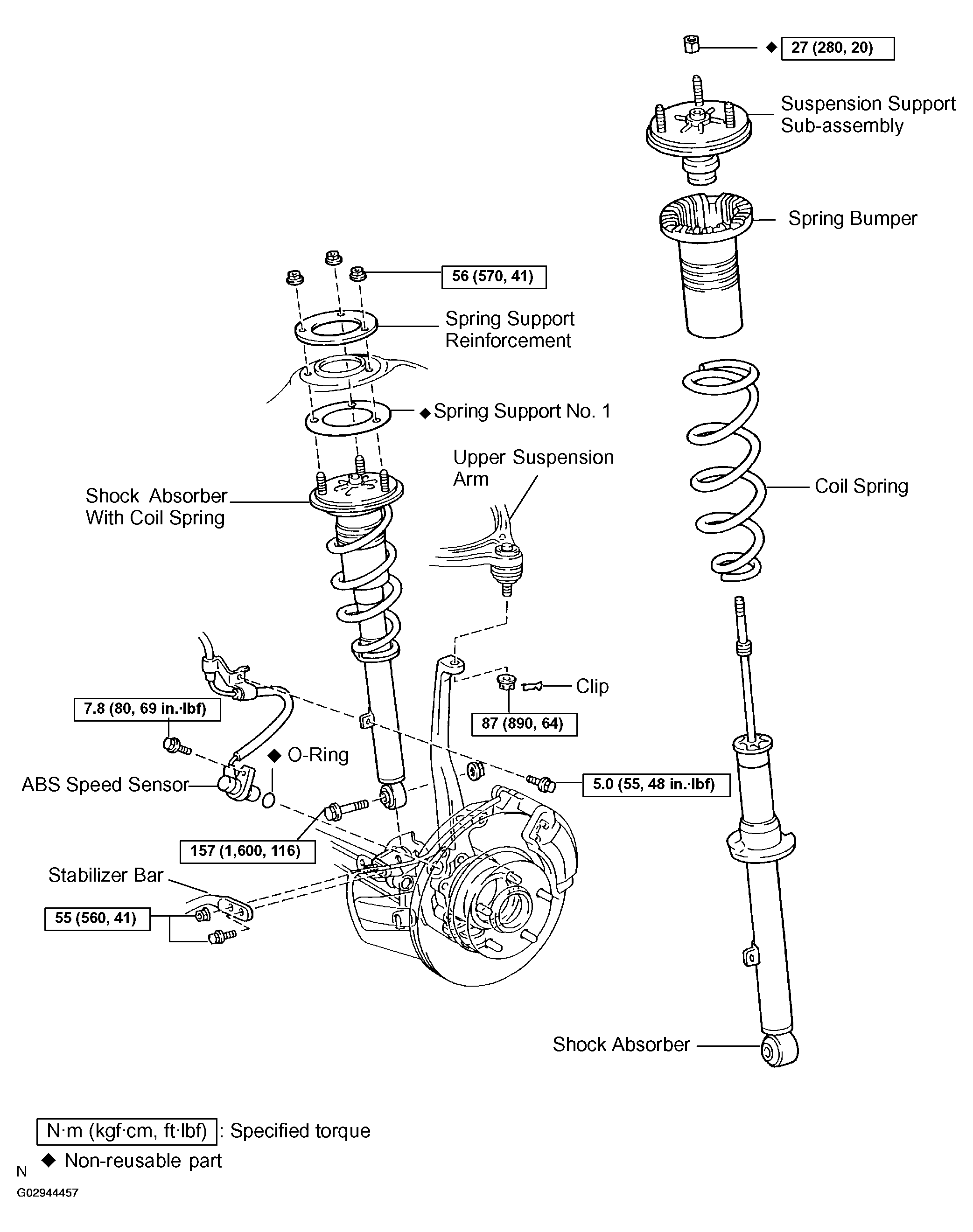

Fig 1: Shock Absorber Replacement Components With Torque Specifications

G02944457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
