Floor Shift Assembly: Components

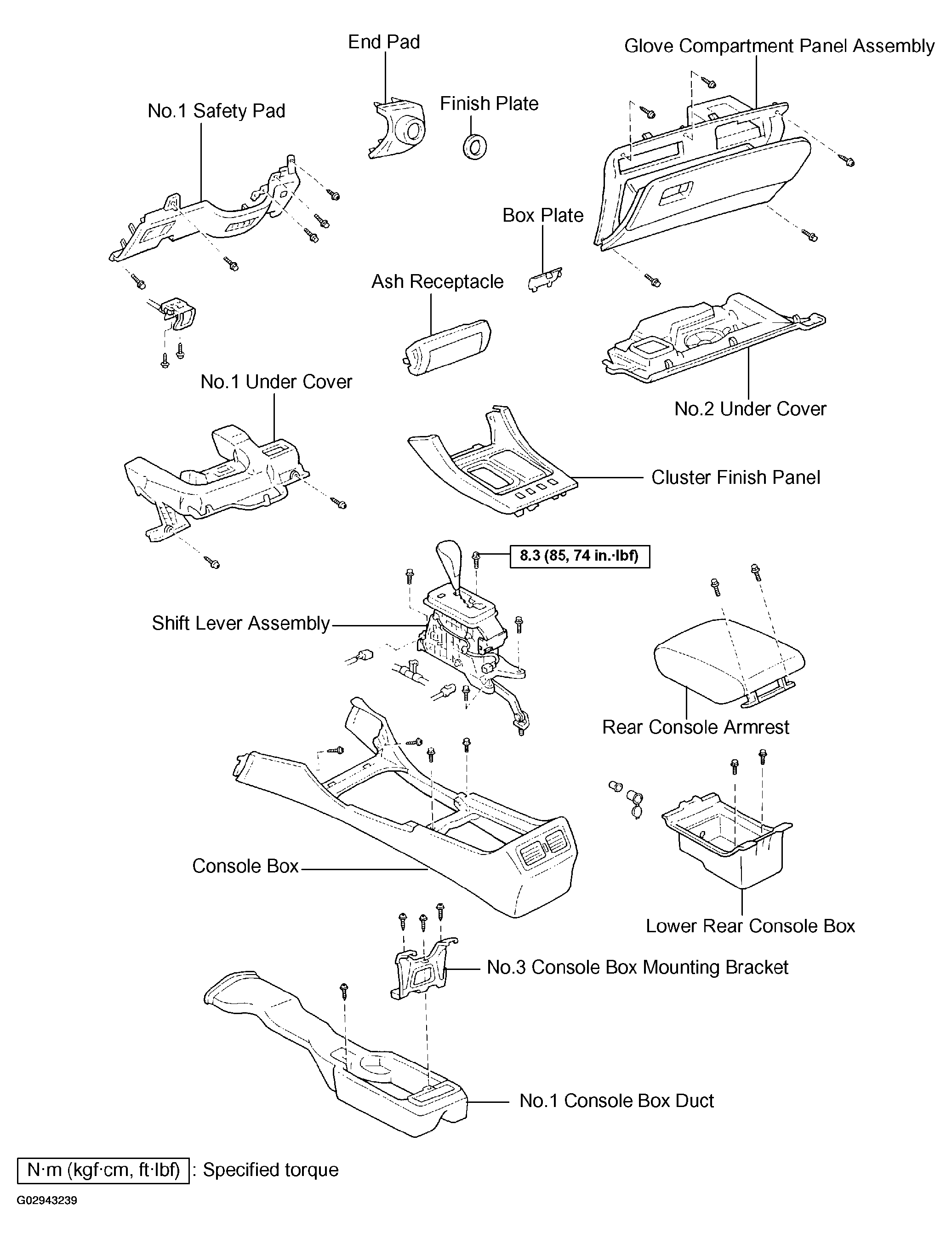

Fig 1: Floor Shift Assembly Replacement Components & Torque Specifications Table (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Floor Shift Assembly Replacement Components & Torque Specifications Table (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

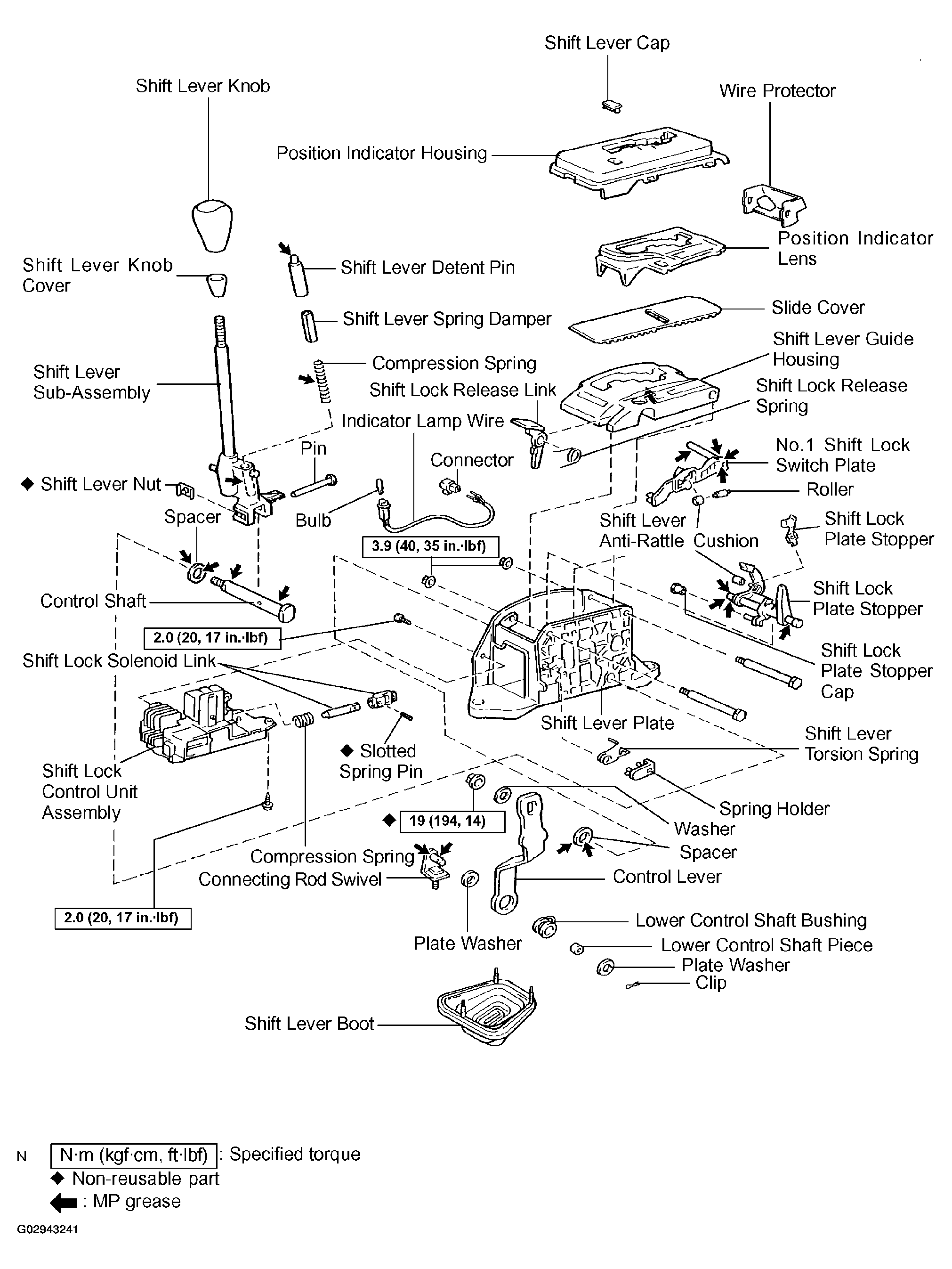

Fig 3: Floor Shift Assembly Replacement Components & Torque Specifications Table (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
