Automatic Transmission - Diagnostics
›
Problem Symptoms Table
›
Chapter 1: Electronic Circuit Matrix Chart
Chapter 1: Electronic Circuit Matrix Chart

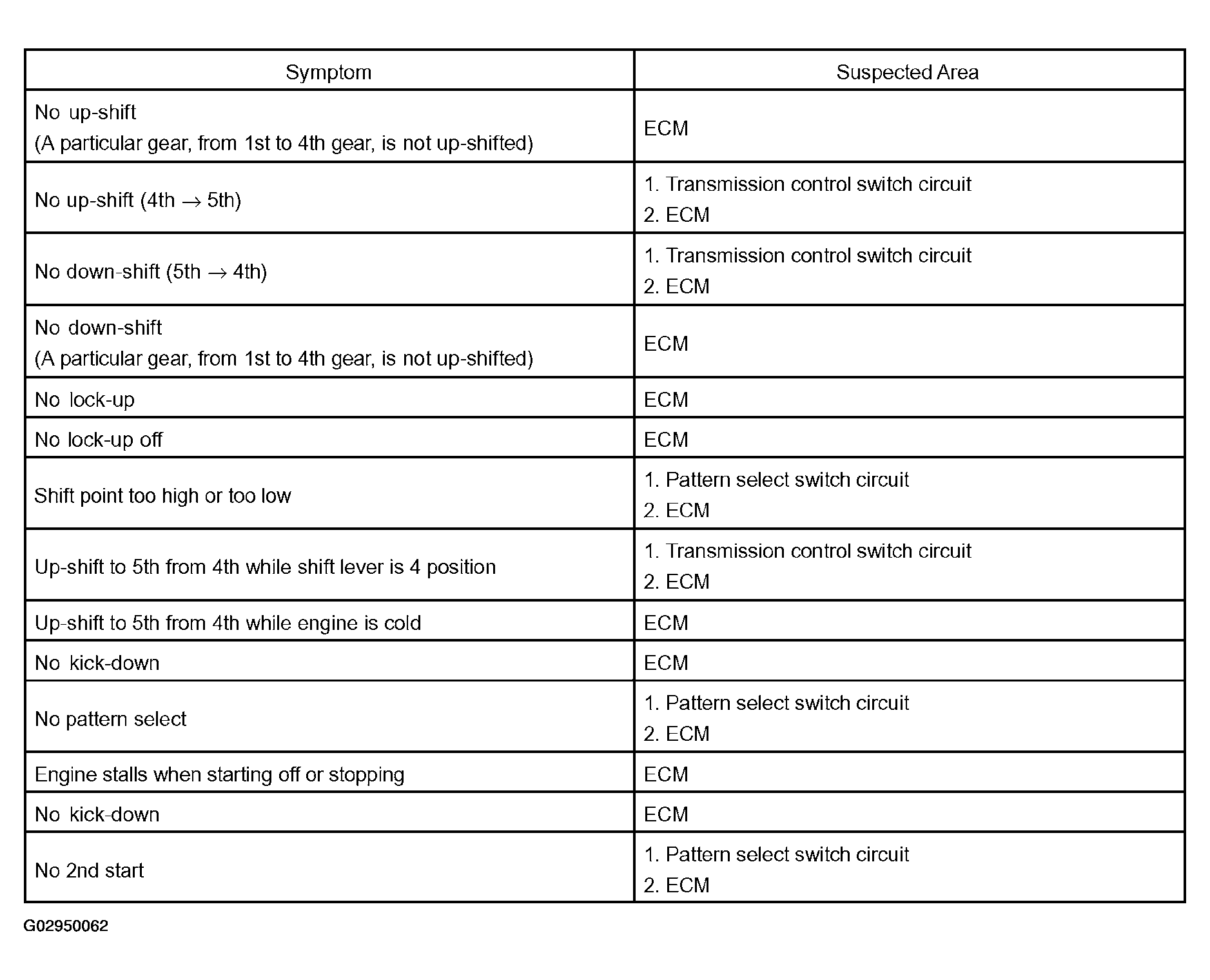

Fig 1: Chapter 1: Electronic Circuit Matrix Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
