Automatic Transmission - Diagnostics
›
Problem Symptoms Table
›
Chapter 3: Off-Vehicle Repair
Chapter 3: Off-Vehicle Repair
(*: See
OVERHAUL - A650E
article)

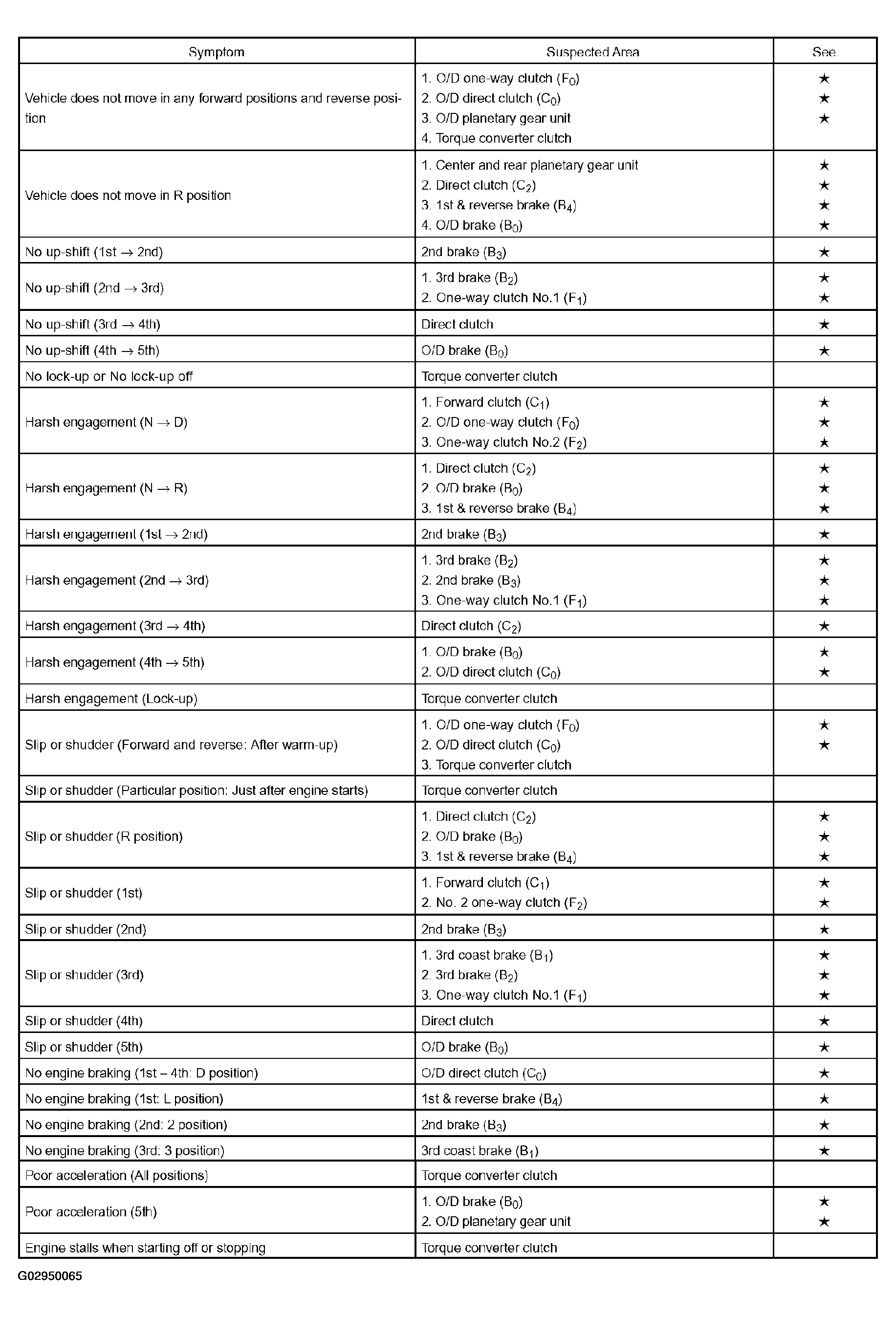

Fig 1: Chapter 3: Off-Vehicle Repair Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
