(Door / Hatch): Hood: Components

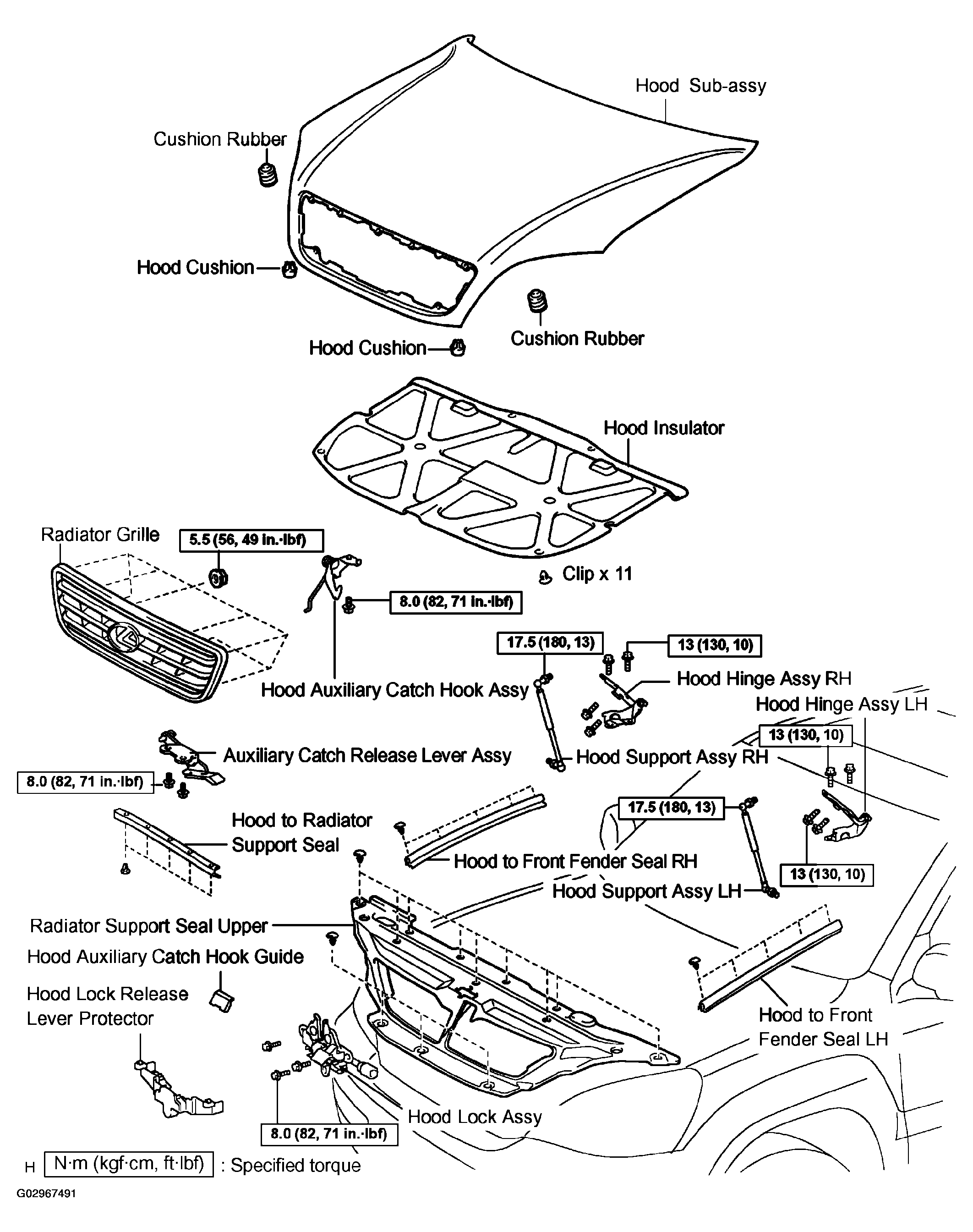

Fig 1: Identifying Engine Hood/Door Components

G02967491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
