Auto Up/Down Function Does Not Operate At Passenger Side
›
Wiring Diagram
Auto Up/Down Function Does Not Operate At Passenger Side: Wiring Diagram

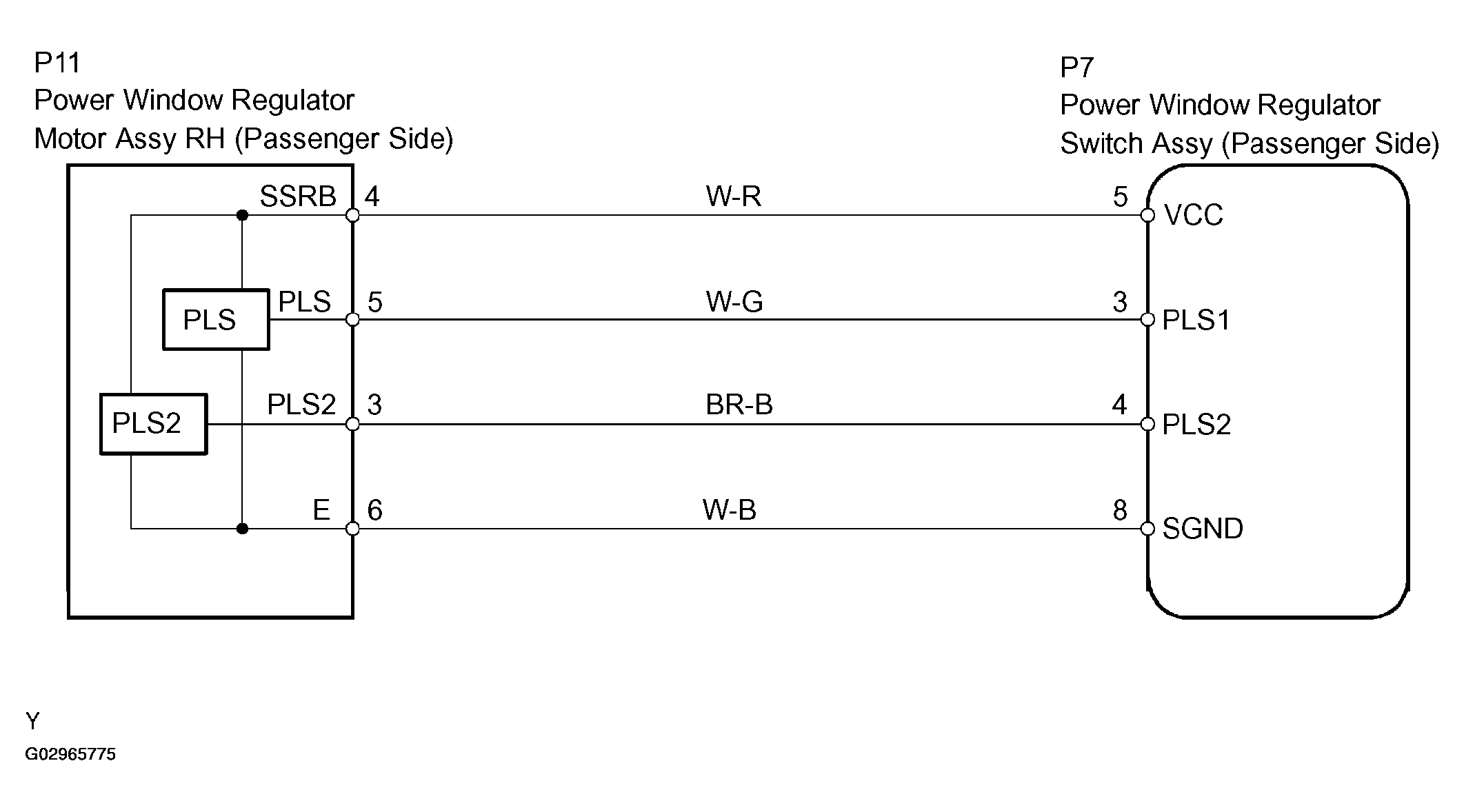

Fig 1: Auto Up/Down Function Does Not Operate At Passenger Side Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
