Power Window Control System - Diagnostics
›
Auto Up/Down Function Does Not Operate At Rear RH
›
Wiring Diagram
Auto Up/Down Function Does Not Operate At Rear RH: Wiring Diagram

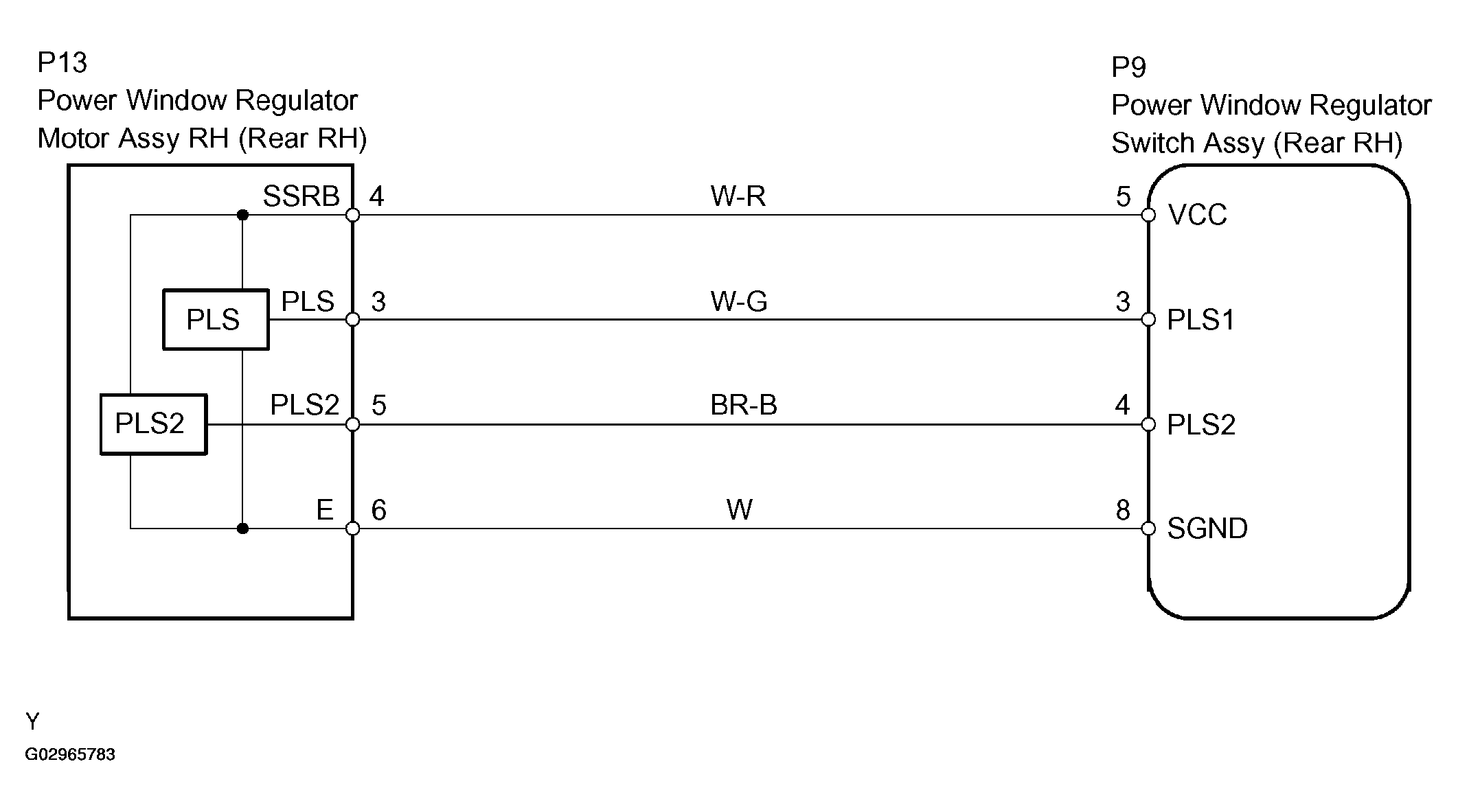

Fig 1: Auto Up/Down Function Does Not Operate At Rear RH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
