Power Window Control System - Diagnostics
›
Diagnostic Trouble Code Table
Diagnostic Trouble Code Table

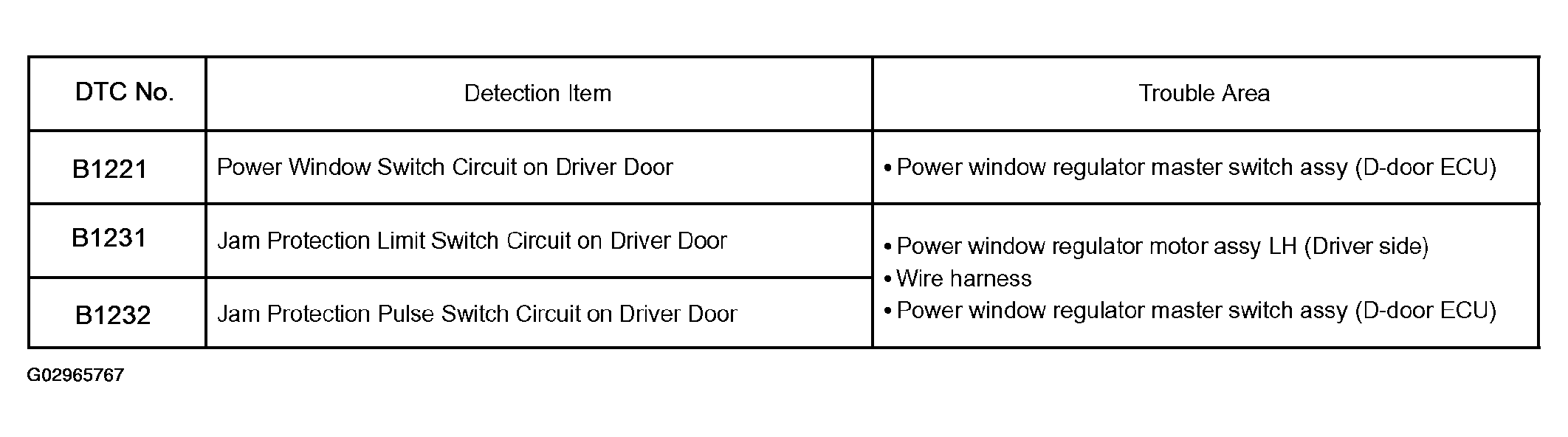

Fig 1: Diagnostic Trouble Code Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
