Power Window Control System - Diagnostics
›
Manual Up/Down Function Does Not Operate At Rear LH
›
Wiring Diagram
Manual Up/Down Function Does Not Operate At Rear LH: Wiring Diagram

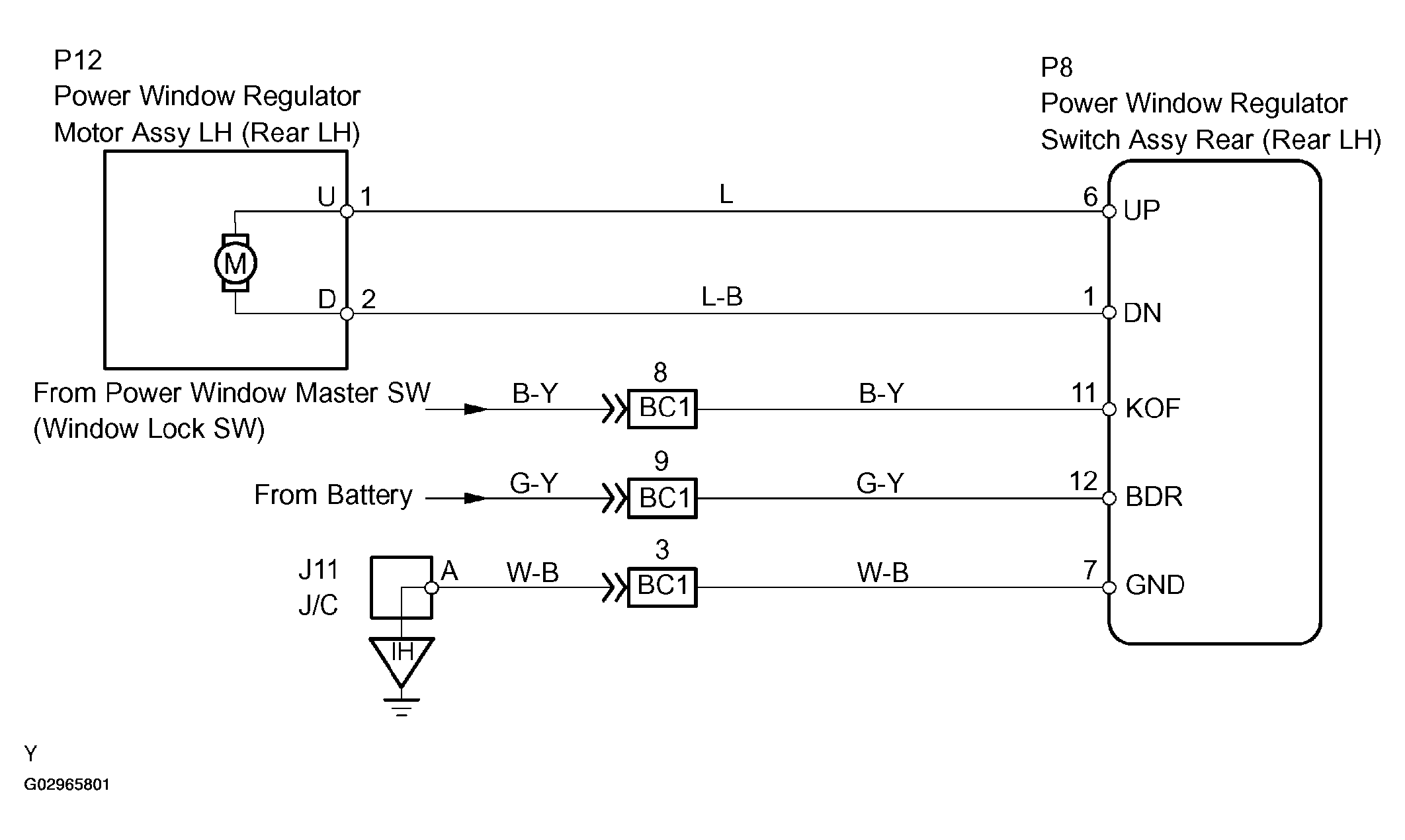

Fig 1: Manual Up/Down Function Does Not Operate At Rear LH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
